Assembly Instructions
17

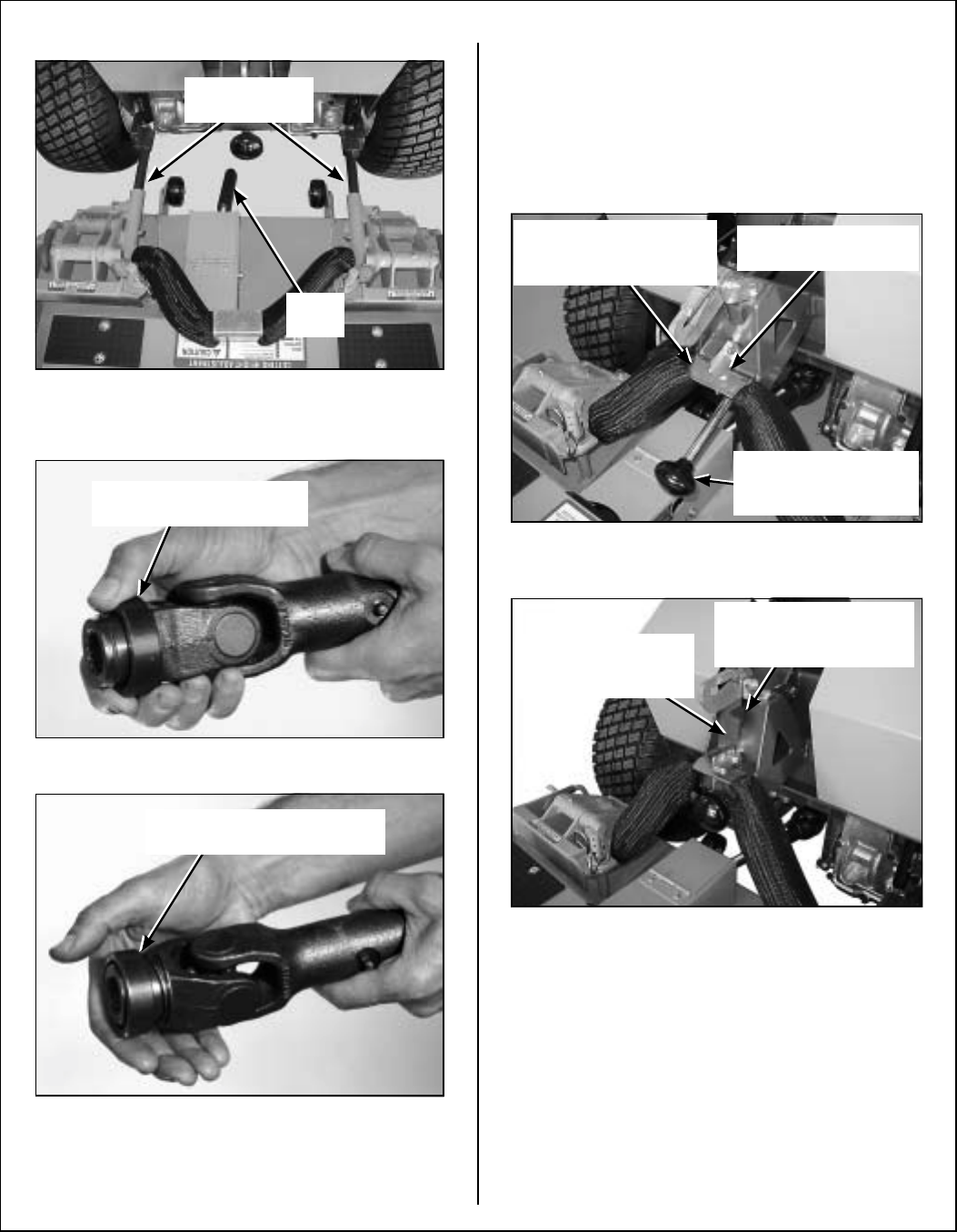

Mower Deck Installation
(PTO Shaft Connection)
Installing PTO Quick Coupler
Coupler Ring “Locked” Position
5. Pull out counterweight spring receptacle assist
handle and lift up on locking finger slightly to
unlock the receptacle assembly. Lower this
assembly toward the deck and attach the coun-
terweight springs to the receptacle. Raise the
assist handle until the assembly locks into the
raised position to tension the springs
Counterweight Spring Receptacle Assembly in
"Unlocked" Position
Counterweight Spring Receptacle Assembly in
"Locked" Position
6. With the counterweight springs connected, the
weight on the deck caster wheels should be
15 to 25 Ib (7 to 11 kg). Check this weight by lift-
ing on the front of the deck carrier frame. If
required, the spring tension can be adjusted by
tightening or loosening the elastic stop nuts
located underneath the lower spring hook.
Grease Deck
Support Arms
PTO
Shaft
Pull Back Spring-Loaded
Coupler Ring
Spring-Loaded Coupler Ring
In Fully Forward Position
3) Use Lever to Assist
Raising Assembly to
"Locked" Position
2) Retain Spring Clip
Using Tab
1) Install Counterweight
Spring Clip
into Receptacle
Locking Finger "Snaps"
to Hold Assembly in
"Locked" Position
Lift Up on Locking
Finger to Lower
Assembly
