© National Instruments Corporation 9 NI RF Signal Generators Getting Started Guide
4. Remove the black plastic connectors from all the captive screws in the
module front panel.
5. Make sure that the ejector handle is in the unlatched (downward)
position.
6. Hold the module by the ejector handle and slide it into an empty slot.
Make sure that the base engages with the guides in the chassis.
7. Slide the module completely into the chassis and latch it by pulling up
on the ejector handle.
8. Tighten the captive screws at the top and bottom of the module front
panel. Performance may suffer if both screws are not tightened
properly.
9. Verify that the PXI chassis fans are operable and free of dust and other
contaminants that may restrict airflow.
10. Cover all empty PXI slots using PXI filler panels or slot blockers
before operating the module.
11. Plug in and power on the PXI chassis.

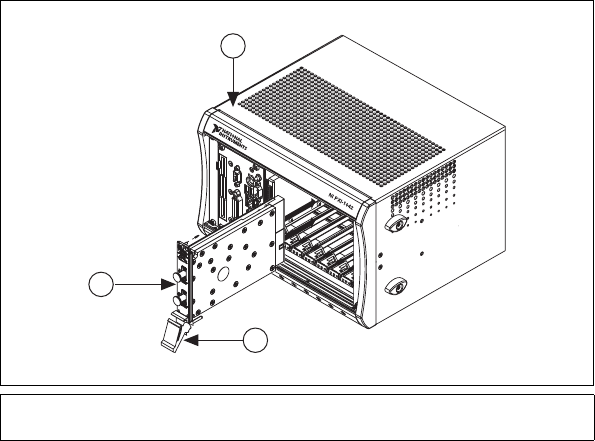

Figure 1 shows the correct installation of a PXI module into a compatible
chassis slot.
Figure 1. PXI Module Installation
1 PXI Chassis
2 NI PXI Module
3 Ejector Handle in Down Position
1
2
3
