© National Instruments Corporation 11 NI RF Signal Generators Getting Started Guide

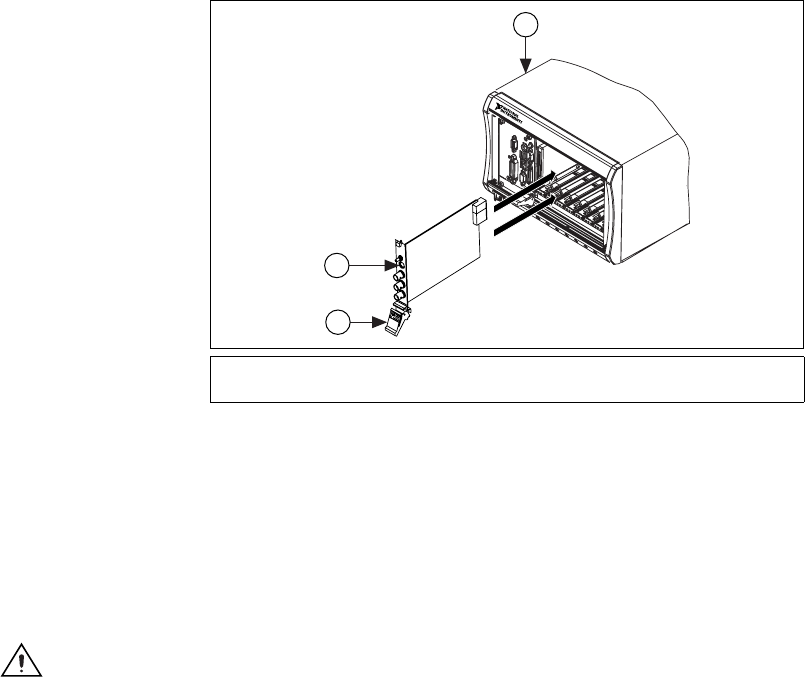

Figure 2 shows the correct installation of a PXI Express module into a
compatible chassis slot.
Figure 2. PXI Express Module Installation
NI 5672
Installation of the NI 5672 hardware requires three vacant slots—two PXI
slots for the NI 5610 upconverter module and one PXIe compatible slot for
the NI 5442 AWG module. The NI 5442 AWG module must be installed
in the slot immediately to the right of the NI 5610 upconverter module to
allow use of the included SMA-to-SMB coaxial cables.
Caution SMA connectors must be connected and tightened before the SMB or AWG
connectors are mated in order to preserve cable life and reduce stress on the SMB
connectors.
1 PXI Express Chassis
2 Ejector Handle in Down Position
3 NI PXI Express Module
3
2
1
