© National Instruments Corporation 23 NI RF Signal Generators Getting Started Guide
Refer to the Installing Toolkits or Add-On Software section and
the NI-RFSG Instrument Driver Readme for more information
about installing the Modulation Toolkit and included examples.
Appendix A: Hardware Front Panel Connectors and
Indicators
This appendix describes the connectors and LED indicators on the front
panels of both NI RF signal generator hardware modules. All input
connectors and output connectors are AC-coupled.
NI 5610 RF Upconverter Module
The NI 5610 RF upconverter module front panel contains six connectors
and two multicolor LEDs, as shown in Figure 8.

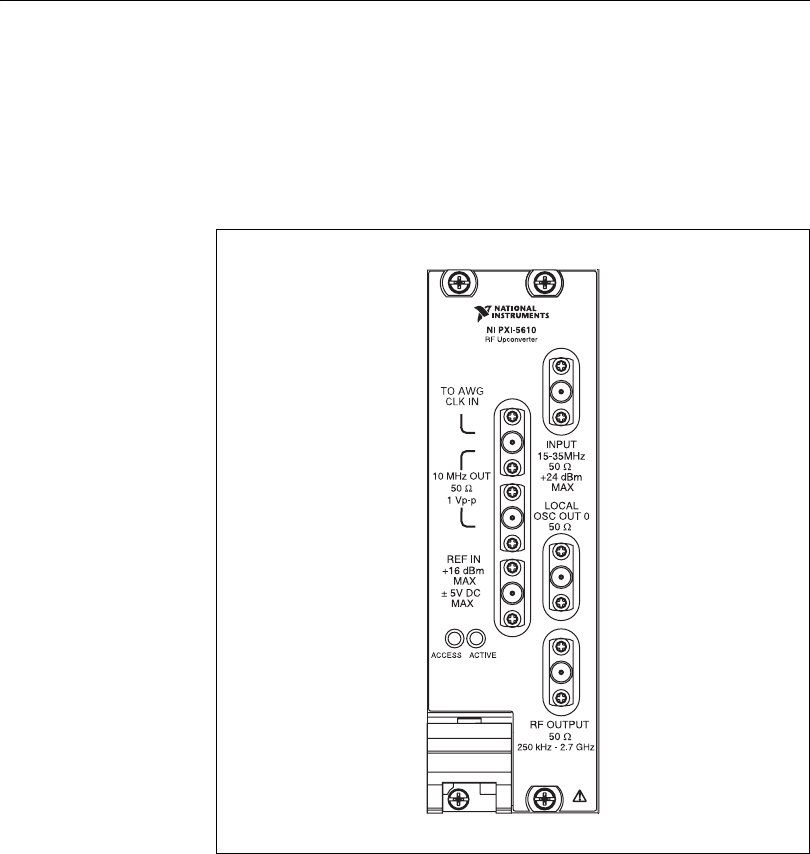

Figure 8. NI 5610 Upconverter Module Front Panel
