NI RF Signal Generators Getting Started Guide 12 ni.com

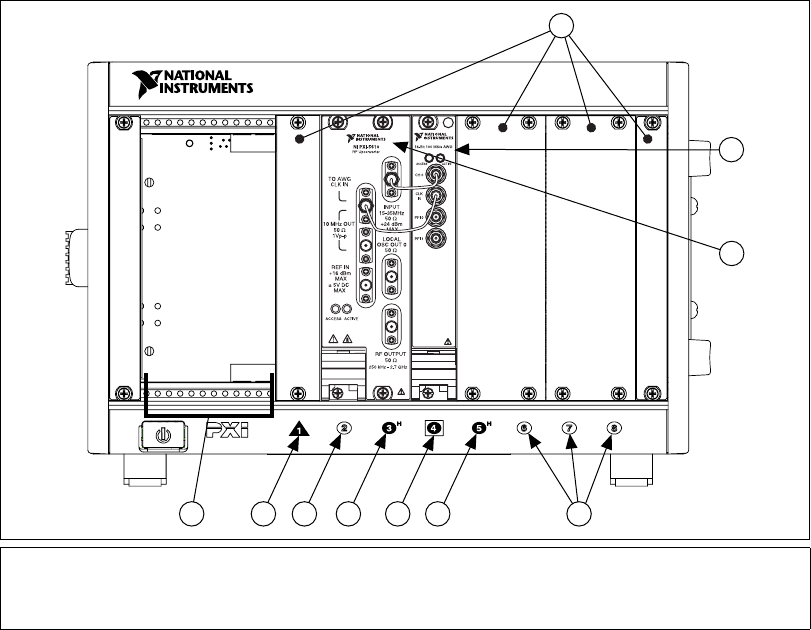

Figure 3 and Figure 4 show the two possible slot configurations for
the NI 5672 module in an 8-slot PXI Express chassis.
Figure 3. NI 5672 Module in Slots 2, 3, and 4
1 System Controller Expansion Slots
2 PXI Express System Controller Slot
3 PXI Peripheral Slots
4 PXI Express Hybrid Peripheral Slots
5 PXI Express System Timing Slot
6 NI PXI-5610 Module
7 NI PXIe-5442 Module
8 PXI Filler Panels
NI PXIe-1062Q
2
6
3
3 4 5
4
8
1
7
