MAINTENANCE
TOWING THE MOWER
Towing procedure : Connect a rigid tow bar between the towing eye on the mower and a suitable
towing vehicle. Ensure that the towing vehicle specification is suited to braking the combined vehicle
weight to rest whilst effecting complete control at all times. Ensure the towing vehicle’s parking brake
is applied. Chock the mower front wheels to prevent the mower rolling away.

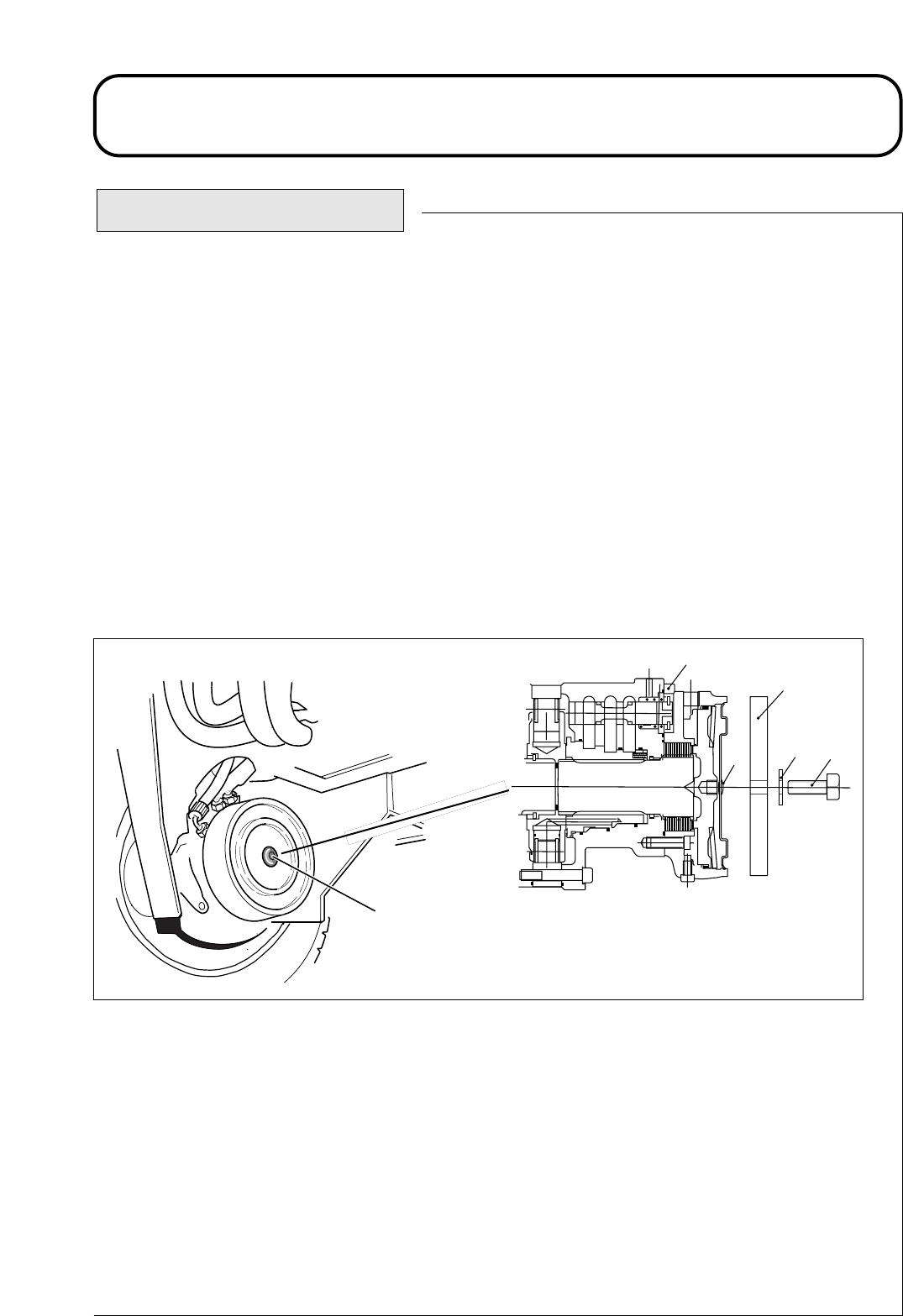

De-commission the front wheel motor disc brakes as follows :-
i) Identify the right hand front wheel motor disc brake assembly and remove the rubber plug (item 2).
Position a M12 x 40mm long setscrew (item 5) with washer (item 4) through the brake release bar (item
3) and into the hole in the centre of the motor end plate. Tighten the setscrew (item 5) into the
threaded hole in the brake piston until the brake is released.
ii) Identify the left hand front wheel motor disc brake assembly and repeat the previous procedure.
1.60
1.60
1
2
1D950R01
3
45
1D950R02
2
1. Front wheel motor - (950620).
2. Rubber Plug - (950639).
3. Brake Release Bar - (950348).
4. Washer - M12 - (09485).
5. Setscrew M12 x 40 - (ZDH1L040U).
