924916KG251004
OPERATING THE MOWER
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
Parking brake lever.
Lighting switch
(supplied with lighting kit).
Warning beacon switch
(supplied with beacon kit).
Hazard warning switch
(supplied with lighting kit).
Cutterhead position controls.
Throttle control lever.
Ignition key.
Cutterhead drive switch.
Dip beam / main beam light switch
(supplied with lighting kit).
Direction indicator switch
(supplied with lighting kit).
Horn button.
Transmission oil filter indicator.
Oil pressure indicator.
Transmission temperature indicator.
Return oil filter indicator.
Battery warning indicator.
Engine temperature warning
indicator.
Glow plug indicator.
Cutterhead drive off indicator.
Parking brake indicator.
Transmission neutral indicator.
Weight transfer control.
Wash / wipe switch
(supplied with cab kit).
Hour Meter
Left hand cutterhead safety latch.
Right hand cutterhead safety latch.
Centre cutterhead transport latch.
Reverse travel pedal.
Forward travel pedal.
Differential lock pedal.
Centre cutterhead safety latch.
4A924A02 (1)
1
2
5
6
10
9
4
7
8
11
14
13
12
15
16
18
19
20
21
17
22
3
23
24
HOURS
QUARTZ
C
U
R
T
I
S
1
10
1D924S04A (1)
31
27
25
29
26
28
30

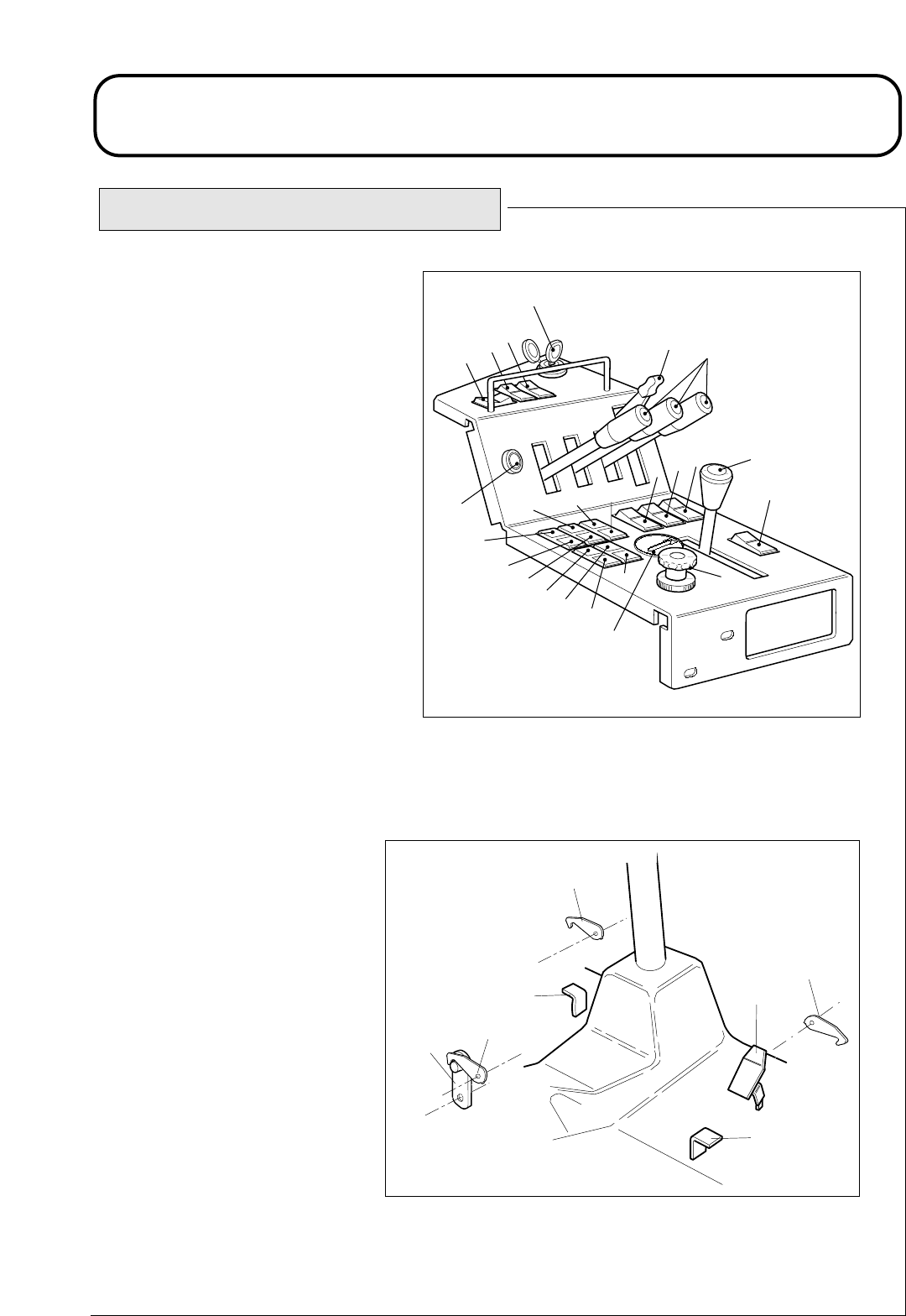

IDENTIFICATION OF CONTROLS
1.26
1.26
