924916KG251004

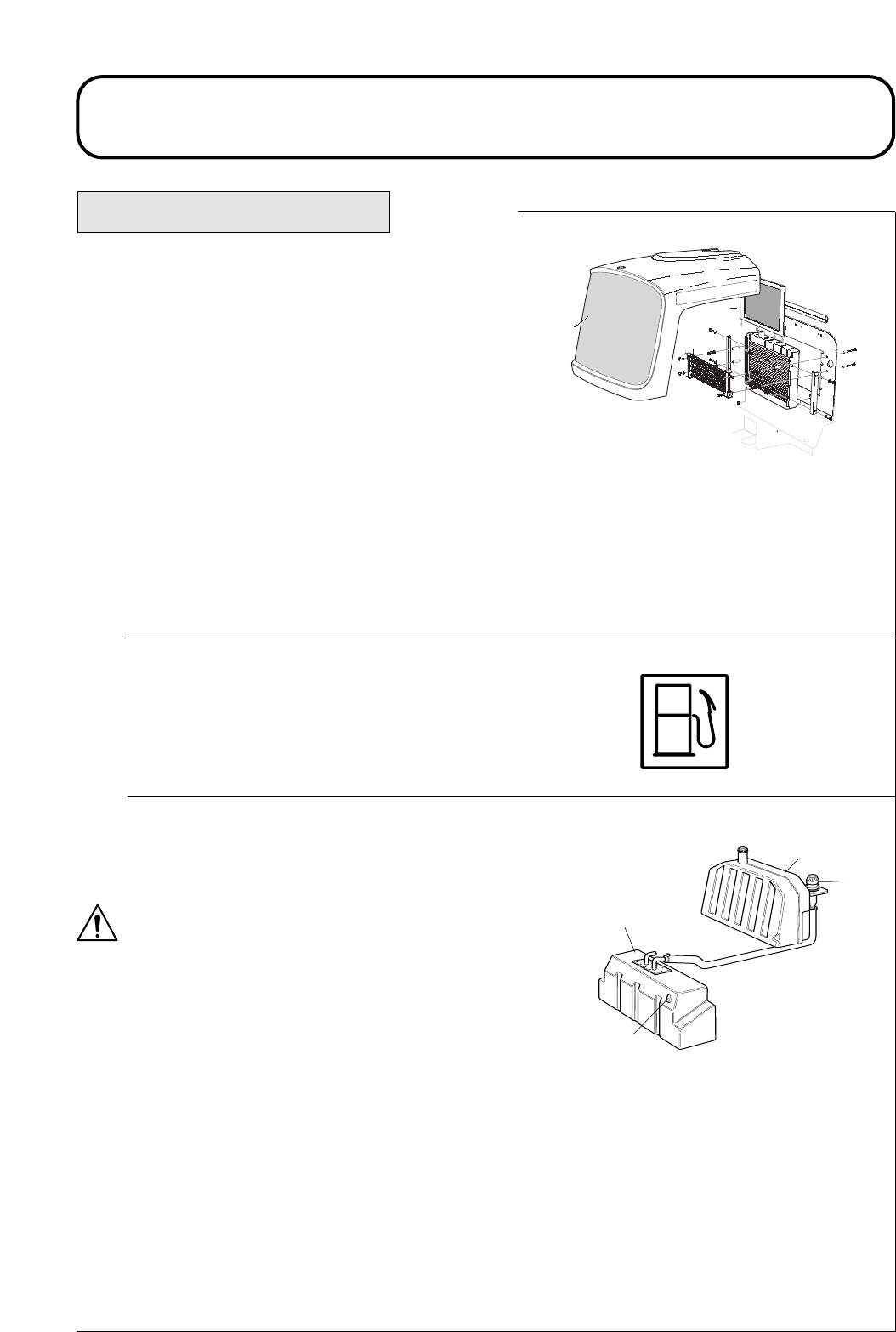

MAINTENANCE
1. Radiator primary screen.
2. Oil cooler
3. Secondary screen
DAILY AND BEFORE USE Continued.
Clean the primary radiator screen: Clean the primary radi-
ator screen. Check the oil cooler, secondary screen and engine
radiator grille for debris and clean as necessary using a brush
or airline. The secondary screen can be removed for cleaning.
Re-assemble the secondary screen. If water is used, these
areas should be allowed to dry out completely before use.
IMPORTANT: PREVENT DAMAGE - NEVER operate
the mower with a damaged radiator screen or engine
damage could result from overheating. Clean the radiator
screen more regularly in dry conditions.
Check fuel level: Top up as necessary with diesel fuel.
Always top up before storing the mower over-night to prevent
water condensation from contaminating the fuel.
Check hydraulic oil level: If the oil level is below the upper
mark on the sight level gauge, top up with the correct grade
of hydraulic oil as necessary, refer- SPECIFICATIONS.
WARNING : PREVENT DAMAGE - If there is
noticeable hydraulic oil loss, the leakage source must be
rectified before using the mower. NEVER operate the
mower when the hydraulic oil level is below the bottom
mark on the sight level gauge. NEVER operate the
mower with contaminated oil.
3
4
1
1D924P06A
2
D
1. Sight level gauge
2. Oil tank
3. Oil filler cap.
4. Fuel tank.
1P924C09
A
1
2
3
1.47
1.47
