- 24 -
5.1.11 Inspect belt wear.
Service Interval: 40 hrs.
a) Stop engine and remove spark plug wire(s).
b) Remove the cutter deck belt shield to check mower
primary and secondary blade drive belt condition.
NOTE: A Secondary blade drive belt is used on 48" units.
c) Look under engine deck to check the transmission drive
belt condition.
d) Inspect wheel drive belt conditions.
e) Check all idler arms to be sure they pivot freely.
Disassemble, clean and grease pivot bushings if necessary.
5.1.12 Lubrication:
Service Interval: Refer to Chart
a) Stop engine and remove spark plug wire(s).
b) Lubricate fittings with one to two pumps of SAE No. 2
multi-purpose gun grease
.

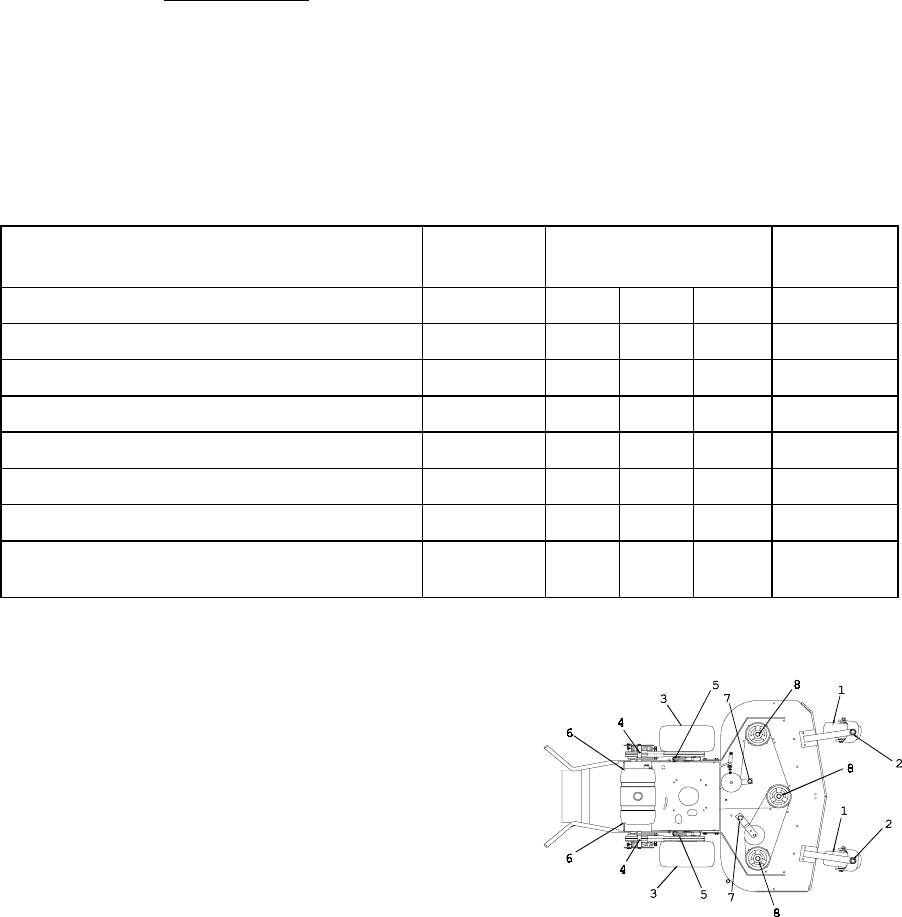

Refer to the following chart for fitting locations and
lubrication schedule.
LUBRICATION CHART
FITTING
LOCATIONS
INITIAL
PUMPS
FITTING
QUANTITY
32" 36" 48"
SERVICE
INTERVAL
1. Caster Wheel Bearings 12
2
2
2 Daily
2. Caster Pivots 2
2
2
2 Daily
3. Drive Wheels 18
2
2
2 Daily
4. Drive Wheel Idler Arm 2
2
2
2 Daily
5. Brake Lever 2
2
2
2 Weekly
6. Trans. Output Shaft Coupler 2
2
2
2 Weekly
7. Cutter Deck Idler Pivots
2
1
1
2 Weekly
8.
Cutter Spindles
S/N 150,000 to 159,999
10
2
2
3
Weekly
Under severe cutting conditions, two pumps of grease
twice weekly may be more beneficial.
No.8 (Cutter Spindle)
S/N 150,000 to 159,999 only
Located Under Deck
No.6 (Trans. Coupler)
Located Below
Fuel Tank Support
No. 4 & 7 (Idler Arm Pivots)
Dissasemble and grease once a
Month under a “No Load” condition
48” Deck Shown for
Reference Only
