Dimension One Spas - Aquatic Fitness System - Owner’s Manual
8
Using Your Aquatic Fitness System
Using the “Pool-Side” Control Panel
Your Aquatic Fitness System has a Control Panel on the top side to control the Pool Functions. (If
you have the “Dual Temp” model the spa-side functions are controlled by a separate panel, pg. 12).
The Display Window
The Display Window shows the current water temperature, except when you
adjust the temperature. Five seconds after you finish setting the desired
temperature, the Display Window reverts back to the current temperature.
Jets 1 Button
Pressing the Jets 1 button once turns Pump 1 on low speed. A second press
turns it to High Speed. A third press turns the pump off, unless the pump has
been automatically activated during a heating cycle – in which case a third
press returns the pump to Low Speed for heating. A built-in timer automatically
shuts the pump off after 20 minutes of operation. The Jets 1 Indicator light
(beside the button) will glow while the pump is running.

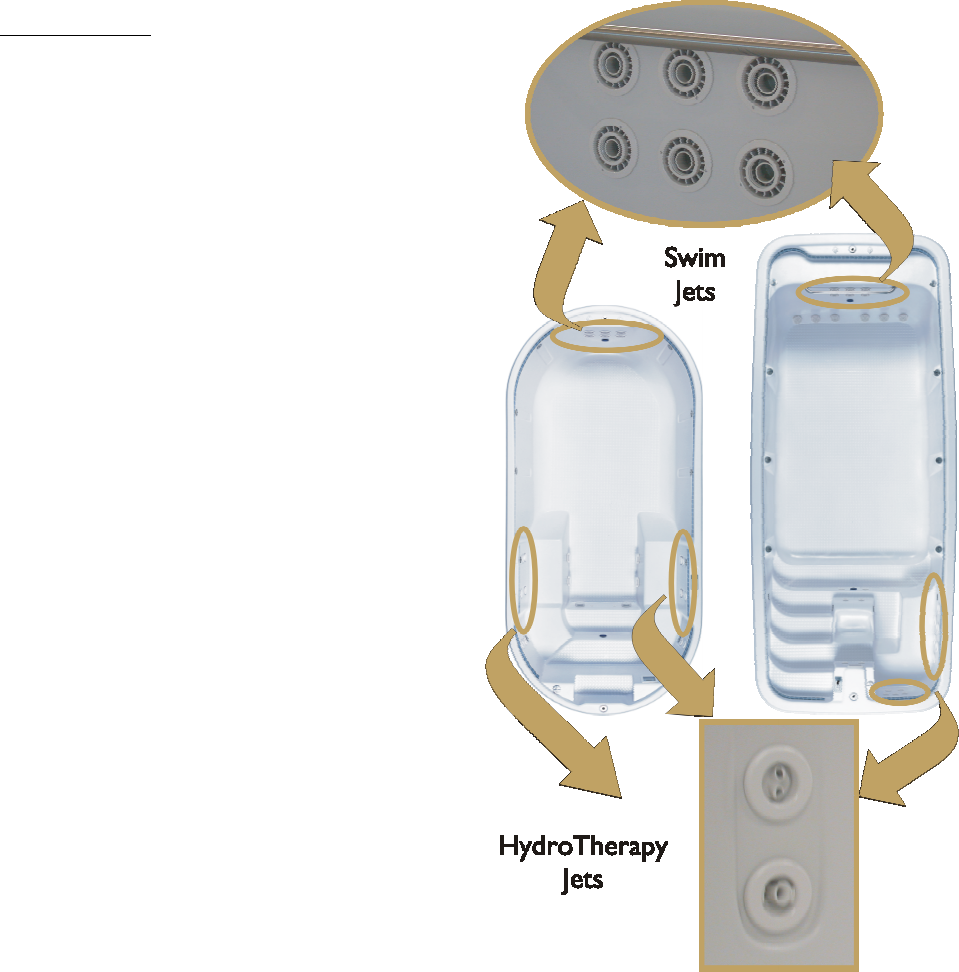

Pump 1 powers the Swim Jets and/or HydroTherapy Jets. The diverter valve
(see left) controls which set of jets gets the water, and how much flows to
each set. (Note: If you have the Dual Temp model with built-in spa, the spa
side has a diverter valve but the swim side does not.)
Pump 1 also runs on low speed during all filtering and heating cycles. During the
filter cycle the indicator light for Jets 1 glows. If you manually press JETS 1 during a
filter cycle, that particular filter cycle disables to give you control of the jet pump.
