ASSEMBLY
VERSA PRO 03/09 Assembly Section 3-8
© 2009 Alamo Group Inc.
ASSEMBLY
CENTER MOWER ASSEMBLY

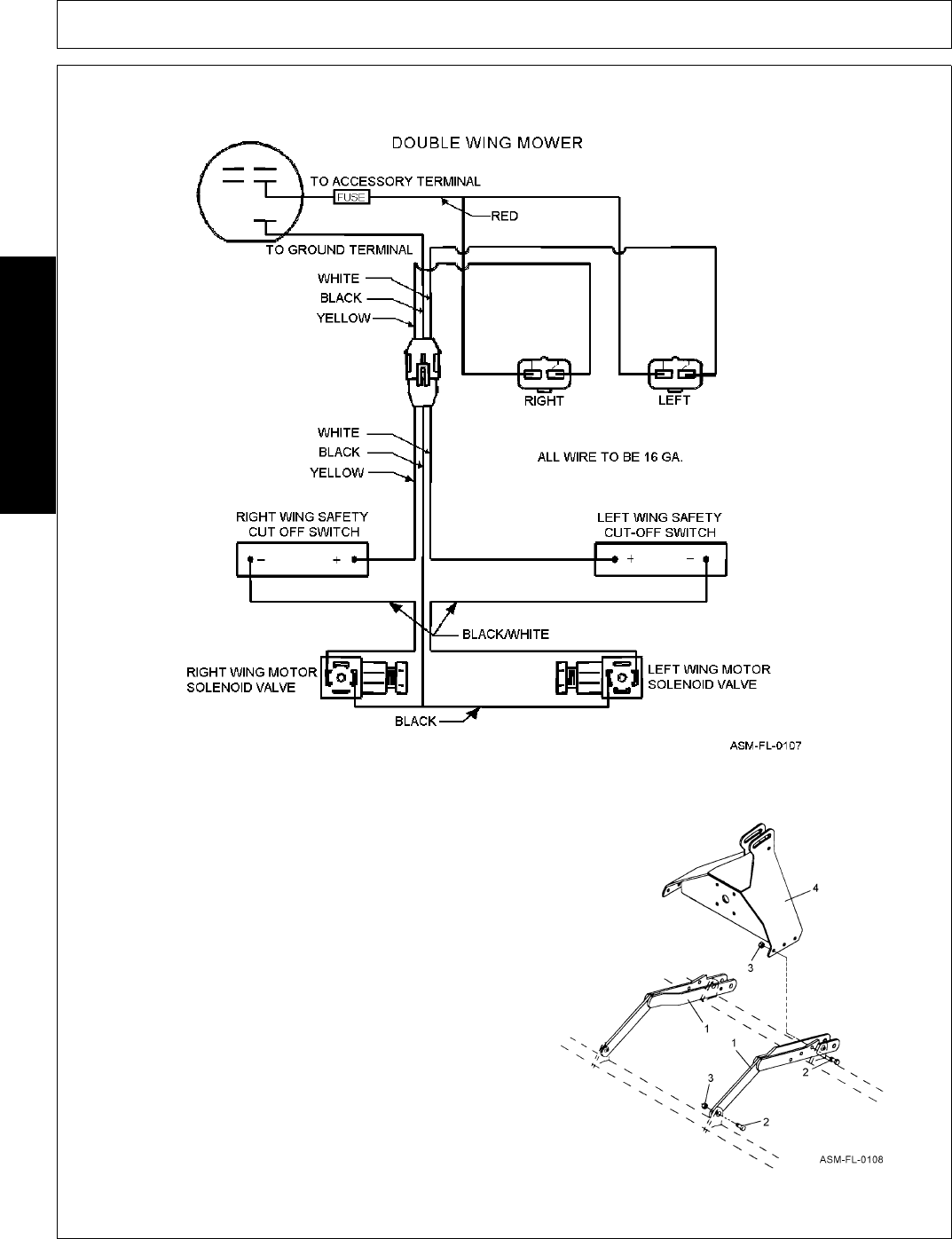

Attach the right and left Overarms (1) to the
cutterhousing. Secure with 5/8 x 1-3/4 bolts (2) and
locknuts (3). Attach the A-Frame Weldment (4) to
the Overarms with bolts (2) and locknuts (3). ASM-
FL-0108.
