EPSON Stylus Color 900 Revision C
Disassembly and Assembly Disassembly Procedures 109
4.2.4 Relay Board and Cooling Fan Removal
1. Remove the C265 Main board. (See Section 4.2.3.)
2. Remove all connectors from the relay board. (See Figure 4-5 when
connecting them.)
3. Remove two screws securing the relay board to the shield plate on
the C265 Main board, then remove the relay board.
4. Remove three screws securing the cooling fan unit to the shield
plate on the C265 main board, then separate the cooling fan from
the C265 Main board.
5. Disconnect the connector CN13 (white, 2-pin) from the C265 Main
board, and remove the cooling fan unit.

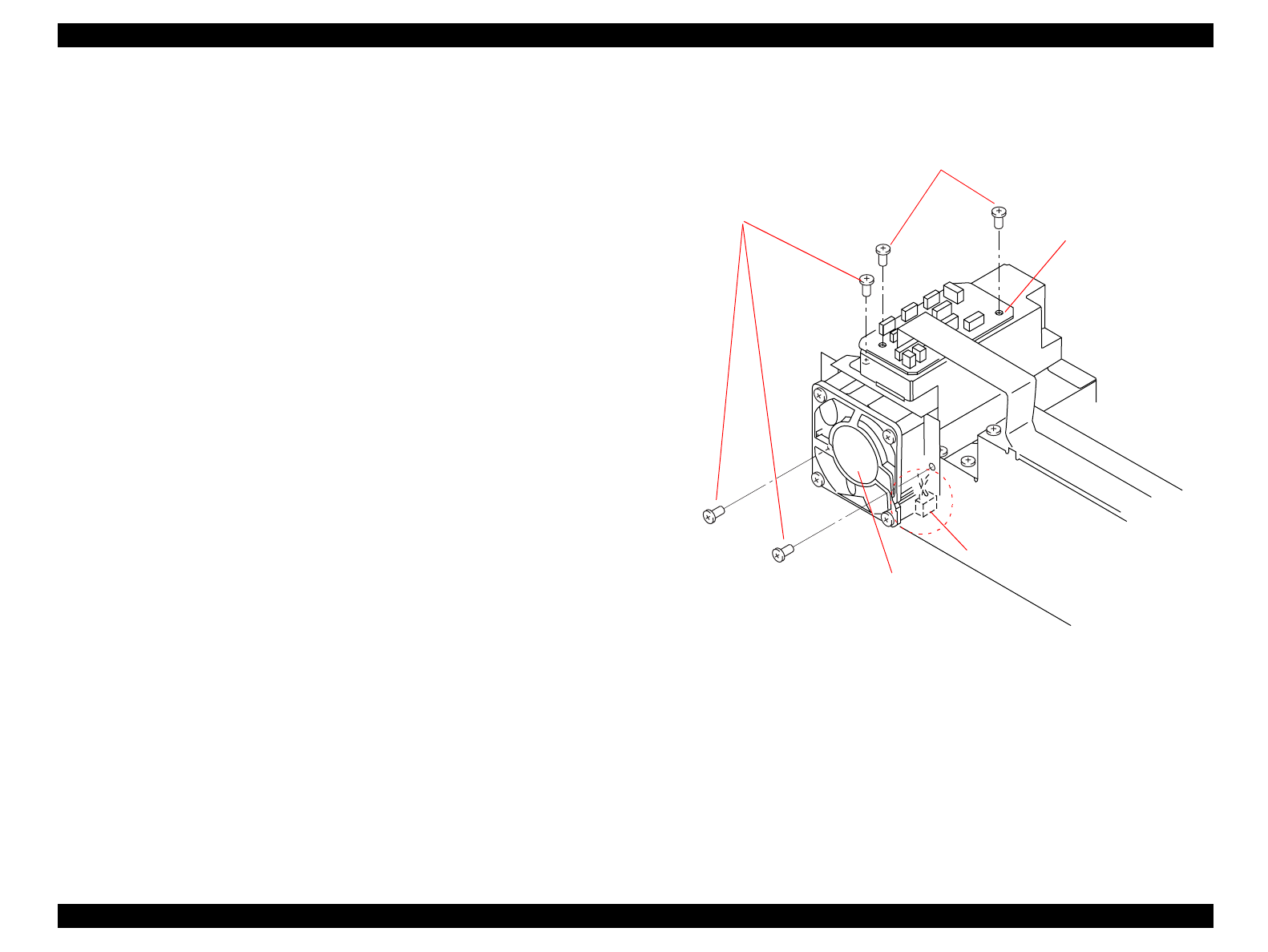

Figure 4-7. Relay Board and Cooling Fan Removal
Screws securing the Relay Board
Screws securing the
Cooling Fan Unit
CN13
Relay Board
Cooling Fan Unit
