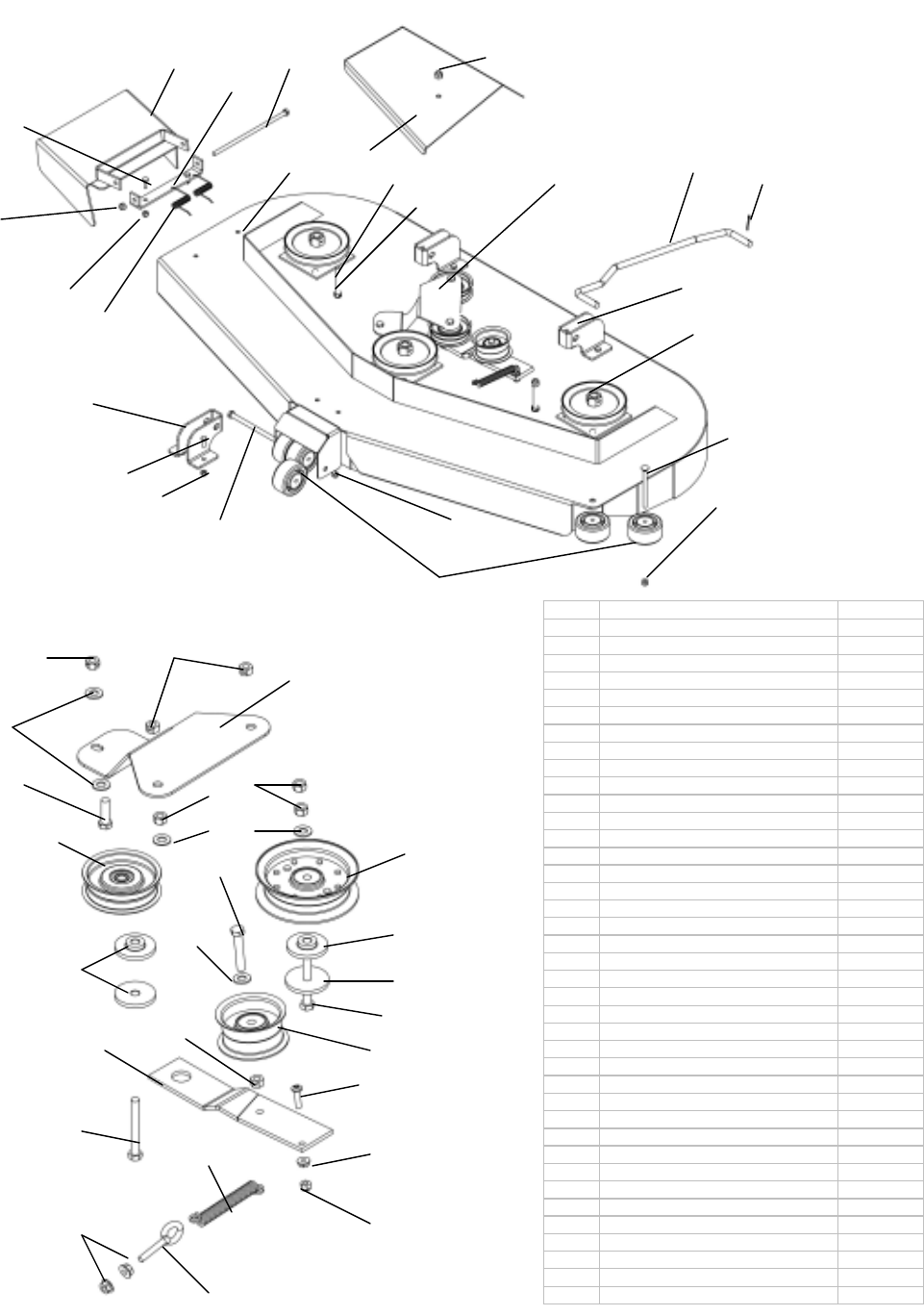

DECK IDLER
1
SEE DETAIL
SEE DETAIL
THIS PAGE
2
34
15
16
7
8
9
11
10
7
9
12
8
13
8
14
5
6
17
18
Item # Description Part #
1 50" ZTR Deck Weldement 3766C
2 Pulley Cover (Right Side) 3769TK
Pulley Cover (Left Side) 3768TK
3 3/8-16 Nyloc Nut NB182
4 5/16-18 X 8 1/2 HCC GR2 ZP NB136
5Sway Bar Right3664
Sway Bar Left 3665
6 1/8 X 1 Cotter Pin NB126
7 5/16-18 X 3/4 Serr Flg Bolt NB596
8 3/8-16 Nyloc Nut NB182
9 5/16-18 Serrated Flange Nut NB170
10 Grass Chute Spring CH5S
11 Lift Bracket 3738TK
12 3/8-16 X 5 1/2 GR5 ZP NB575
13 Anti-Scalp Roller AS001
14 5/16-18 X 4 Carriage Bolt NB101
15 Grass Chute Mount 6030TK
16 Grass Chute Weldement 3773TK
17 3/8-16 Kep Nut NB205
18 3/8-16 X 3 HTC GR5 ZP NB164
19 3/8-16 X 1 1/4 GR5 ZP NB618
20 Pulley Brace 3772TK
21 3/8-16 X 3 HCC GR5 ZP NB164
22 Idler Bushing 6037
23 Idler Pulley OD-3.25" B527
24 Idler Pulley OD-2.75" 7509
25 1/4-20 X 1 Truss Head Screw NB709
26 Spring TZ2S
27 Deck Idler 3770TK
28 3/8-24 Two Way Locknut NB280
29 3/8 SAE Washer NB272
30 3/8-16 X 2 HCC GR5 ZP NB198
31 Idler Pulley 3786
32 1/4-20 Flange Nut NB524
33 1/4-20 Nylok Nut NB180
34 5/16-18 Eye Bolt NB315
35 3/8-16 HNCGR2 ZP NB212
36 3/8-16 X 1 GR5 ZP Bolt NB604
37 Idler Spacer 6040TK
50” MOWING DECK
25
11
36
28
20
35
29
31
3
23
30
29 22
22
21
24
28
25
27
21
32
33
26
34
9
29
Page 18
37
