Swisher ZT1436, ZT17542B, ZT1842, ZT20050 Lawn Mower User Manual



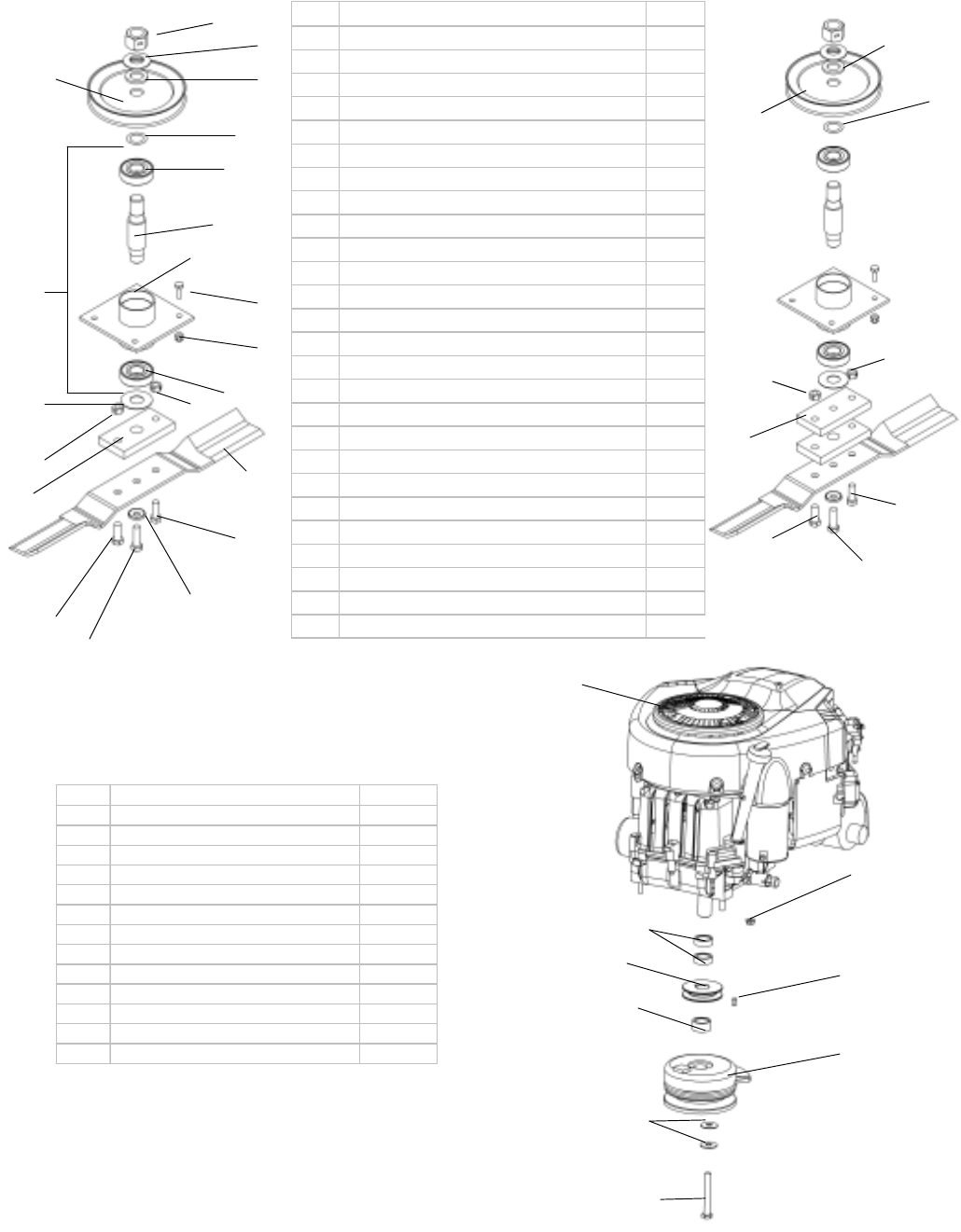

BLADE DRIVER
24
ENGINE SETUP
1
2
34
5
6
7
10
8
6
11
12
13
13
14
15
15
16
17
18
9
25
26
27
28
29
30
31
32
Item # Description Part #
24 14 HP B&S Engine (36" Mower) N/A
17.5 HP B&S Engine (42" Mower) N/A
18 HP B&S Engine (42" Mower) N/A
20 HP B&S Engine (50" Mower) N/A
25 5/16-18 Serrated Flange Nut NB170
26 Spacer Engine Pulley BB105SL
27 Motor Pulley 3" 3753
28 1/4 X 1/2 Key Stock 4258
29 Engine Pulley Spacer Short .687 689S
30 Electric Clutch Drop Pulley 688ECDP
Electric Clutch (50" Mower Only) 3813
31 Washer Belleville Engine Pulley NB699
Item # Description Part #
1 3/4-16 2 Way Lock Nut NB175
2 1.5x.761x.098x.134 Belleville Washer AS155
3 3/4ID X 1 1/4OD 10 GA. Washer NB184
4 Blade Pulley- 5" (42" Mower Only) 3785
5 Washer For Blade Driver NB179
6 Blade Bearing B98
7 Blade Shaft 4.25" 9076
8 Bearing Housing 9057TK
9 36" Mower - 18" Blade 9014
42" Mower - 20 1/2" Blade 9004
42" Mower - 22" Blade 9005
17.5" Blade for 50" Mower 5059
10 Blade Driver Assy 9018
11 1/4-20 X 3/4 GR5 ZP NB250
12 1/4-20 Nylok Nut NB180
13 3/8-24 Two Way Locknut NB216
14 Washer B98W
15 3/8-24 X 1 Bolt NB238
16 Blade Mount Plate 9008
17 SP Washer Bellvl. PLN .413 X .945 X .118 NB607
18 3/8-24 X 1 Engine Bolt Locktite NB238N
19 Blade Mount Plate Spacer (36" Only) 9024
20 3/8-16 X 1 1/2 HCCGR5ZP (36" Only) NB107
21 3/8-24 X 1 1/2 HCC GR5 ZP Locktite (36" Only) NB167N
22 3/8-16 2-Way Lock Nut (36" Only) NB280
23 Blade Pulley 4.5" (36" & 50" Only) B4104TK
