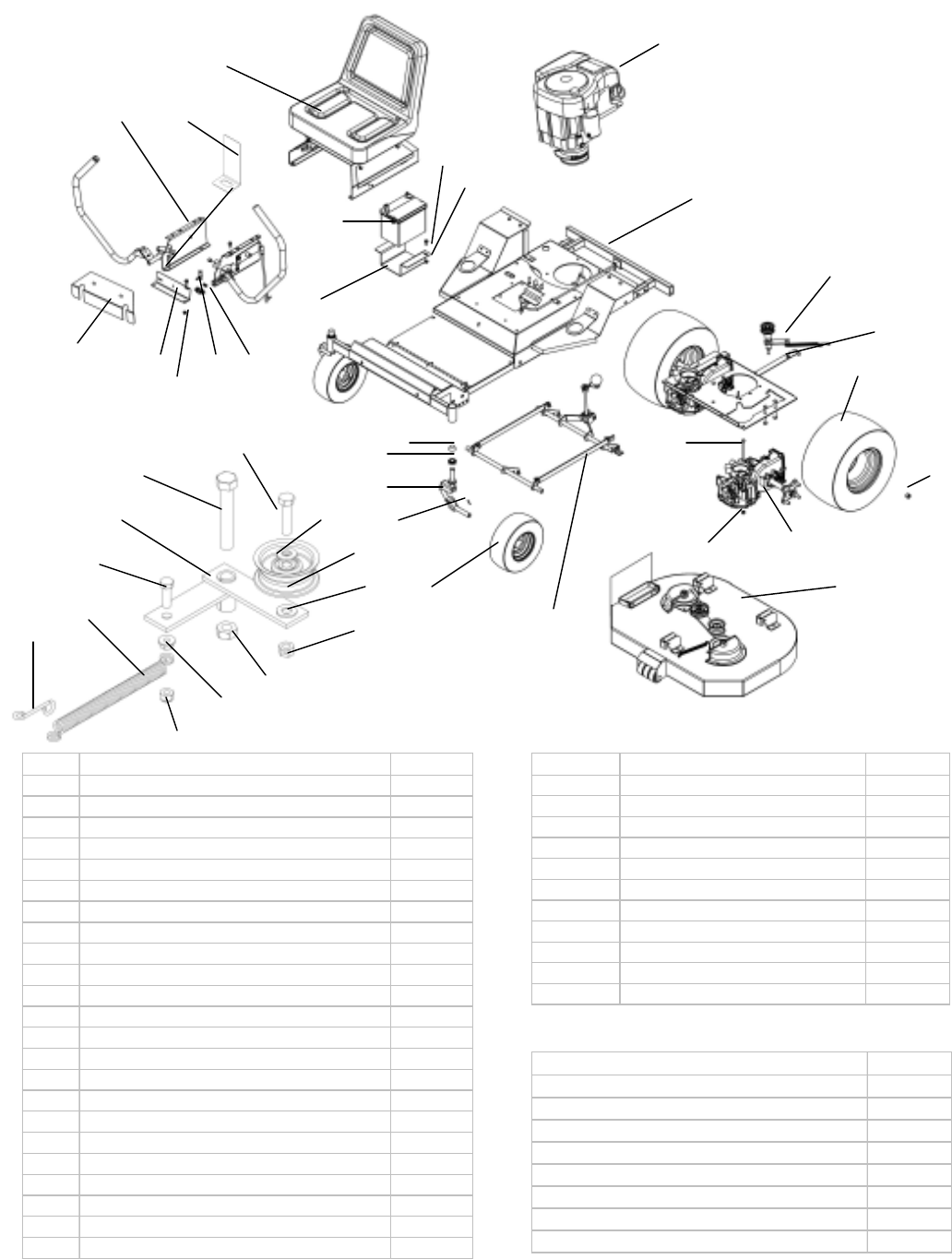

OVERALL ASSEMBLY
Not Pictured
Description Part #
Solenoid Assembly (All Models) 9043
Wiring Harness (36 and 42" Models Only) 3720
Wiring Harness (50" Models Only) 3804
Hour Meter (50" Models Only) 3803
Battery Hold Down, 15" Tarp Strap BHOLD
1/4-20 X 3/4 GR5 ZP (2) NB250
1/4-20 Flange Nut (2) NB524
Belt Snubber (50" Mower Only) 3819TK
17
SEAT DETAIL
STEERING
DETAIL
ENGINE DETAIL
FRAME DETAIL
TRANSMISSION
IDLER DETAIL
DECK LIFT
DETAIL
MOWING
DECK DETAIL
1
2
3
6
42
3
5
7
8
9
10
11
12
13 14
16
15
17
18
Item # Description Part #
1 Battery Box 3696TK
2 5/16-18 X 3/4 Serr Flg Bolt NB596
3 5/16-18 Serrated Flange Nut NB170
4 Nuetral Switch Bracket Painted 3704TK
5 Return to Neutral Switch 3695
6 Steering Cover 3644TK
7 3/4 Push Nut Blk Plastic NB687
8BearingCB58
9 Caster Weldment 5072
10 1/8 X 1 Cotter Pin NB126
11 Front Tire for 36" and 42" 3754
Front Tire for 50" Only 5057
12 3/8-16 X 4 HCC GR5 Bolt NB645
13 3/8-16 Nyloc Nut NB182
14 ZTR Trans. Right- NOT FOR RE-SALE 3600
ZTR Trans. Left- NOT FOR RE-SALE 3601
15 Lug Nut 2203LN
16 Rear Tire For 36" 3755
Rear Tire For 42" 3604
Rear Tire For 50" 3756
17 Battery 230 CCA EBAT230
18 Hydro Release 3678TK
19 Spring - Interlock Switch 3751
Item # Description Part #
20 Transmission Idler Arm 3690TK
21 1/2-13 X 3 HCC GR5 Bolt ZP NB131
22 3/8-16 X 1 1/2 HCCGR5ZP NB107
23 3/8 SAE Washer NB272
24 Idler Pulley OD-2.16" B27
25 3/8-16 2-Way Lock Nut NB280
26 1/2-13 2-Way Jam Lock Nut NB121
27 5/16-18 Nyloc Nut NB181
28 Clutch Rod Spring 682S
29 Wire Link For Idler Arm BRS6H
30 5/16-18 X 1 HCC GR5 ZP NB501
21
22
23
24
23
25
26
3
27
20
30
28
29
Transmission Idler
(This Page)
19
(Page 21 & 22)
(Page 23, 24 & 25)
(Page 19)
(Page 20)
(Page 18)
(Page 19)
