Swisher ZT1436, ZT17542B, ZT1842, ZT20050 Lawn Mower User Manual



24

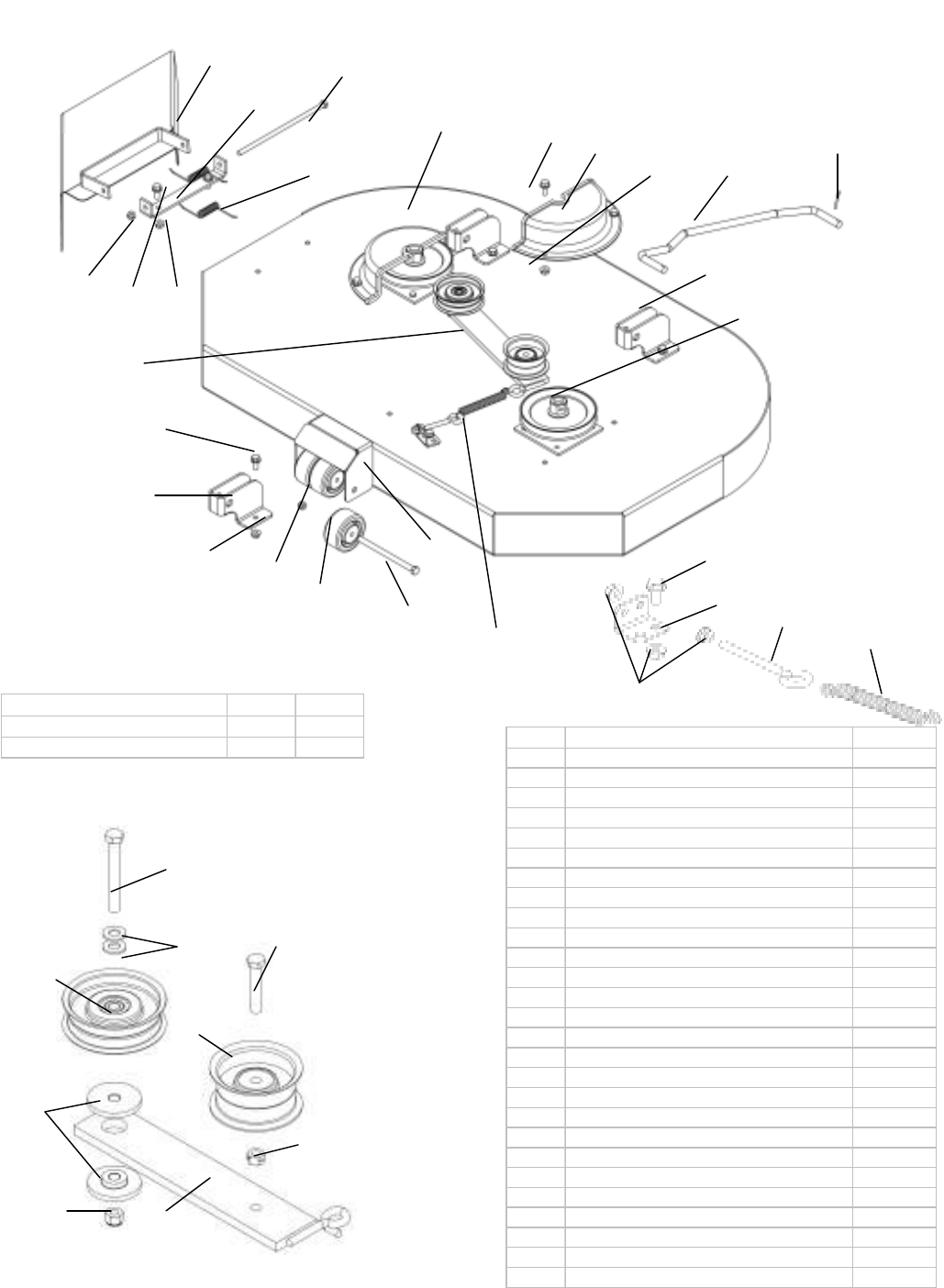

42” MOWING DECK
SEE DETAIL
THIS PAGE
1
2
3
45
6
7
8
9
10
11
12
1012
9
13
14
15
16
SEE DETAIL
11
DECK IDLER
28
NOT SHOWN
DESCRIPTION PART # QTY
5/16-18 X 3/4 Serr Flg Bolt NB596 2
5/16-18 Serrated Flange Nut NB170 2
Roller Bracket (28) Mounting Hardware
17
18
19
20
23
2425
21
22
Page 18
4
SEE DETAIL
THIS PAGE
DECK TENSIONER
2
9
13
Shown Below
Item # Description Part #
1 Deck Weldment 3762C
2 5/16-18 X 3/4 Serr Flg Bolt NB596
3 Pulley Cover 3743
4 5/16-18 Serrated Flange Nut NB170
5 Sway Bar Right 3664
Sway Bar Left 3665
6 1/8 X 1 Cotter Pin NB126
7 3/8-16 X 5 1/2 GR5 ZP NB575
8 Anti-Scalp Roller AS001
9 Seat Hinge 3808TK
10 5/16-18 Serrated Flange Nut NB170
11 Lift Bracket 3738TK
12 5/16-18 X 3/4 Serr Flg Bolt NB596
13 5/16-18 Eye Bolt NB315
14 Grass Chute Weldement 3757TK
15 Grass Chute Mount 6030
16 5/16-18 X 8 1/2 HCC GR2 ZP NB136
17 3/8-16 X 3 HTC GR5 ZP NB164
18 3/8 SAE Washer NB272
19 3/8-16 X 2 HCC GR5 ZP NB198
20 Idler Pulley 7509
21 Front Roller Bracket Assy 4018TK
22 Idler Pulley B527
23 3/8-16 2-Way Lock Nut NB280
24 Deck Idler Weldement 3764TK
25 3/8-16 Nyloc Nut NB182
26 Idler Bushing 6037
