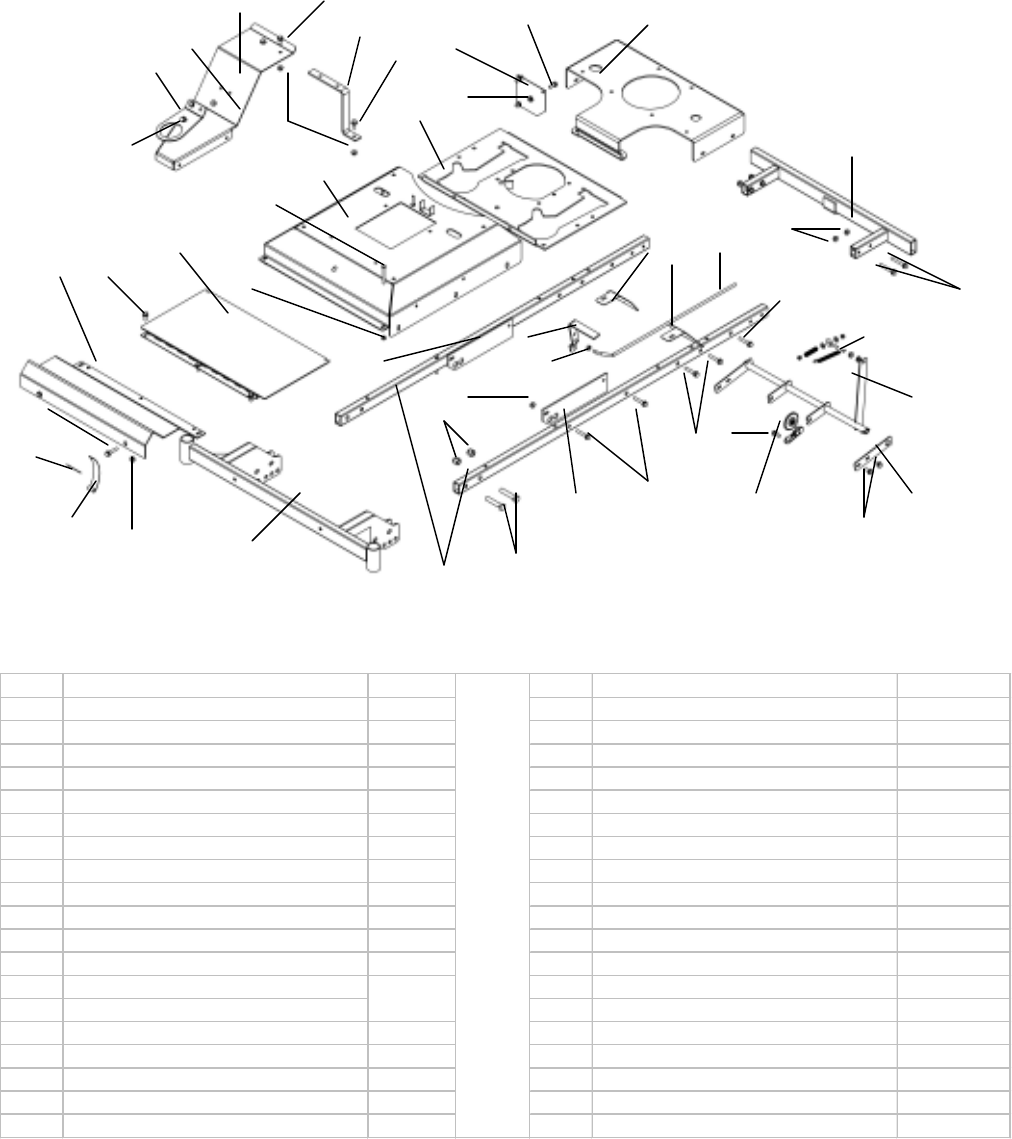

FRAME for 36” and 42” Mowers
Item # Description Part # Item # Description Part #
1 Beverage Retainer 3643TK 16 1/2-13 Nyloc Nut NB281
2 5/16-18 X 1/2 Serr. Flg Bolt NB252 17 1/2-13 X 2 1/2 HCC GR5 ZP NB510
3 5/16-18 Serrated Flange Nut NB170 18 Rear Hangar Bracket 3264TK
4 36" Mower Fender Left 3742TK 19 Frame Side Weldment 3639TK
36" Mower Fender Right 3742RTK 20 E-Brake Handle 3653TK
42" Mower Fender Left 3641TK 21 5/16-18 ZP 2 Way Lock Nut NB558
42" Mower Fender Right 3642TK 22 5/16-18 X 1 3/4 Flge Serr Bolt NB515
5 5/16-18 X 3/4 Serr Flg Bolt NB596 23 Transmission Fan Cover 3712TK
6 Fender Mount 3654TK 24 Trans Fan Cover Right Side 3806TK
7 Seat Base Weldment 3719C 25 E-Brake Side Link 3651
8 1/4-20 X 2 1/2 HTC GR5 ZP NB163 26 Bumper Weldment 3686TK
9 1/4-20 Flange Nut NB524 27 Upper Motor Base 3611TK
10 Access Plate 28 Rear Cover 3711TK
Access Plate Hinge 29 Transmission Mount 3703TK
11 Kick Plate 3630TK 30 5/16-18 X 2 1/4 Flang Serr. GR5 ZP NB622
12 5/16-18 X 1 1/2 Flge Serr. Bolt NB254 31 Parking Brake Weldment 3797TK
13 Height Adjust Bracket 3619TK 32 Brake Mount Plate 3267TK
14 Height Adjust Indicator 3671C 33 Brake Assembly Cog Right Side 3600CB-BA
15 Front Frame Weldment 3261TK Brake Assembly Cog Left Side 3601CB-BA
3269
Parts unique to 50” mower frame on next page.
21
SEE DETAIL
NEXT PAGE
1
2
3
4
5
6
5
3
7
8
9
10
11
12
13
14
3
15
19
18
5
16
3
20
21
17
18
22
5
33
5
32
31
24
23
25
3
30
26
29
3
28
5
27
13
13
