Page 12
ANSI/NFPA 70. The disconnecting means must be readily
accessible to the spa’s occupant but installed at least 5 feet (1.5m)
from spa water.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interruptor (GFCI) as required by NEC Article
680-42.
7. To gain access to the spa’s power terminal block, remove the
screws securing the cabinet panel on the side of the spa under the
control panel (page 20). Then remove the four control box door
screws and door (Figure-B).
8. Select the power supply inlet you want to use (Figure-A). Feed
power cable to control box, then install it through the large opening
provided in the bottom side of the box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figures C-F). TIGHTEN SECURELY! All wires must be hooked up
securely or damage could result.
10. Install control box door and screws and reinstall the cabinet side
panels.
7
8
36
2 2

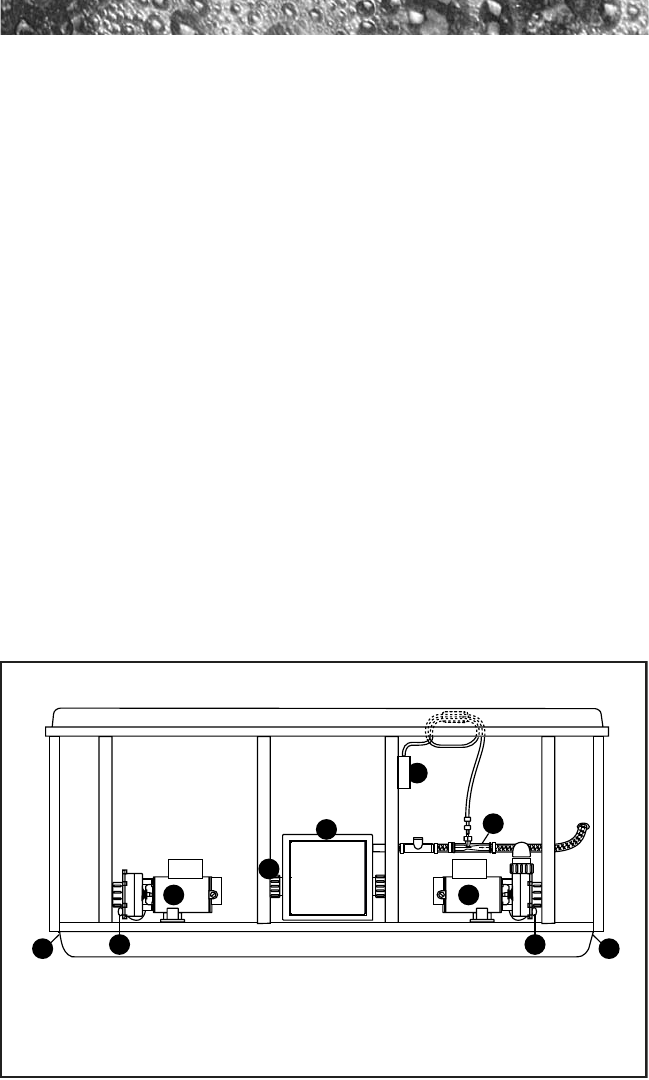

Figure-A
Equipment Area
1. Control Box
2. Power Supply Inlet(s)
3. 2-Speed Pump #1
4. Heater
5. Pump Drain Plug
6. 1-Speed Pump #2
7. Optional CD Ozonator
(Purchased Separately)
8. Ozone Injector
Flow
Note: Pump Locations Vary by Model
5 5
1
4
Burlington Model Illustrated
