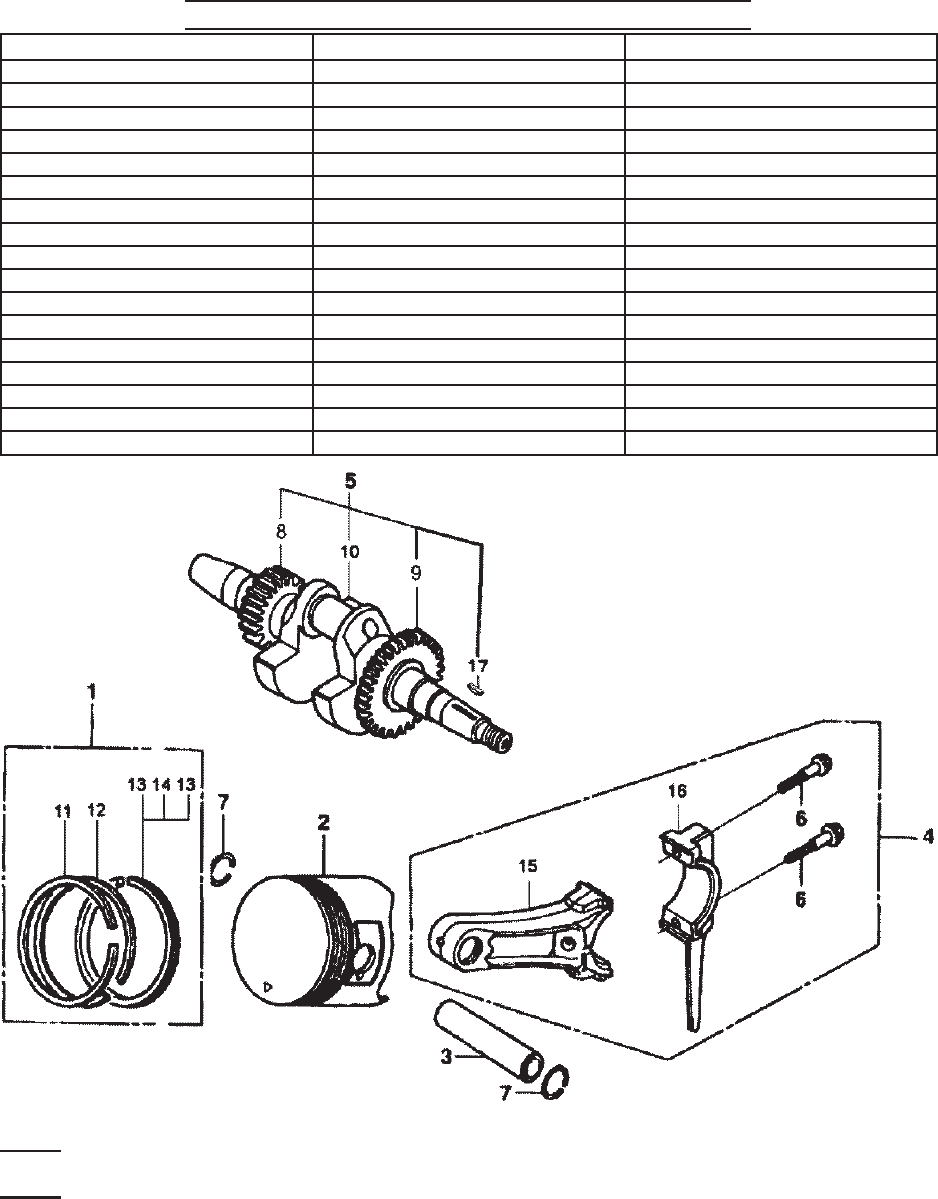

Parts List & Diagram E - Crankshaft/Piston
Part # Description Qty
1E Ring Set 1
2E Piston 1
3E Pin 1
4E Rod Assembly 1
5E Crankshaft Assembly 1
6E Bolt 2
7E Clip 2
8E Timing Gear 1
9E Gear 1
10E Crankshaft 1
11E First Ring 1
12E Second Ring 1
13E Oil Ring 2
14E Bushing Ring 1
15E Connecting Rod 1
16E Connecting Rod Cover 1
17E Key 1
Note: When ordering parts for this component use the sufx “E”.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
