Backward
1. Move the levers to the center, unlocked position.
2. To go backward, slowly pull the motion control
levers rearward (Figure 9).
To go straight, apply equal pressure to both
motion control levers (Figure 9).
To turn, release the pressure on the motion
control lever toward the direction you want to
turn (Figure 9).
To stop, push the motion control levers to neutral.
Stopping the Machine
To stop the machine, move the motion control
levers to neutral and outward to the neutral position,
disengage the blade control switch, move the throttle
lever to between Fast and half throttle, and turn the
ignition key to off. Remember to remove the key
from the ignition switch.
Tracking Adjustment
If the machine turns right or left when handles are
pushed forward together, adjust the tracking plate on
the side opposite the direction of turn (see Figure 10).
Loosen the hardware that holds the tracking plate.
Move the plate back until the unit drives straight.
Tighten the hardware to lock the tracking plate in
place. Readjust handles if necessary.

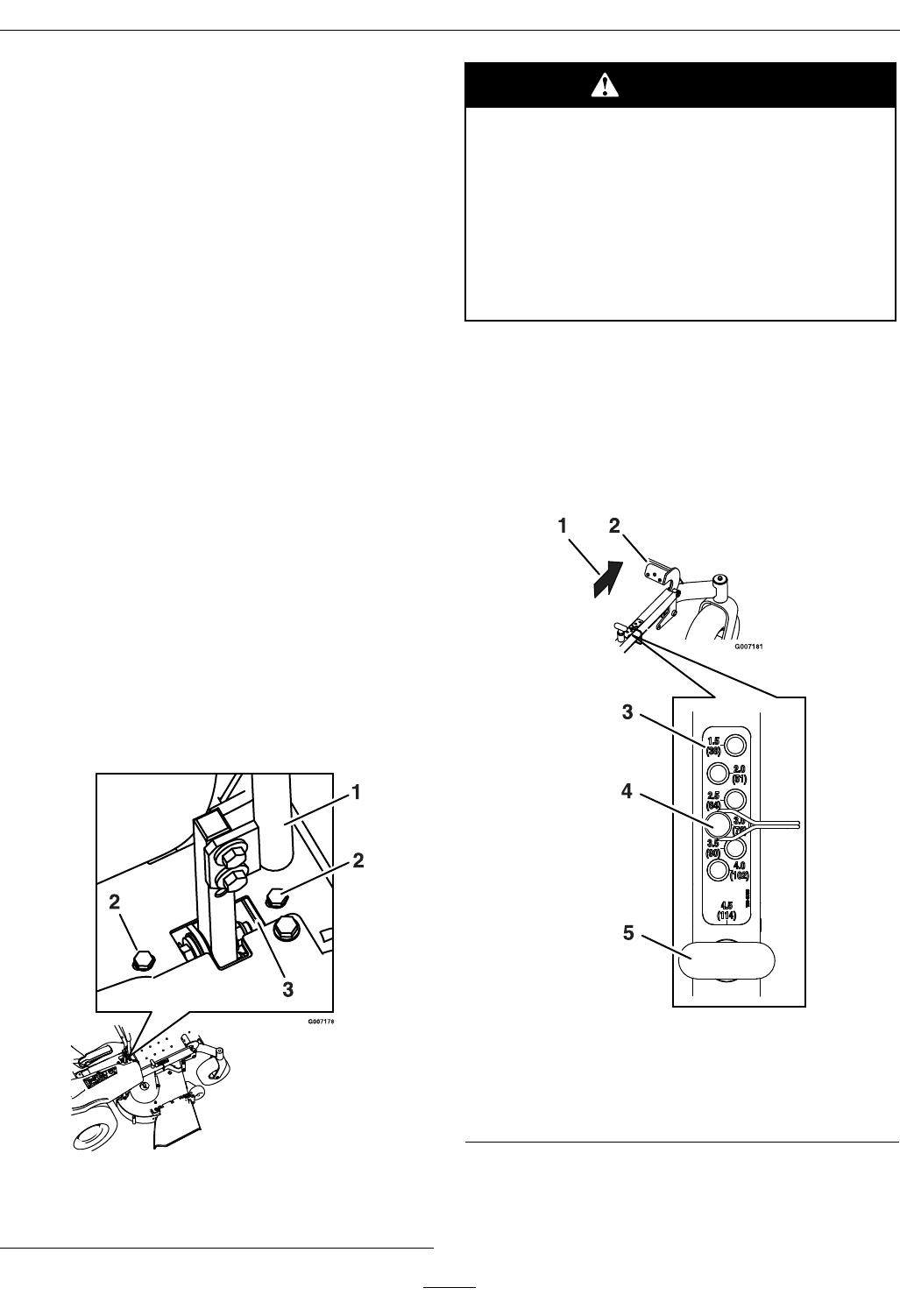

Figure 10
1. Control arm shaft
3. Tracking plate
2. Tracking plate nut
CAUTION
Children or bystanders may be injured if they
move or attempt to operate the mower while
it is unattended.
Always remove the ignition key and move the
motion control levers outward to the neutral
position and apply the parking brake when
leaving the machine unattended, even if just
for a few minutes.
Adjusting the Height of Cut
1. Raise the deck to the transport position (4.5 inch
(114 mm) cut height) by pushing the foot actuated
lever forward (Figure 11). The transport lever will
automatically engage and will drop into place.
Figure 11
1. Transport release handle 3. Height adjuster pin
2. Height-of-cut positions
4. Foot actuated
height-of-cut lever
2. Move the deck height adjuster pin to the desired
cut height.
3. Push the foot lever forward, pull the transport
release handle up and let the deck lower down to
the predetermined cut height by slowly decreasing
foot pressure allowing the foot lever to travel
rearward.
Adjusting the Anti-Scalp
Rollers
It is recommended to change the anti-scalp roller
position when the height of cut has changed.
23
