Operation
Product Overview

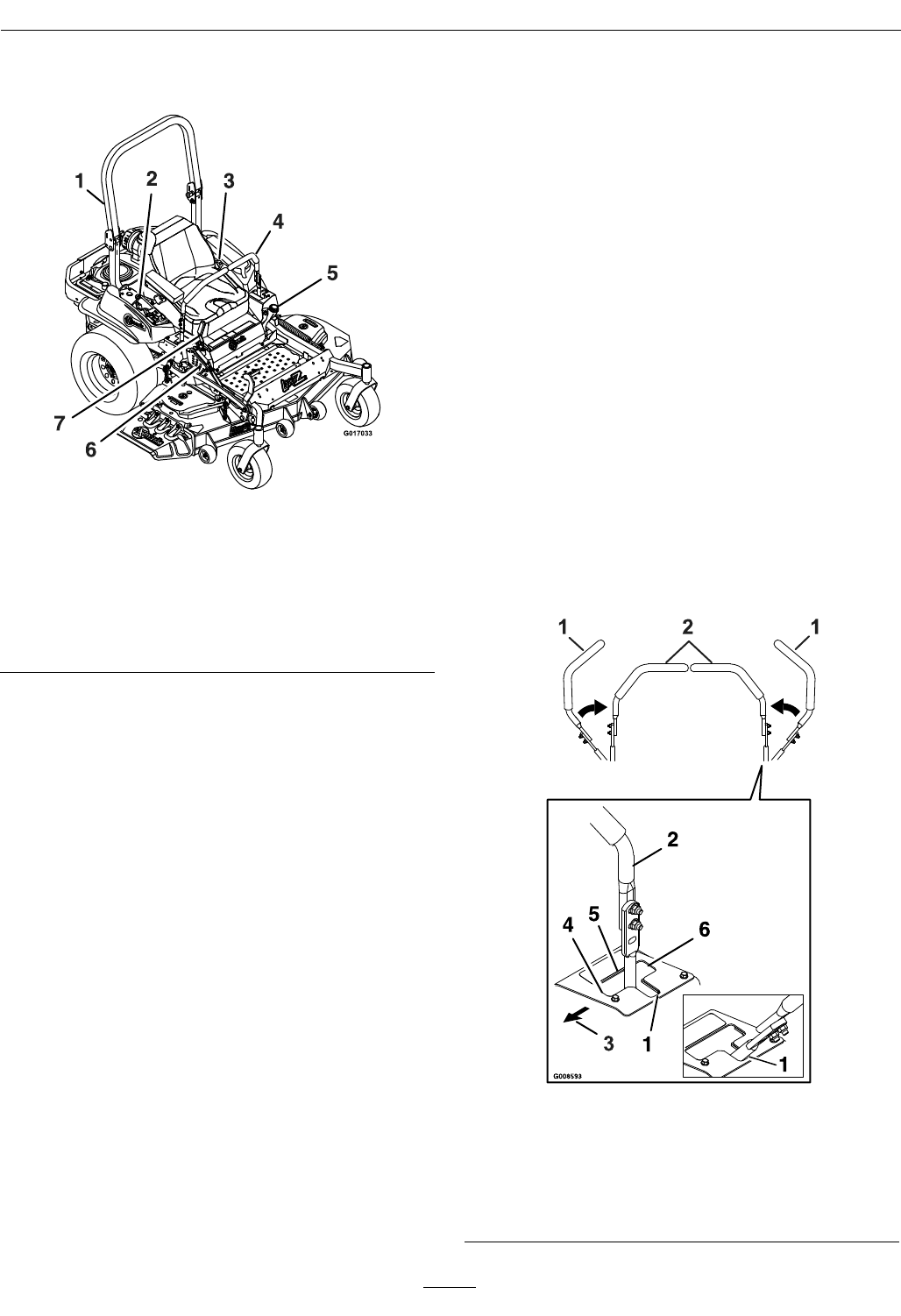

Figure 4
1. Rollover Protection
System (ROPS)
5. Fuel cap
2. Engine Controls (right
console)
6. Height of cut adjustment
3. Seat belt
7. Parking brake
4. Motion control levers
Operation
Note: Determine the left and right sides of the
machine from the normal operating position.
Controls
Motion Control Levers
The motion control levers located on each side of
the console control the forward and reverse motion
of the machine.
Moving the levers forward or backward turns
the wheel on the same side forward or reverse
respectively. Wheel speed is proportional to the
amount the lever is moved.
Moving the levers outward from the center position
into the T-slot locks them in the neutral position
(Figure 5).
When the motion control levers are in the neutral
position, the LCD indicator appears in the message
display on the RH console (see Figure 8).
Figure 5
1. Neutral lock position
(handles out)
4. Forward
2. Neutral operate position
(handles in)
5. Neutral (operate)
3. Front of Unit
6. Reverse
21
