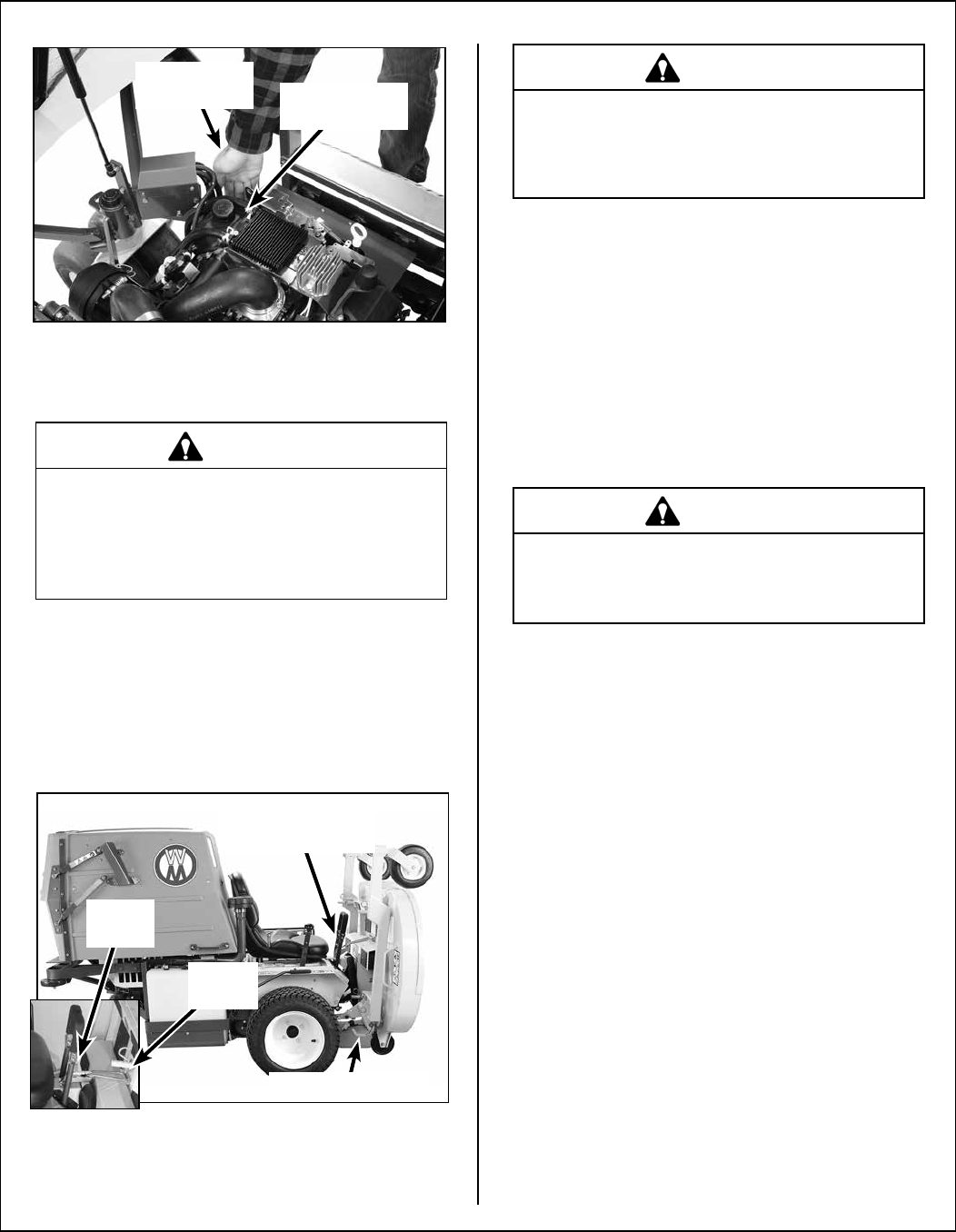

Maintenance Instructions CLEANING
64
Check Airow
with Hand
Cylinder Head
(Not Visible)
Cooling System Airow
Grass Buildup in Mower Deck Housing
DANGER
Before raising or removing the mower
deck for cleaning, stop the engine, re move
the ignition key, and disconnect the spark
plug wires.
1. Raise the deck lock lever handle on each side
of the carrier frame and pull out to release car-
rier frame for tilting action.
2. Using the carrier frame lift handle, raise deck to
the TILT-UP position and insert the deck hook
into the tilt-up latch on the tractor body.
Deck Lock Lever
Tilt-Up
Hook
Tilt-Up
Latch
Tilt-Up Hook and
Latch Connected
Deck Secured in TILT-UP Position
DANGER
Do not operate the mower with deck in tilt-
up position. Do not move the tractor with
the deck in the tilt-up position.
3. Clean grass buildup underneath the deck using
a pressure washer (and scraper if required).
NOTE: While some degree of material buildup
in the mower deck housing can be tolerated, a
point is nally reached where cutting quality
deteriorates and clogging begins to occur
because of too much buildup on the bafing and
housing.
4. Lower the deck to the normal operating position
and re-engage the deck lock levers.
CAUTION
Do not operate machine with deck tilt-up
pivot joint unlocked.
