Walker MDD (20.9 HP) Lawn Mower User Manual



Operating Instructions
28
THROTTLE
BLADE CLUTCH (PTO)
Pull Up to Engage
PARKING
BRAKE
LEFT WHEEL
STEERING LEVER
Reverse Drive
Wheel Motion
Position
RIGHT WHEEL
STEERING LEVER
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
FORWARD SPEED
CONTROL LEVER (FSC)
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Neutral-Park
Position
Disengaged
Position
Idle
Position
Engaged
Position
Fast
Throttle
Position
Engaged
Position
Disengaged
Position
Forward Position
(No Control Change)
Neutral-Park
Position

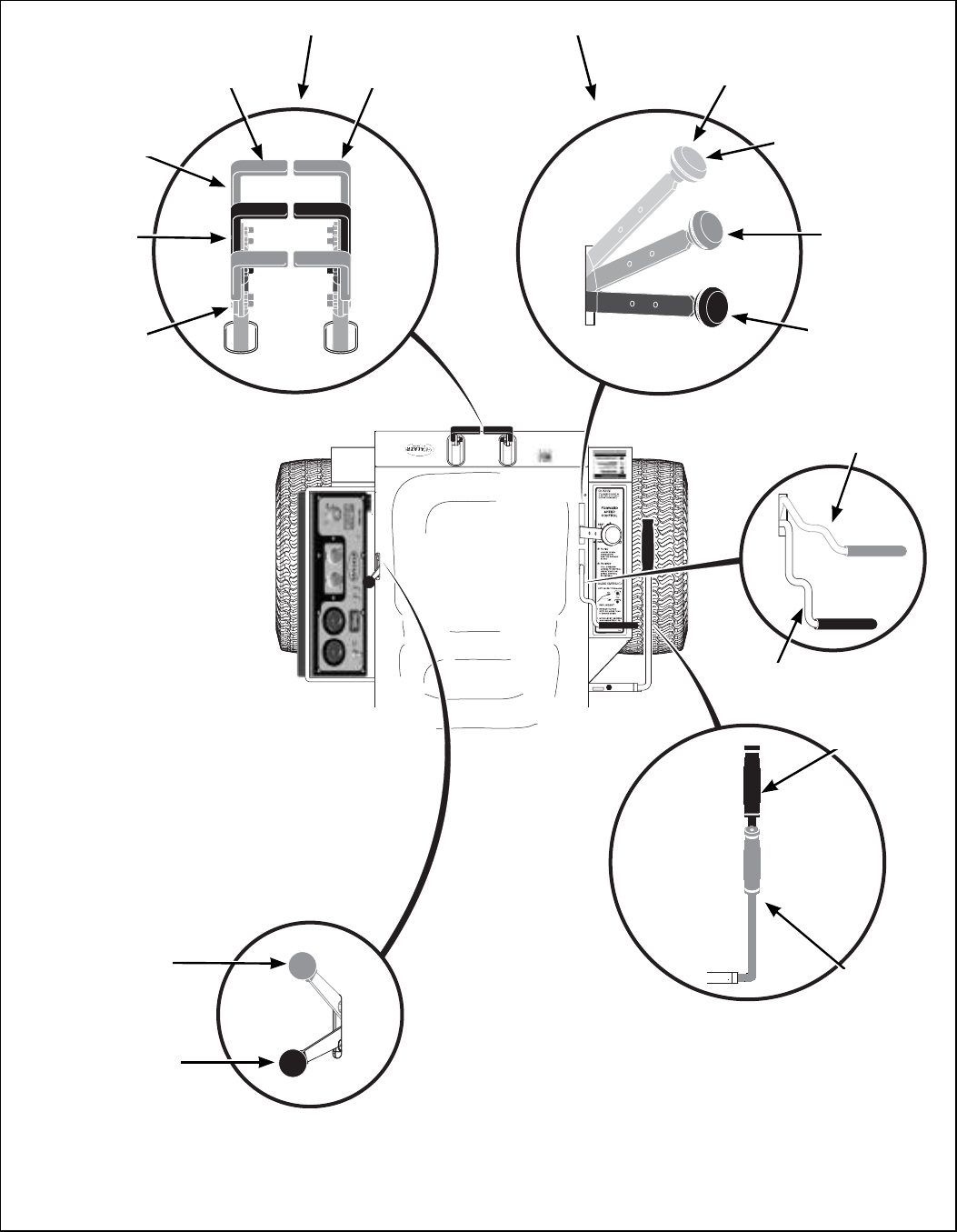

Operating Controls (Top View from Drivers Point of View)
