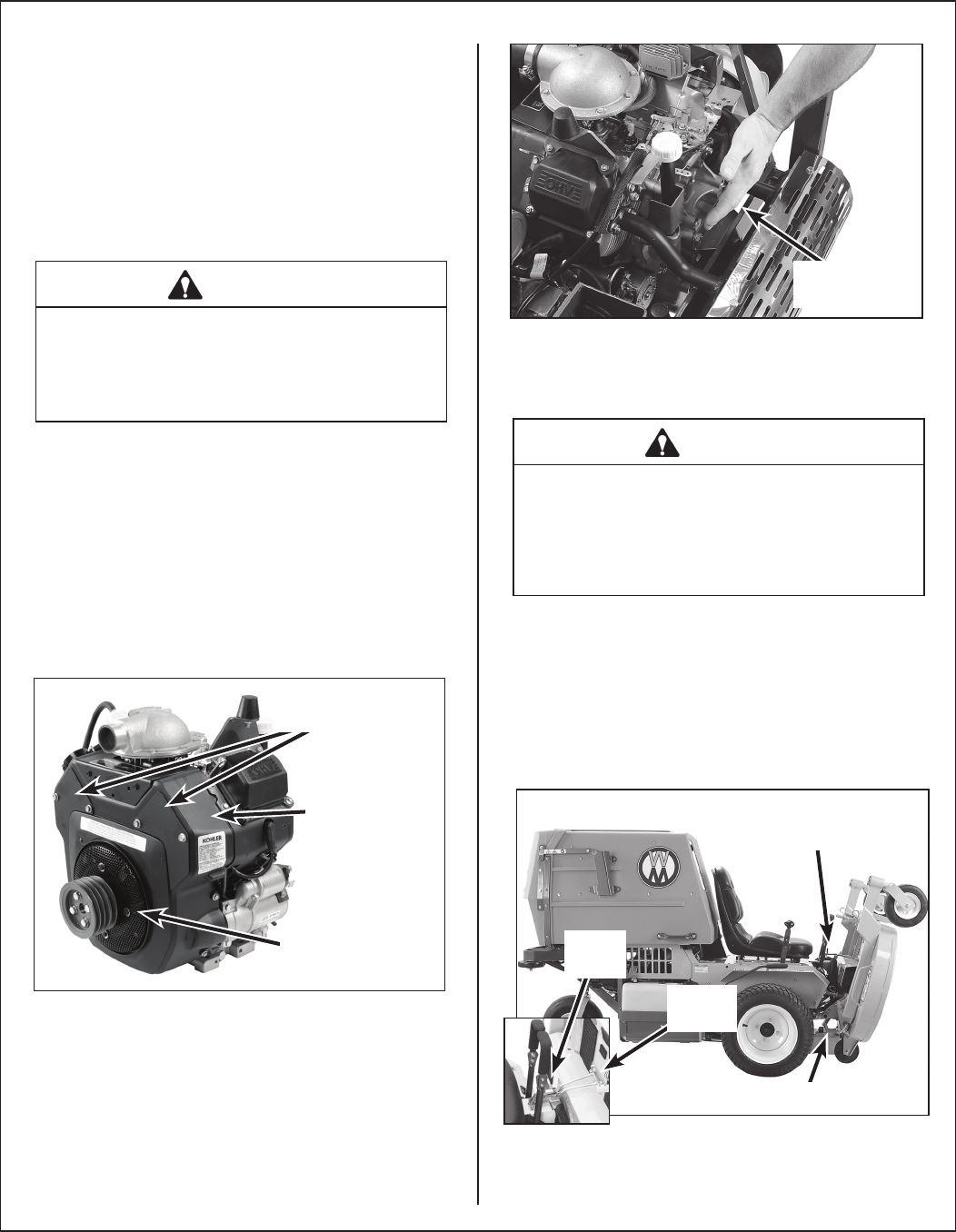

Maintenance Instructions CLEANING
57
Cylinder Head Cooling Fins
It is essential for performance and longevity of the
air-cooled engine to keep the cylinder head cooling
ns clean and free of obstruction. After every 8
hours of operation, check the performance of the
cooling system by starting the engine, holding a
hand adjacent to the cylinder head, and feeling the
cooling airow. If there is little or no airow, clean
the cooling ns as described below.
DANGER
Make sure to keep hands clear of exhaust
pipe, mufer, and moving parts when
checking airow.
Every 100 hours, inspect and clean the cooling ns
(more often when operating in extremely dusty, dirty
conditions). Remove the two (2) cooling n access
panels in the engine shroud and clean the cooling
ns and external surfaces using compressed air.
Make sure to reinstall the access panels before op-
erating the engine.
NOTE: If dirt is packed into the cooling ns it may
be necessary to remove the engine shroud in order
to thoroughly clean the cooling ns.
Engine Cooling
Fin Access Panels
Kohler Engine
Shroud
Engine Cooling Air
Intake Screen
Engine Cooling Air Intake Screen and
Cooling Fin Access Panels
IMPORTANT: Yearly, it is good maintenance prac-
tice to remove the engine cooling shroud and clean
the cylinder head cooling ns thoroughly to prevent
overheating and extend engine life. Make sure cool-
ing shroud is reinstalled properly. This procedure
will require removing the engine from the chassis.
Check Airow
with Hand
Cooling System Airow
Grass Buildup in Mower Deck Housing
DANGER
Before raising or removing the mower
deck for cleaning, stop the engine, re move
the ignition key, and disconnect the spark
plug wires.
1. Raise the deck lock lever handle on each side
of the carrier frame and pull out to release car-
rier frame for tilting action.
2. Using the carrier frame lift handle, raise deck to
the TILT-UP position and insert the deck hook
into the tilt-up latch on the tractor body.
Tilt-Up
Hook
Tilt-Up
Latch
Deck Lock Lever
Tilt-Up Hook and
Latch Connected
Deck Secured in TILT-UP Position
