4.6. REAR COVER REMOVAL & INSTALLATION
1. To remove rear cover, remove six threaded fasten-
ers securing rear cover to machine, and lift cover from
machine. See Figure 4.11. Set components aside.
2. To install rear cover, place cover onto rear of mower,
aligning holes in cover with holes in mower. Secure
cover to mower with threaded fasteners. See
Figure 4.11.
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for all
components to cool.
!
!

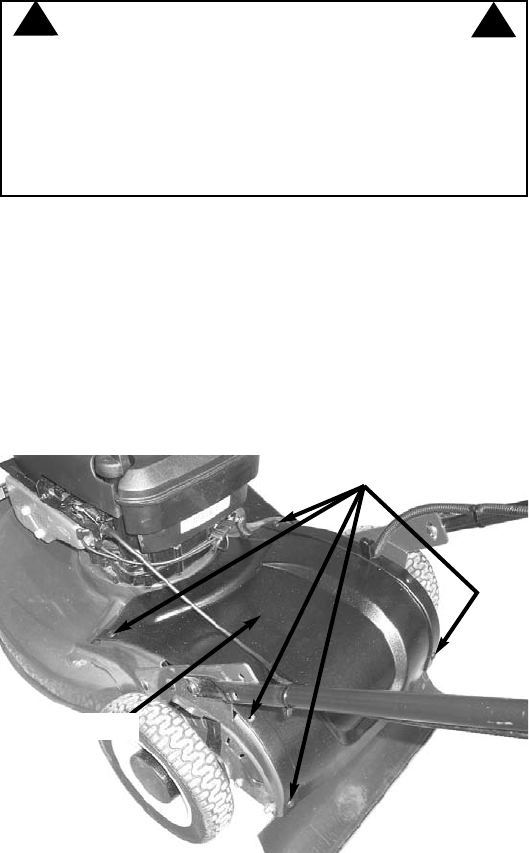

FIGURE 4.11
THREADED
FASTENERS (6)
REAR COVER
