MAINTENANCE
Turbo 120 01/11 Maintenance Section 5-12
©2011 Alamo Group
MAINTENANCE
MAIN CV DRIVELINE SAFETY SHIELD
(FIGURE Mnt-R-0032)

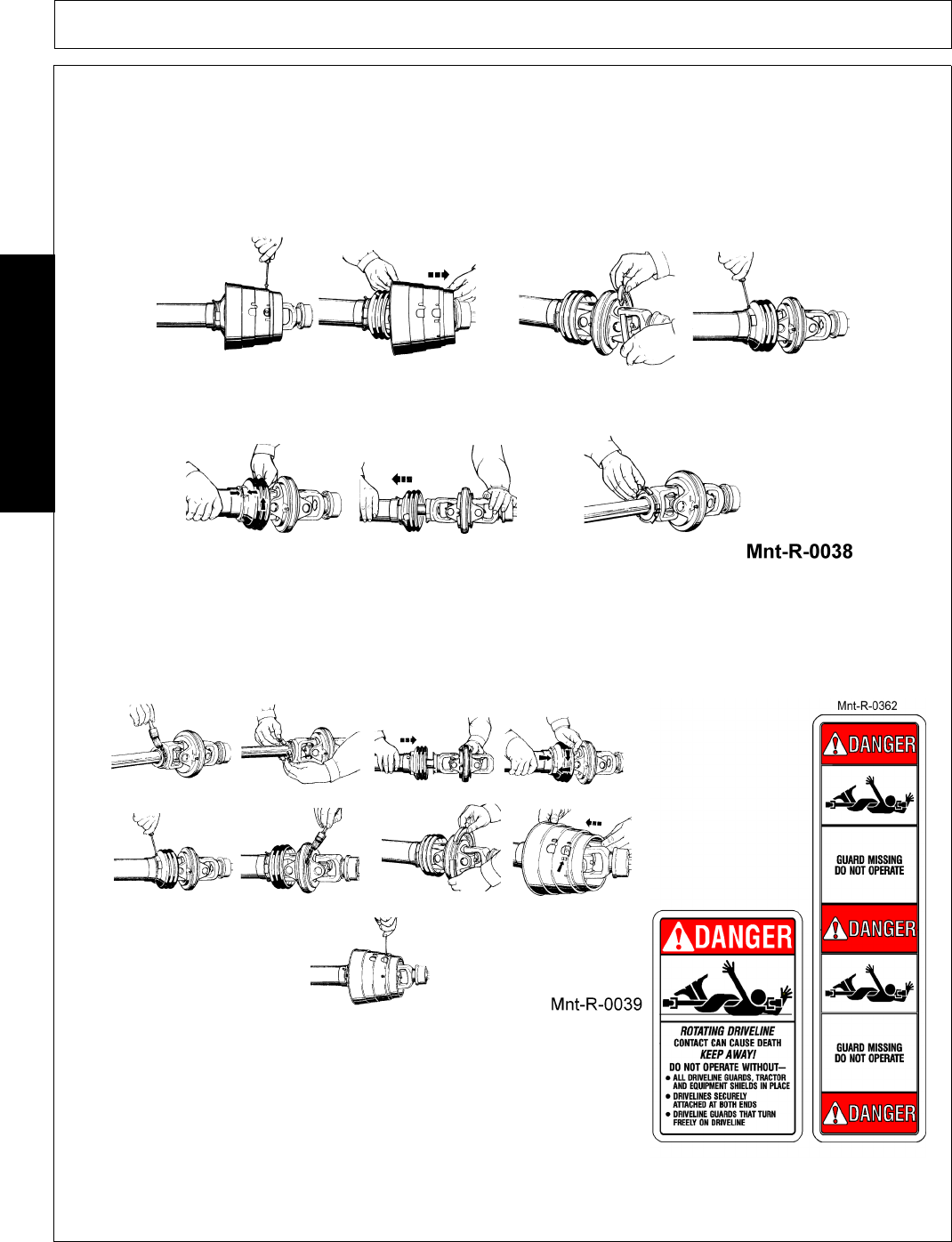

To remove the outer CV cone, remove the locking screws from shield cone. Remove cone over yoke. MNT-R-
0038. Remove bearing ring and remove the locking screws from inner shield cone. Mnt-R-0038. Turn inner
cone to assembly position and remove half shield. Remove bearing ring. MNT-R-0038.
To assemble outer CV driveline, grease yoke groove and inner profile tube. Attach bearing ring on groove with
recesses facing profile tube. Slide on half shield with cone. Turn cone until it engages correctly. Tighten locking
screws. Grease bearing groove in double yoke. Insert bearing ring. Slide guard cone for double yoke over cam
from the connecting end. Make sure holes for screws are visible. Tighten locking screws. MNT-R-0039
Important! Check
that Guard
Missing decal on
steel tube under
inner guard and
Rotating Driveline
Decal are firmly
affixed,
undamaged and
