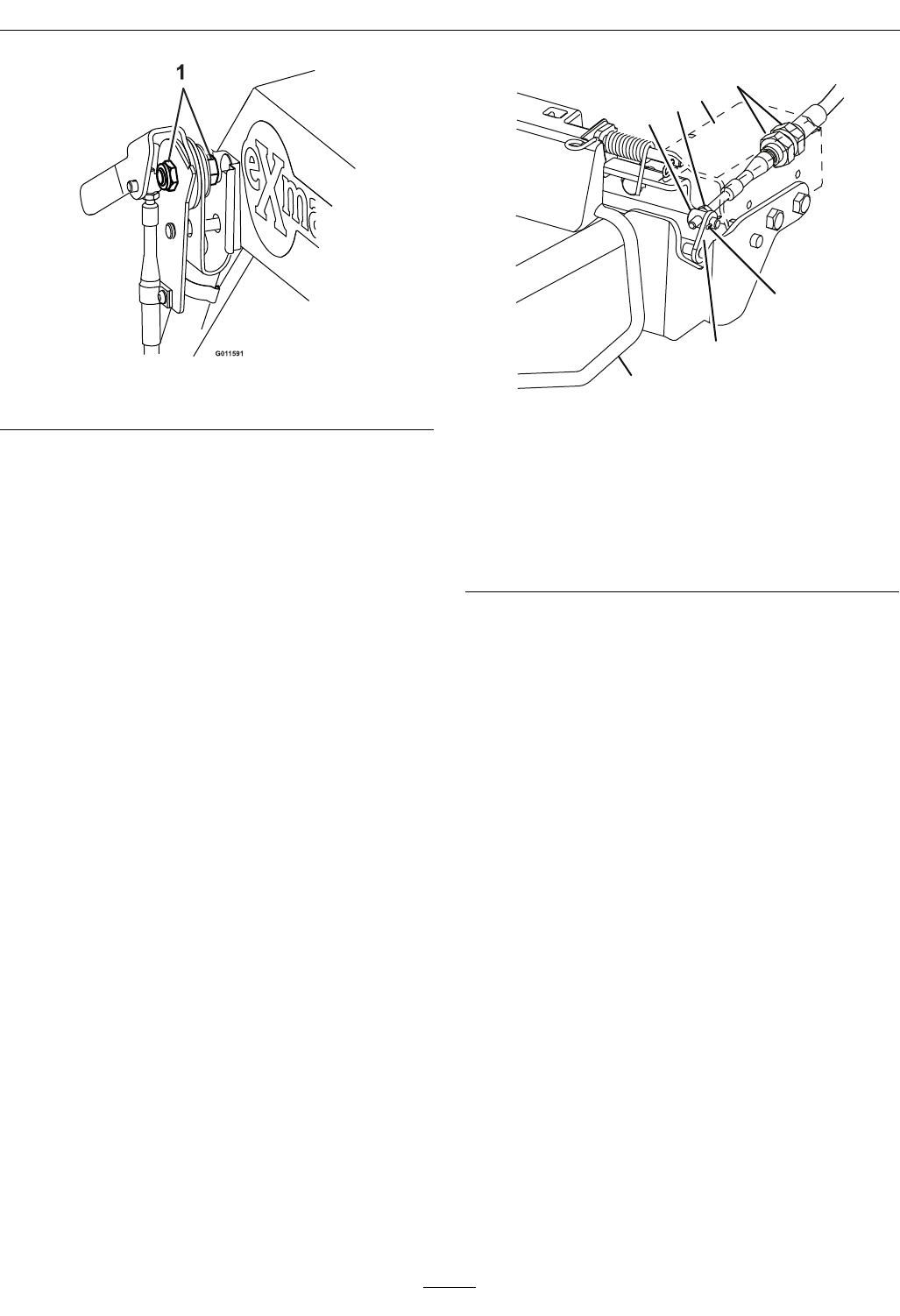

Figure 22
1. Pivot bolt and nut
Discharge Gate Adjustment
The discharge gate is properly adjusted in the closed
position when the discharge gate is at against the
discharge opening.
If the discharge gate does not close at follow the
steps below:
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Place the handle in the closed position, refer to
Closing the Discharge Gate in the Operation
section.
3. Unlock the OCDWB01 assembly and pivot it
away from the mower deck.
4. Adjust the cable nuts located behind and under
the linkage cover (see Figure 23). Turn nuts until
desired gate position is achieved.
1
2
4
3
5
7
6
G012592
Figure 23
1. Cable nuts
2. Linkage cover (shown hidden for clarity)
3. Lock nut
4. Pivot adjuster
5. Discharge deector
6. Gate pivot
7. Cotter pin
5. If more adjustment is necessary, remove the cotter
pin shown in Figure 23.
6. Remove the pivot adjuster from the gate pivot.
7. Loosen the lock nut.
8. Thread the pivot adjuster forward or backward
until desired result is achieved.
9. Tighten the lock nut and reinstall the pivot
adjuster into the gate pivot and secure with the
cotter pin.
10. Repeat steps 4 through 9 until the discharge gate
is properly adjusted.
The discharge gate is properly adjusted in the open
position when the gate handle hits the fully open
stop and the discharge gate makes contact, or almost
makes contact, with the discharge deector.
If the discharge gate does not open fully, repeat steps
4 through 9 to readjust. The discharge gate will not
close as tight against the discharge opening after this
adjustment is made.
