Setup
there will be room to tighten the nut on
the upper hole, on the underside of the
front panel.
C. Drill two 11/32 inch diameter holes on
the front panel as shown in Figure 7.
D. Align the two holes in the mounting
bracket with the front panel of the unit.
Install 5/16-18 x 5/8 inch carriage bolt
through the upper hole and secure with
5/16 inch nyloc nut.

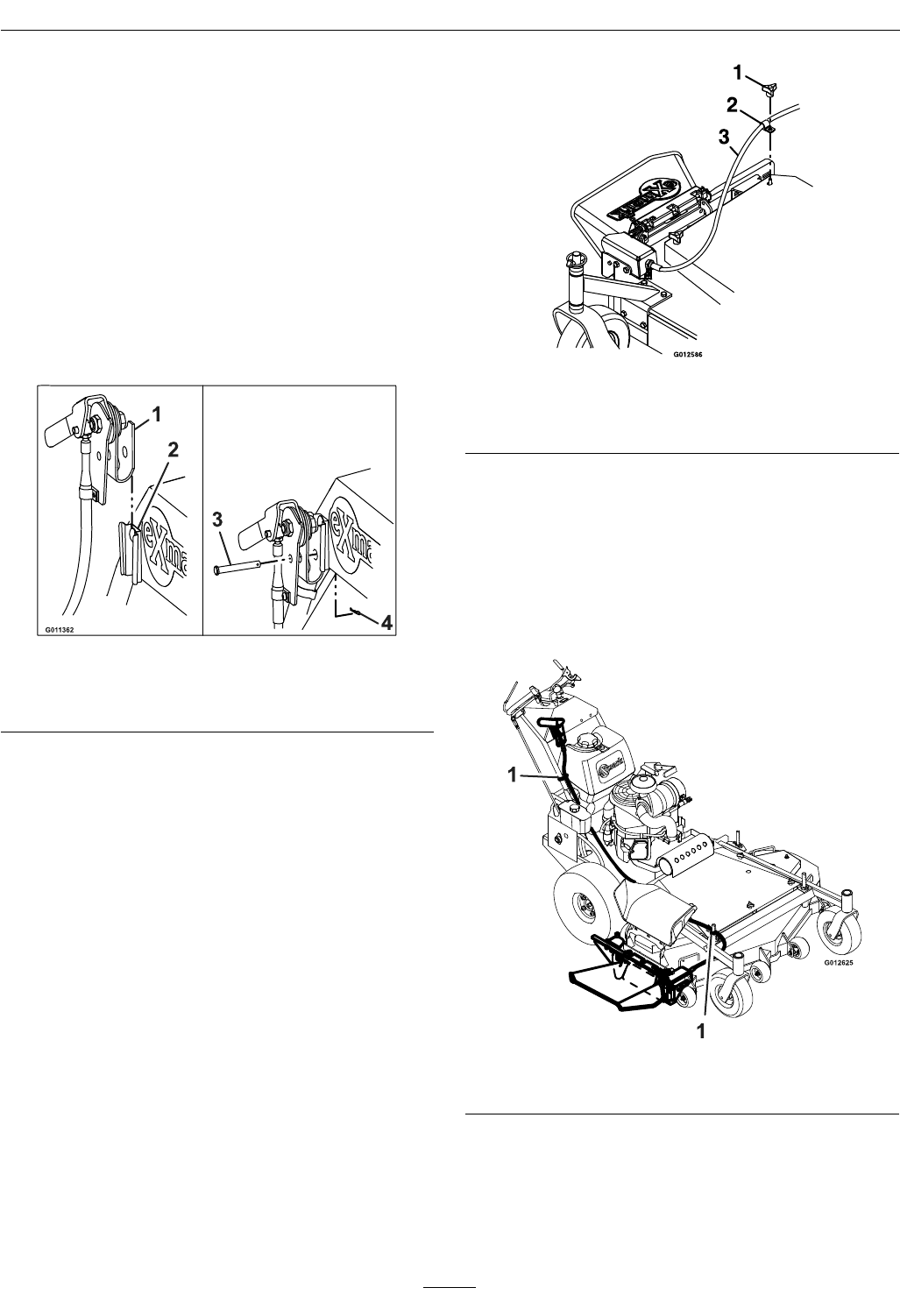

E. Insert the handle assembly into the
mounting bracket as shown in Figure 8.
Figure 8
1. Handle assembly
3. Clevis pin
2. Mounting bracket 4. Hairpin
F. Insert the clevis pin through the handle
assembly hole, into the bottom hole of the
mount bracket and through the front panel
of the unit. Install the hairpin through the
hole on the clevis pin (Figure 8).
G. If the mower deck is not equipped with
belt shield knobs, skip to step H. If the
deck does have belt shield knobs, secure
the loom clip by removing the rear knob
on the belt shield. Place the loom clip
onto the belt shield stud and reinstall the
knob onto the belt shield (Figure 9).
Figure 9
1. Knob 3. Handle assembly cable
2. Loom clip
H. Use velcro straps to secure the cable as
shown in Figure 10.
Important: Keep the cable away from
heat sources such as the mufer and
manifold.
Important: Belt shields must be in
place before operating the OCDWB01.
Figure 10
1. Velcro strap
• For Vantage Units:
A. The bracket is installed on the left side
panel with the wide opening pointed
toward the rear of the machine as shown
in Figure 11.
10
