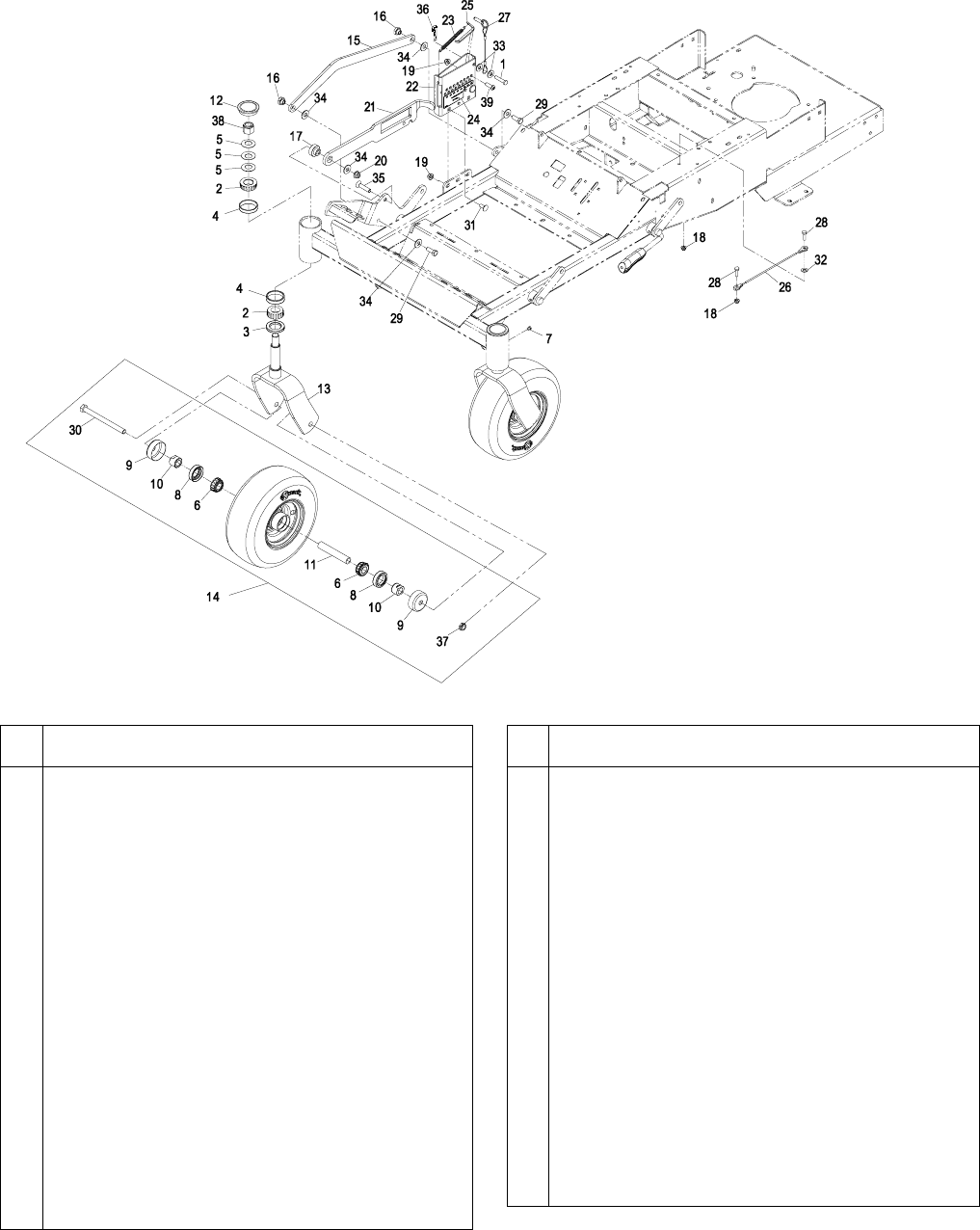

FRAME GROUP (cont.)
-6-
Item
Part No.
Description
Qty.
1 283-6 Pin, Clevis 5/16 x 1 1/4 ..........................1
2 1-543509 Cone, Bearing Tapered Roller................4
3 1-543511 Seal, Grease..........................................2
4 1-543508 Cup, Bearing Tapered Roller .................4
5 1-633508 Washer, Spring Disc ..............................6
6 1-633585 Bearing, Cone Tapered Roller................4
7 1-811010 Plug .......................................................2
8 103-0063 Seal, Double Lip.....................................4
9 103-2768 Guard, Seal............................................4
10 103-3051 Spacer, Nut............................................4
11 103-3157 Axle, Caster...........................................2
12 103-4882 Cap, Grease ..........................................2
13 103-8618-01 Wld, Caster Fork....................................2
14 112-3810 Asm, Wheel And Bearings .....................2
15 103-9932 Link, Deck Control..................................1
16 103-9933 Nut, Shoulder.........................................2
17 103-9934 Bushing..................................................1
18 104-7201 Nut, Nyloc 1/4-20 Flg .............................2
19 104-8300 Nut, Nyloc 5/16-18 Flg ...........................3
20 104-8301 Nut, Nyloc 3/8-16 Flg .............................1
Item
Part No.
Description
Qty.
21 116-0199 Bar, Height Adjust..................................1
22 109-3544 Asm, Height Adjust W/Decal..................1
23 109-2416 Spring, Extension...................................1
24 109-2463 Decal, Deck Height................................1
25 109-2620 Pawl, Height Control..............................1
26 109-2628 Cable.....................................................1
27 109-3323 Asm, Height Pin W/Lanyard...................1
28 321-5 Screw, HH 1/4-20 x 7/8..........................2
29 323-6 Screw, HH 3/8-16 x 1.............................2
30 325-20 Screw, HH 1/2-13 x 6.............................2
31 3230-23 Bolt, Carriage 5/16-18 x 3/4...................2
32 3256-23 Washer, 5/16 SAE.................................1
33 1-303334 Washer, Spring Disc 5/16......................2
34 63-8410 Washer..................................................5
35 3289-19 Screw, Flat HD 3/8-16 x 1 3/4................1
36 1-806003 Hairpin, Cotter .......................................1
37 3296-45 Nut, Nyloc 1/2-13 Thin...........................2
38 3296-51 Nut, Nyloc 3/4-10...................................2
39 3274-104 Screw, Button Head 5/16-18 x 1 ............1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut Item #10.
