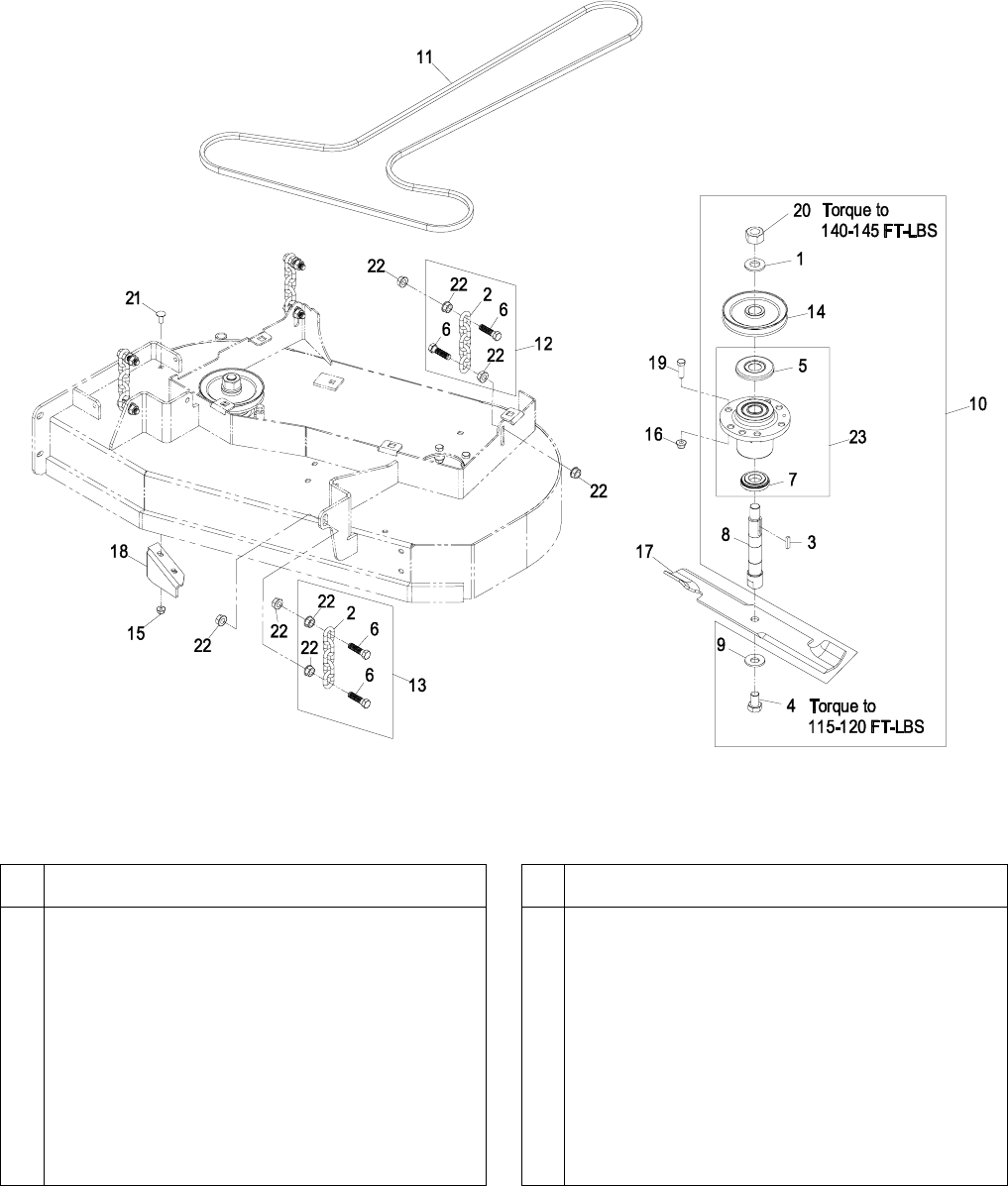

34” DECK GROUP (cont)
-4-
Item Part No. Description Qty.
1 1-513208 Washer, Spring Disc 5/8.........................2
2 1-633447 Chain, Deck Lift......................................4
3 1-807268 Key, Machine 1/4 x 3/16 x 1...................2
4 103-1026 Screw, HH 5/8-11 x 1 Gr 8.....................2
5+
103-1330 Guard, Bearing Top................................2
6 103-1898 Screw, HH 7/16-20 x 1-5/8 Sp................8
7 103-2535 Spacer, Guard Bottom ...........................2
8+
103-2788 Spindle...................................................2
9 103-2802 Washer, Spring Disc 3/4.........................2
10 109-3522 Asm, Cutter Housing Complete..............2
11 103-9366 Belt, Blade .............................................1
12 103-9792 Asm, Chain Deck ...................................1
13 103-9817 Asm, Chain Deck ...................................3
Item Part No. Description Qty.
14+
103-9953 Sheave, Blade Drive..............................2
15 104-8300 Nut, Nyloc 5/16-18 Flg...........................2
16 104-8301 Nut, Nyloc 3/8-16 Flg.............................12
17 109-2548 Blade, 17.5 Standard.............................2
109-2551 Blade, Low lift........................................2
■ 109-3129 Blade, Mulch..........................................2
109-2549 Blade, Solid...........................................2
18 109-2610-01 Baffle, Discharge ...................................1
19 323-7 Screw, HH 3/8-16 x 1 1/4.......................12
20 3217-46 Nut, Hex 3/4-16 Heavy...........................2
21 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck 2
22 32128-37 Nut, Whizlock 7/16-14............................16
23 103-8280 Kit, Cutter Housing.................................2
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Anti-scalp kit P/N AS34 is available for this unit.
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings
and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.
Q Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK343.
+ Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut.
