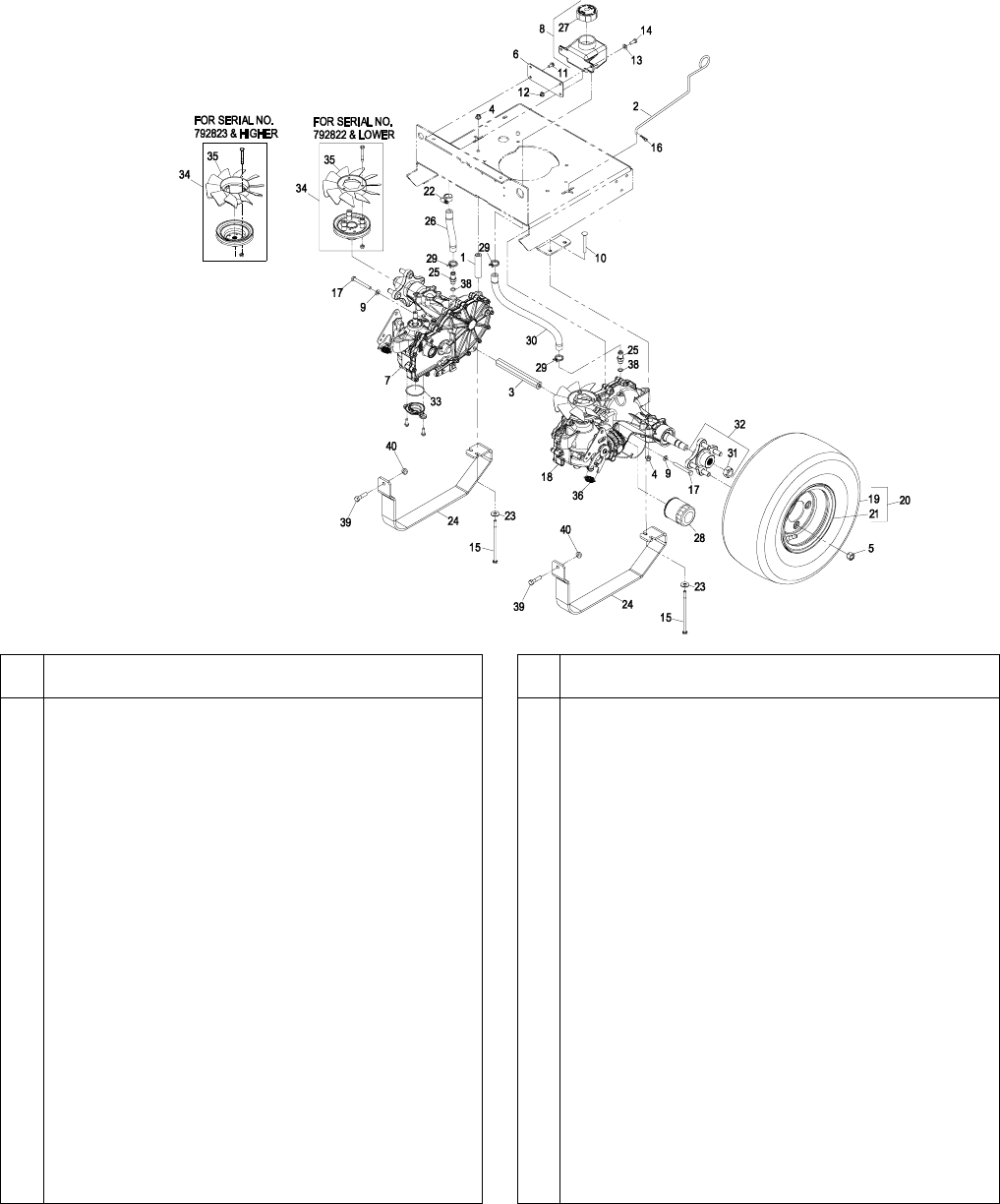

TRANSAXLE GROUP
-12-
Item
Part No.
Description
Qty.
1 103-9397 Spacer, Hydro........................................2
2 103-9380 Rod, Hydro Bypass................................2
3 103-9398 Spacer, Axle ..........................................1
4 104-8300 Nut, Nyloc 5/16-18 Flg ...........................6
5 242-50 Nut, Lug 1/2-20......................................8
6 103-9350-03 Plate, Tank Mount..................................1
7 116-1204 Asm, Transaxle (RH)..............................1
8 109-2250 Tank, Hydraulic......................................1
9 98-5975 Washer, Spring Disc 3/8.........................2
10 3230-9 Bolt, Carriage 5/16-18 x 2 3/4.................4
11 32144-4 Screw, HWH 1/2-20 x 1/2 Taptite...........2
12 104-7201 Nut, Nyloc 1/4-20 Flg .............................2
13 3256-22 Washer, 1/4 SAE ...................................2
14 321-4 Screw, HH 1/4-20 x 3/4..........................2
15 1-800286 Screw, HH 5/16-18 x 6...........................2
16 1-806003 Hairpin, Cotter........................................2
17O 323-11 Screw, HH 3/8-16 x 2 1/4.......................2
18 116-1205 Asm, Transaxle (LH)..............................1
19 109-2594 Tire, 18 x 7.00-8 4 Ply............................2
20 109-2595 Asm, Wheel & Tire.................................2
21 109-2596 Wheel ....................................................2
Item
Part No.
Description
Qty.
22 109-6801 Clamp, Hose..........................................1
23 3256-3 Washer..................................................2
24 114-0469-03 Guard, Transmission..............................1
25 109-3278 Adapter, Straight....................................2
26 109-3319 Hose, Hydraulic.....................................1
27 109-3320 Cap, Hydraulic Reservoir.......................1
28 109-3321 Filter, Hydraulic......................................1
29 109-3322 Clamp, Hose..........................................3
30 109-3459 Hose, Hydraulic.....................................1
31 109-3536 Nut, Hub................................................2
32 109-3538 Kit, Hub..................................................2
33 109-3540 O-Ring, Charge Cover Seal...................2
34Q 116-0172 Kit, Fan And Pulley................................2
x
116-1207 Kit, Fan And Pulley................................2
35Q 116-0173 Fan,7”-10 Blade.....................................2
x
116-1206 Fan,7”-10 Blade.....................................2
36 109-2631 Spring, Extension...................................2
37V 109-3537 Kit, Seal.................................................2
38 1-603921 O-Ring, SAE #6.....................................2
39 323-8 Screw, HH 3/8-16 x 1 1/2.......................2
40 3290-357 Nut, Whizlock 3/8-16..............................2
Exmark black touch up spray paint – gloss black.
LH and RH transmission comes complete with items #28, #31, #32, #33, #34, #35, #36, & #37
O Use Pro-Lock, Nut type (P/N 1-840022, .5ml tube) screw.
V Item not shown
Q For Serial No. 792822 & Lower.
x For Serial No. 792823 & Higher.
