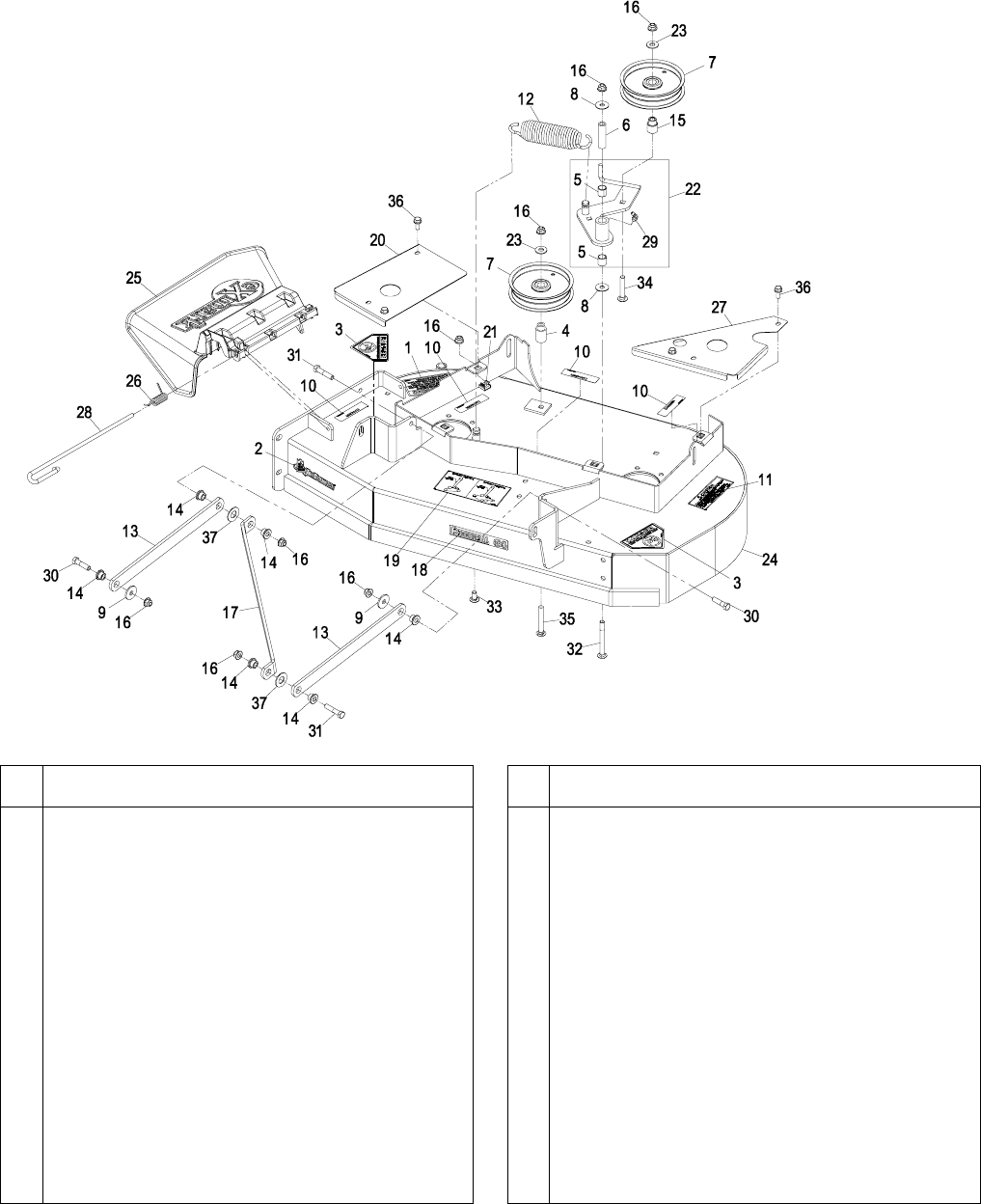

34” DECK GROUP
-3-
Item Part No. Description Qty.
1 1-303508 Decal, Discharge Warning......................1
2 1-303520 Decal, Trivantage...................................1
3 1-403005 Decal, Danger........................................2
4 1-413113 Bushing, Idler.........................................1
5 1-513034 Sleeve, Bearing......................................2
6 1-603384 Bushing, Idler Pivot................................1
7 1-613098 Idler, Flat................................................2
8 52-2860 Washer ..................................................2
9 63-8410 Washer ..................................................2
10 98-5954 Decal-Danger.........................................4
11 103-1077 Decal, Bolt Torque.................................1
12 103-3330 Spring, Extension...................................1
13 103-3898 Flat, Strut...............................................2
14 103-3900 Spacer, Strut..........................................6
15 103-9948 Bushing, Idler.........................................1
16 104-8301 Nut, Nyloc 3/8-16 Flg .............................8
17 109-0381 Brace, Deck Linkage..............................1
18 109-2462 Decal, Commercial 34............................1
19 109-2465 Decal, Belt Routing ................................1
Item Part No. Description Qty.
20 109-3086-01 Cover, RH Spindle.................................1
21 109-3100 Nut, Cage 5/16.......................................4
22 109-3891 Asm, Idler Arm W/Bearings....................1
23 3256-4 Washer, 3/8 Std.....................................2
24■ 109-9467 Asm, Deck W/Decals.............................1
25 109-5150 Chute, Discharge...................................1
26 109-6886 Spring, Torsion ......................................1
27 109-9441-01 Cover, Left Spindle................................1
28 109-9461 Pin, Chute..............................................1
29 302-40 Zerk, 90° 1/4-28.....................................1
30 323-8 Screw, HH 3/8-16 x 1 1/2.......................2
31 323-9 Screw, HH 3/8-16 x 1 3/4.......................2
32 3231-11 Bolt, Carriage 3/8-16 x 3 1/2..................1
33 3231-21 Bolt, Carriage 3/8-16 x 3/4.....................1
34 3231-7 Bolt, Carriage 3/8-16 x 2 1/4..................1
35 3231-9 Bolt, Carriage 3/8-16 x 2 3/4..................1
36 3234-47 Screw, HH FLG 5/16-18 x 3/4................4
37 3256-27 Washer, 5/8 SAE...................................2
38▲ 109-9473 Asm, Deck Complete.............................1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
V Includes all item shown on pages 3 & 4. Does not include struts or strut hardware.
■ Includes items 25, 26, & 28.
