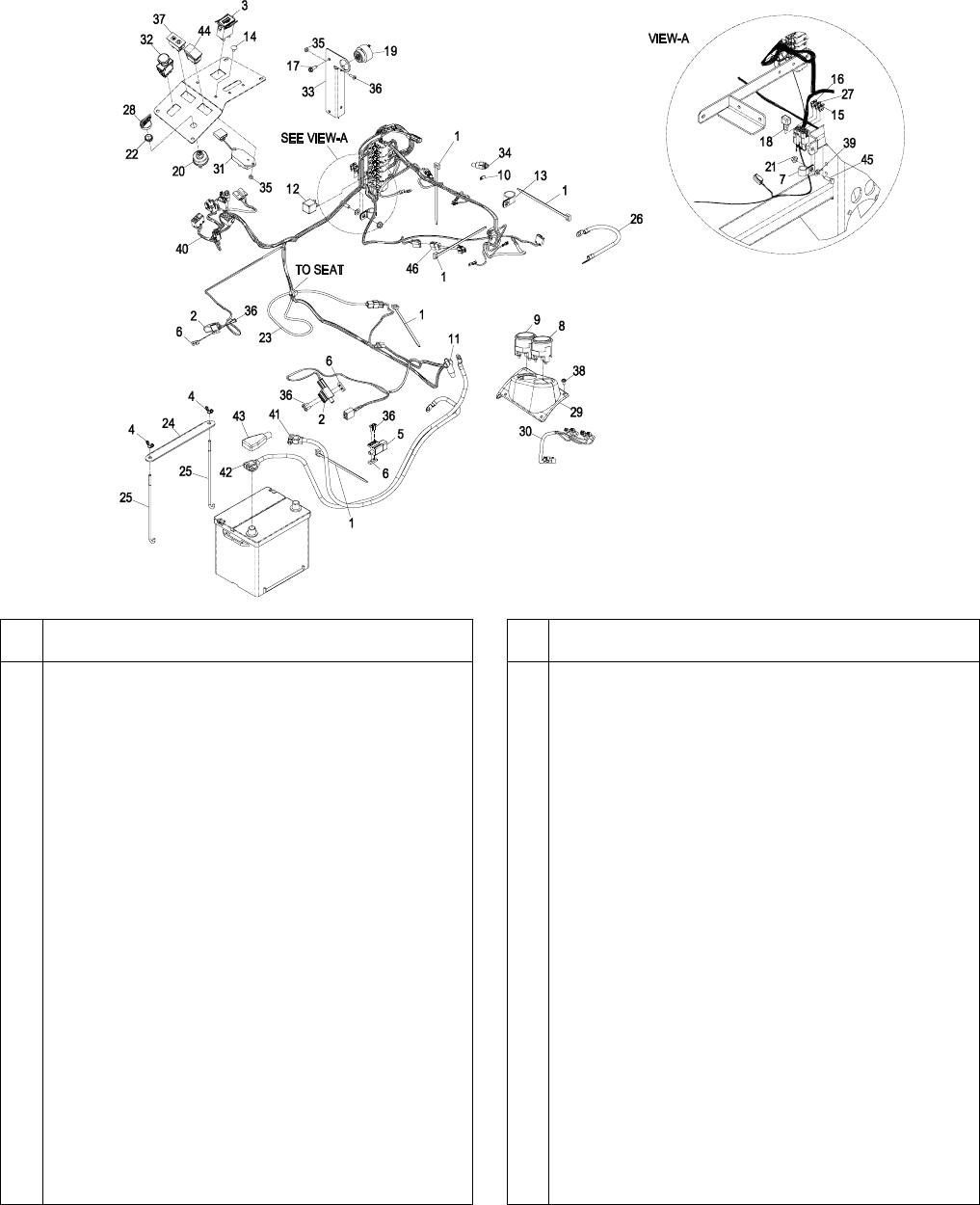

ELECTRICAL GROUP
-25-
Item
Part No.
Description
Qty.
1 1-303335 Tie, Cable 7 15/16 (Large) .....................5
2 1-513051 Switch, N.O............................................2
3 1-513374 Meter, Engine Hours..............................1
4 1-543792 Wingnut, Nyloc 1/4-20............................2
5 1-633111 Switch....................................................1
6 1-633181 Plate, Tapped ........................................3
7 1-633396 Clip, Loom 5/8........................................1
8 1-643021 Gauge, Temperature..............................1
9 1-643037 Gauge, Voltmeter...................................1
10 1-643145 Tab #10 Stud X .25 Spade 45................1
11 103-1420 Insulator, Starter ....................................1
12 1-643275 Relay, 12VDC 40 Amp...........................5
13 1-643312 Clip, Loom .............................................1
14 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
15 1-816001 Fuse, 20 Amp ........................................1
16 1-816003 Fuse, 30 Amp ........................................1
17 49-2040 Screw, HWH 1/4-20 x 3/4 TF .................2
18 100-4918 Diode.....................................................1
19 103-0205 Alarm, Dual Tone 12VDC.......................1
20 109-4736 Switch, Ignition W/Keys .........................1
21 32128-20 Nut, Whizlock 5/16-18............................1
22 103-0498 Nut, Ignition............................................1
23 103-1227 Harness, Wiring Seat.............................1
Item
Part No.
Description
Qty.
24 103-1311-03 Holddown, Battery .................................1
25 103-1312 Bolt, Battery Hold Down.........................2
26 103-1349 Cable, Engine Ground ...........................1
27 103-1368 Fuse, 40 Amp........................................1
28 103-2106 Key, Exmark Logo .................................1
29 103-3684 Bezel, Guage.........................................1
30X 103-4339 Harness-Gauge .....................................1
31 103-5218 Module, Seat Delay ...............................1
32 103-5221 Switch, PTO ..........................................1
33 109-3495 Asm, Relay Mount Bracket....................1
34Q 103-7886 Sender, Temperature.............................1
35 3296-2 Nut, Nyloc #10-24..................................4
36 3290-500 Screw, PPH #10-24 x 5/8.......................8
37 109-2488 Light Cluster ..........................................1
38 109-2661 Screw, PPH #10-24 x 1/2.......................4
39 3256-23 Washer, 5/16 SAE.................................1
40 109-8734 Harness.................................................1
41 109-3074 Cable-Battery (-) ...................................1
42O 109-7607 Asm, Cable-Battery (+)..........................1
43 103-1340 Insulator, Battery ...................................1
44 110-0811 Switch....................................................1
45 322-4 Screw, HH 5/16-18 x 7/8........................1
46 110-8808 Harness, Wire Fuel Pump......................1
Exmark black touch up spray paint – gloss black.
X Use dielectric grease on all wiring harness connectors.
Q Use Teflon pipe sealant on pipe threads on temperature sending unit.
Includes item 28.
O Includes items 11 and 43.
