Exmark 4500-380 Lawn Mower User Manual



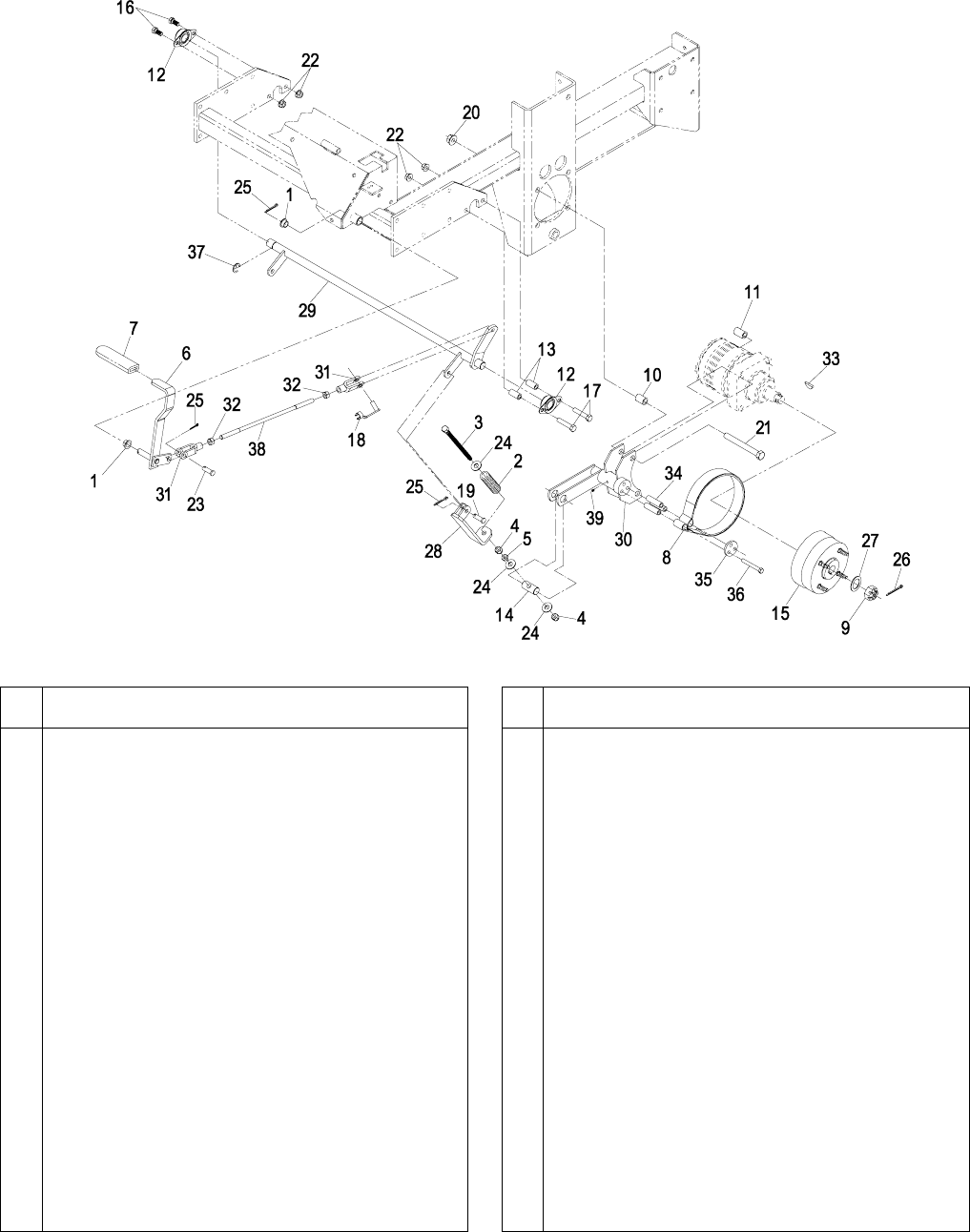

PARK BRAKE GROUP
-13-
Item
Part No.
Description
Qty.
1 1-513140 Bushing..................................................2
2 109-2230 Spring, Brake Rod..................................2
3 323-58 Bolt, HH 3/8-16 x 6 Tap..........................2
4 3296-39 Nut, Nyloc 3/8-16...................................4
5 3218-3 Nut, Jam 3/8-16 .....................................2
6 103-0197 Asm, Lever (103-0201-03) W/Grip .........1
7 1-633268 Grip, Brake Lever...................................1
8 103-9761 Band, Brake...........................................2
9 1-809036 Nut, Slotted 1-20....................................2
10 1-633380 Spacer (Short)(60”)................................4
109-5011 Spacer (Short)(66” & 72”).......................4
11 1-633382 Spacer (Long)(60”).................................4
109-5012 Spacer (Long)(66” & 72”) .......................4
12 1-633102 Bearing, Flange......................................2
13 103-0051 Spacer, Brake Retainer..........................2
14 1-633144 Pin, Trunion ...........................................2
15 103-0590 Asm, Wheel Hub W/Studs & Drum ........2
X
1-633926 Studs, Wheel.........................................8
16 323-4 Screw, HH 3/8-16 x 3/4..........................2
17 323-10 Screw, HH 3/8-16 x 2.............................2
18 103-2399 Pin, Clevis Spring 3/8.............................1
19 1-808284 Pin, Clevis 3/8 x 1..................................2
Item
Part No.
Description
Qty.
20 32128-49 Nut, Whizlock 1/2-13 .............................8
21 325-17 Screw, HH 1/2-13 x 4 (60”) ....................8
325-22 Screw, HH 1/2-13 x 5 1/2 (66” & 72”).....8
22 3290-357 Nut, Whizlock 3/8-16 .............................4
23 1-808285 Pin, Clevis 3/8 x 1 1/8............................1
24 3256-4 Washer, 3/8 Std.....................................6
25 3272-10 Pin, Cotter 1/8 x 3/4...............................4
26 1-806800 Pin, Cotter 9/64 x 1 1/2..........................2
27 1-523157 Washer, Spacer.....................................2
28 103-1117-03 Lower Brake Linkage............................2
29 103-5243-03 Brake Shaft............................................1
30 103-0844-03 Bracket, Brake (60”)...............................2
103-0810-03 Bracket, Brake (66” & 72”).....................2
31 1-633131 Yoke......................................................2
32 3219-3 Nut, Hex 3/8-24......................................2
33 3257-42 Key, Woodruff 5/16 x 1..........................2
34 103-0384 Spacer...................................................6
35 103-0374 Retainer, Brake Band ............................2
36 322-9 Screw, HH .312-18 x 1.75......................6
37 32151-48 E-Ring ...................................................1
38 103-1708 Rod, Brake ............................................1
39 1481 Zerk, 45° 1/4-28.....................................2
Exmark black touch up spray paint – Gloss black
X Not Illustrated.
