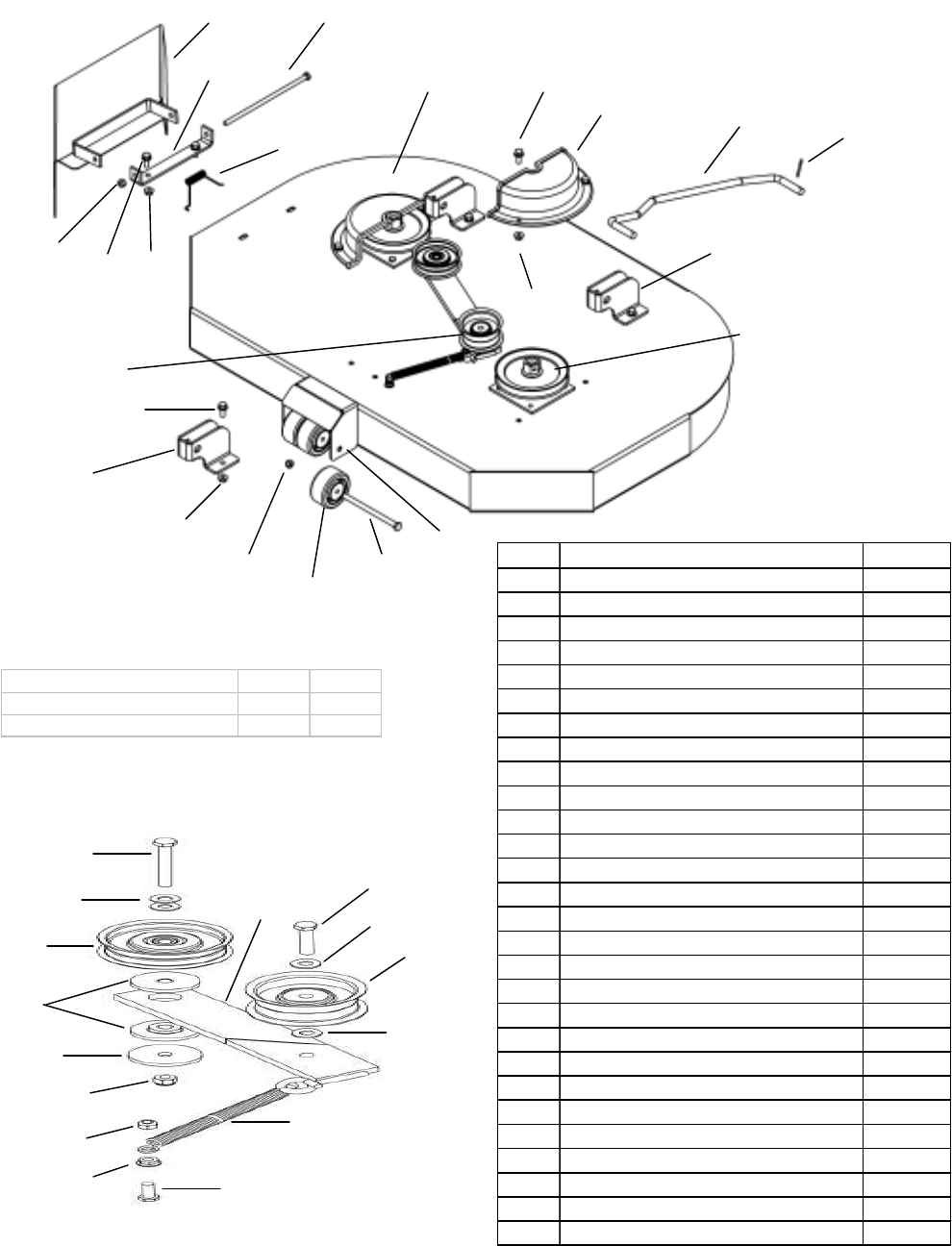

DECK IDLER
36” MOWING DECK
SEE DETAIL
THIS PAGE
5 6
7
8
9
10
13
14
15
8
11
6
86
21
4
1
2
3
SEE DETAIL
11
16
17
26
24
25
17
17
22
23
8
21
20
19
12
NOT SHOWN
Roller Bracket (12) Mounting Hardware
Page 16
DESCRIPTION PART # QTY
5/16-18 X 3/4 Serr Flg Bolt NB596 2
5/16-18 Serrated Flange Nut NB170 2
18
27
Item # Description Part #
1 Grass Chute Weldment 3757TK
2 Grass Chute Mount 6030
3 5/16-18 X 8 1/2 HCC GR2 ZP NB136
4 Torsion Spring - Bent Leg 9100
5 Deck Weldment 3750TC
6 5/16-18 X 3/4 Serr Flg Bolt NB596
7 Pulley Cover 3743
8 5/16-18 Serrated Flange Nut NB170
9 Sway Bar Left 3665
Sway Bar Right 3664
10 1/8 X 1 Cotter Pin NB126
11 Lift Bracket 3738TK
12 Front Roller Bracket 4018TK
13 3/8-16 X 5 1/2 GR5 ZP NB575
14 Anti-Scalp Roller AS001
15 3/8-16 Nyloc Nut NB182
16 3/8-16 X 2 1/2 HCC GR5 ZP NB221
17 3/8 SAE Washer NB272
18 Idler Pulley B527
19 Idler Bushing 6037
20 Idler Spacer 6040
21 5/16-18 Nyloc Nut NB181
22 5/16-18 X 1 HCC GR5 ZP NB501
23 Clutch Rod Spring 682S
24 Idler Pulley 7509
25 3/8-16 X 2 HCC GR5 ZP NB198
26 Idler Weldment 3848TK
27 3/8-16 2-Way Lock Nut NB280
26
