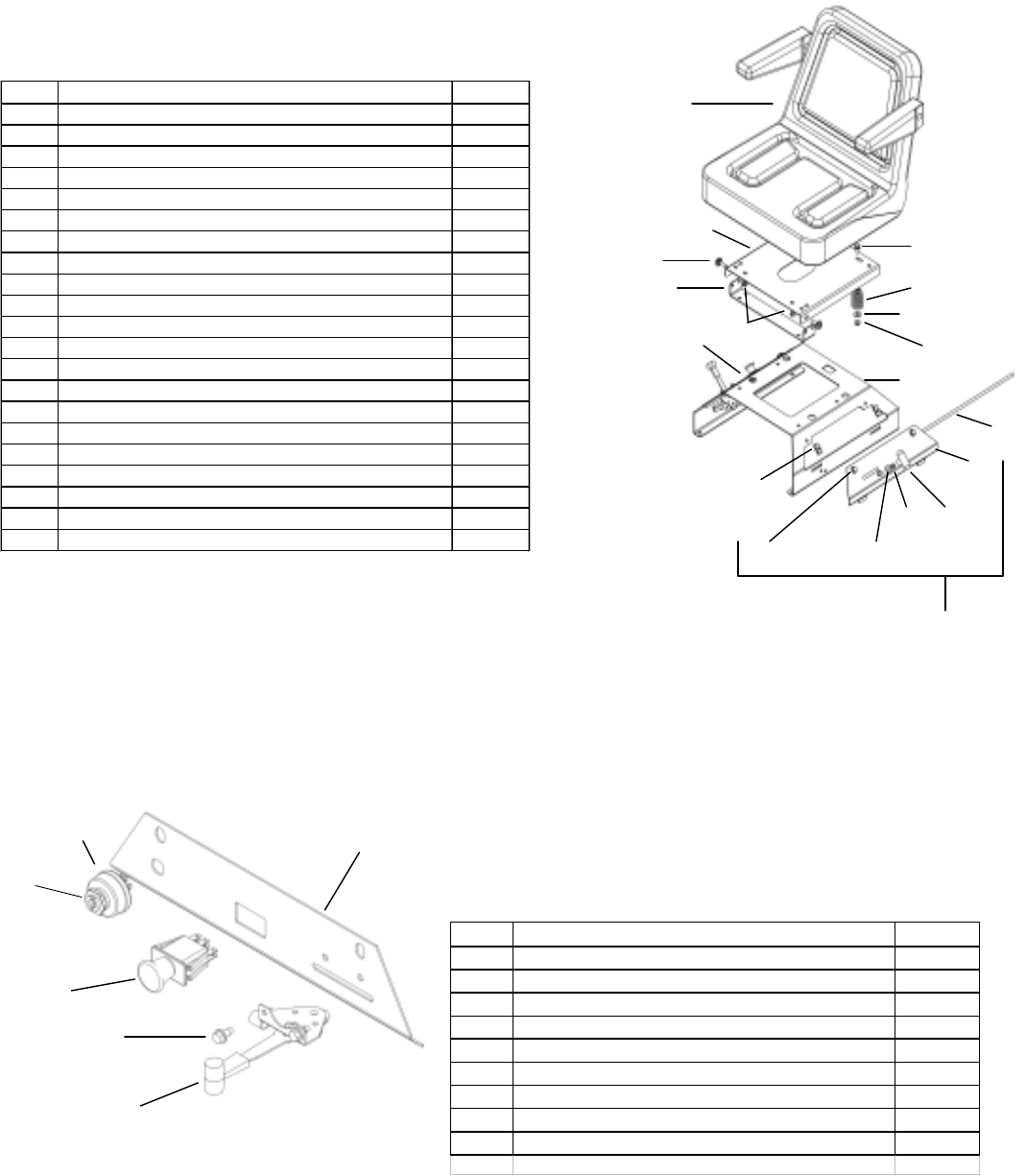

CONTROL COVER
SEAT BASE ASSEMBLY
SEE CONTROL
COVER DETAIL
THIS PAGE
Item # Description Part #
1 Seat 15" Back No Arm Rest (36" Mower Only) 3790
Seat 15" Back With Arm Rest (42" Mower Only) 3791
Seat 18" Back With Arm Rest (50" Mower Only) 3792
2 Seat Plate 3133TK
3 5/16-18 Shoulder Bolt NB743
4 Seat Bracket 3833TK
5 5/16-18 Nyloc Nut NB181
6 Tinnerman Clip 5/16-18 3706
7 5/16-18 X 3/4 Serr Flg Bolt NB596
8 5/16 ID X 1 1/4 OD 11GA Black Nylon Washer NB116
9 5/16-18 Jam Nut NB173
10 T Knob 5/16-18 3844
11 Control Cover 3393TK
Control Cover (36" Mower Only) 3645TK
12 Brake Linkage Rod 3390Z
E-Brake Link Rod (36" Mower Only) 3651
13 Seat Mount ( 42" & 50" Mower) 3613TK
Seat Mount (36" Mower) 3613TC
14 5/16-18 Serrated Flange Nut NB170
15 5/16 USS Flat Washer ZP NB556
16 Tapered Spring 3609
1
2
14
3
13
7
7
11
10
9
15
4
6
12
5
8
16
Parking Brake For
42” & 50” Mowers
See Page 20 For
Further Details And
36” Mower Set-Up
Item # Description Part #
17 PTO Switch 3605
18 Key Switch 3623
19 Key Switch Nut 9087
Key Switch Washer (Not Shown) 9088
20 1/4-20 X 1/2 MSC ZP Hex Washer NB114
21 Throttle Cable Assembly (36" & 42" Mowers) 3640
Throttle Control 35" (50" Mower Only) 3788
"T" Knob only 4226K
22 Control Cover Instruments (Right Side) 3646TK
19
18
22
17
21
20
19
