7. Remove the bulb assembly by pulling on the flow director while pushing the bulb assembly from
the outside of the pool.
NOTE
The fitting body, threaded wall flange and gaskets may remain attached to the pool wall when winterizing,
but should be removed if pool is to be stored.
8. For storable pools: remove the transformer from its mounting by lifting up and out.
For permanent pools: cover the cord cap on the end of the flexible cord with a plastic bag and
seal with a twist tie or rubber band. Wrap the cord into a coil, cover with a plastic bag and seal.
Elevate cord to prevent contact with ground moisture.
9. Place all the parts together in a box and store indoors.
When reinstalling bulb assembly next season do not use petroleum base product.
CAUTION
Do not use any petroleum base lubricant. Petroleum base products will destroy plastic parts.
Lubricate o-ring with a silicone lubricant only. A new o-ring should be used each time the bulb
assembly is removed.
SECTION. VII. TECHNICAL DATA.

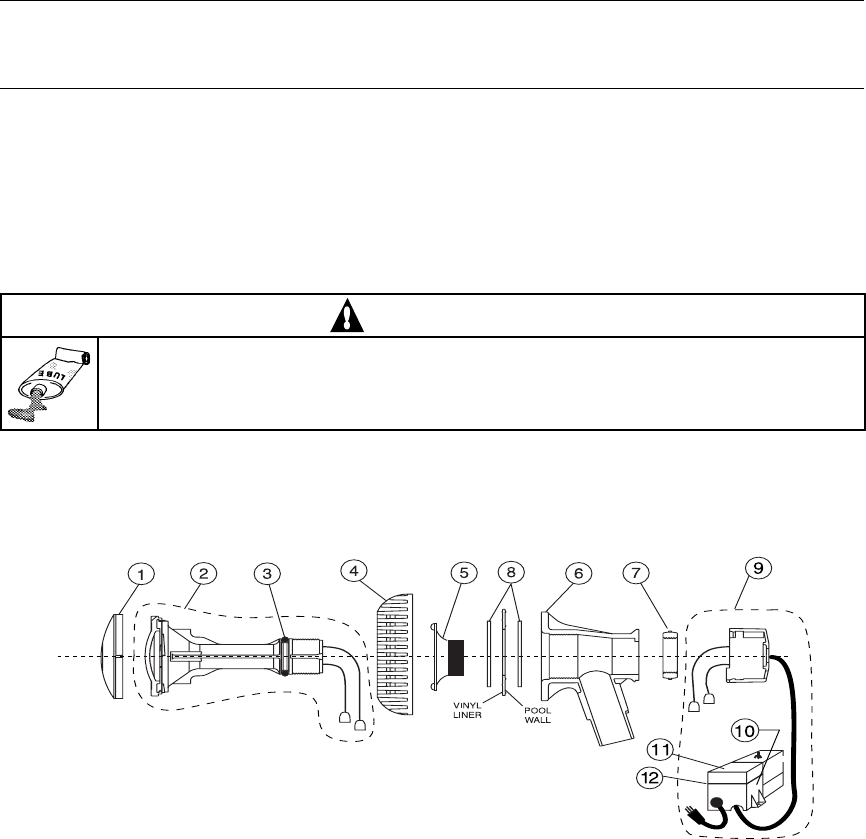

A. REPLACEMENT PARTS.
1. 79123401 Lens, ‘Luxury’, blue
1. 49300000 Lens, ‘Luxury’, red
2. 69100000 Bulb Assembly
3. 79116900 O-ring
4. 79102800 Flow Director
5. 79118300 Wall Flange, Threaded
6. 79126900 Fitting Body
7. 79116600 Nut
8. 79116800 Gasket (2)
9. 83000000 Trans./J-Box Assy. w/snap-on cord cap
79110700 Spacer, Mounting
10. 78800100 J-Box Bottom
11. 87370000 J-Box Top
12. 79401000 J-Box Gasket
