North Star 13000 PTOG Portable Generator User Manual



3
M ACHINE COMPONENT IDENTIFICATION
Ref. Description Ref. Description
1 50A Circuit Breakers 10 120/240V 50A Receptacle
2 30A Circuit Breaker 11 Shield
3 20A Circuit Breakers 12 Gear Box
4 Warning Decals 13 Grounding Screw
5 1 3/8”, 6 Spline Input Shaft 14 Mounting Holes
6 Oil Drain Plug 15 Fan Vents
7 Voltmeter 16 Oil Level Sight
8 120V 20A Duplex
Receptacles
17 Breather/Oil Fill Plug
9 120V 30A Twistlock
Receptacle
00294

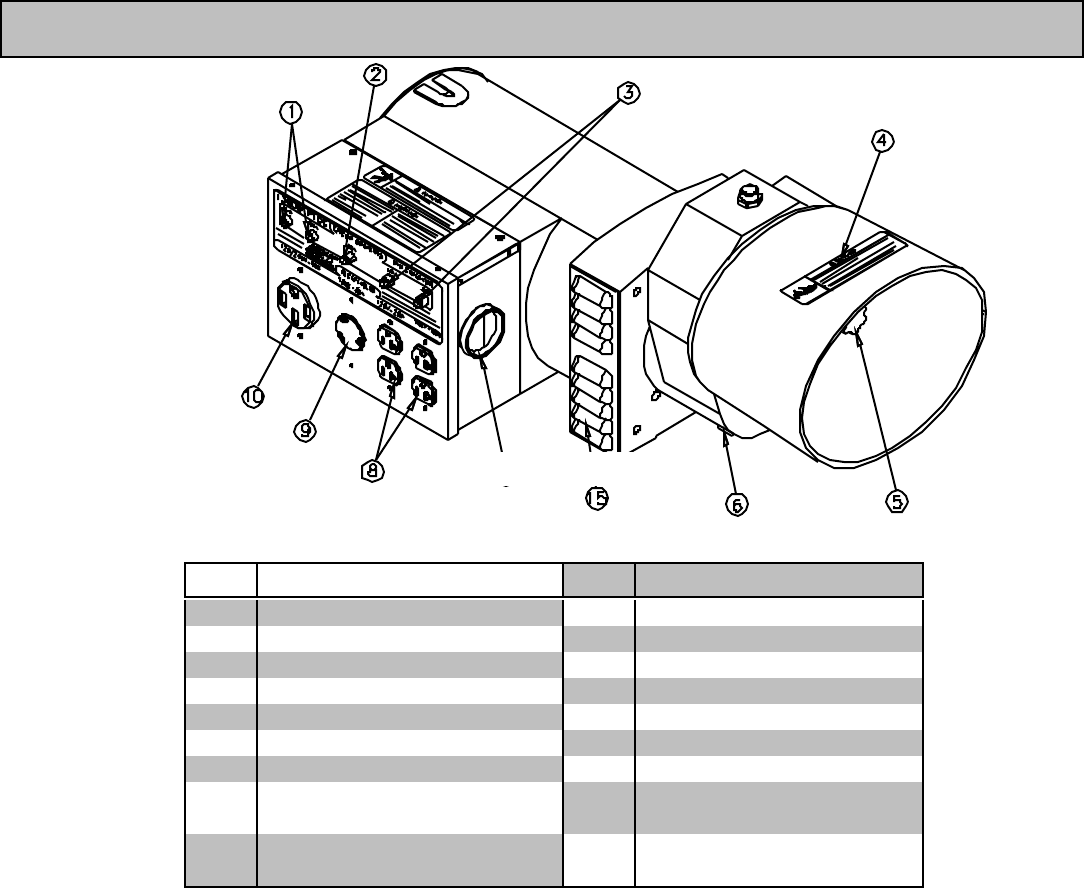

Figure 1 (Ref. 1-10)
