PAGE 24 — DCA20SPXU2 SERVPRO
®
OUTPUT TERMINAL PANEL FAMILIARIZATION
Loads can be connected to the generator by the Output
or the convenience receptacles (Figure 12).
Make sure to read the operation manual before attempting
to connect a load to the generator.
To protect the output terminals from overload, a 3-pole,
90A circuit breaker is provided. Make sure to switch
circuit breakers to the OFF position prior to starting
the engine.

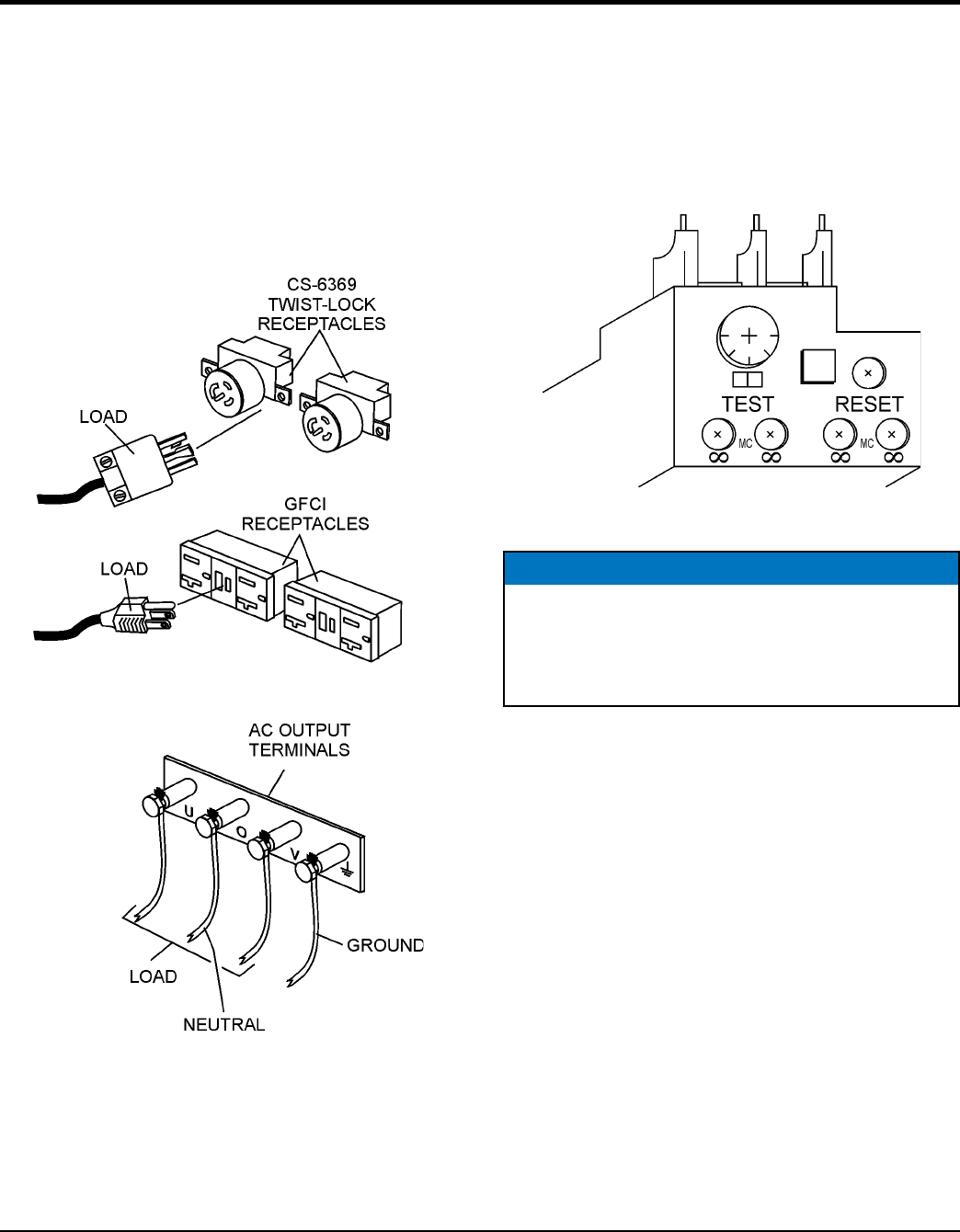

Figure 12. Connecting Loads
An (Figure 13) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the on the over
current relay must be pressed. The over current relay is
located in the control box.
Figure 13. Over Current Relay
NOTICE
When connecting a load to the generator
make sure the load has an ON/OFF switch.
use the circuit breakers on the generator as a method
of turning the load ON and OFF.
.
