Swing Mechanism 225D LC
Swing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.3 rpm
Swing Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50,662 lb.-ft. (68 900 Nm)
Ground Pressure
Triple Semi-Grouser Shoes
28 in. (700 mm) . . . . . . . . . . . . . . . . . . . . . . . 6.24 psi (43.0 kPa)
32 in. (800 mm) . . . . . . . . . . . . . . . . . . . . . . . 5.51 psi (38.0 kPa)
Serviceability
Refill Capacities
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 gal. (320.0 L)
Cooling System . . . . . . . . . . . . . . . . . . . . . . . 28 qt. (26.0 L)
Engine Oil with Filter . . . . . . . . . . . . . . . . . . . 24.3 qt. (23.0 L)
Hydraulic Tank . . . . . . . . . . . . . . . . . . . . . . . . 33 gal. (123.0 L)
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 60.8 gal. (230.0 L)
Gearbox
Propel (each) . . . . . . . . . . . . . . . . . . . . . . 7.2 qt. (6.8 L)
Swing. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.3 qt. (6.9 L)
Pump Drive . . . . . . . . . . . . . . . . . . . . . . . 1.1 qt. (1.0 L)
Operating Weights
With Full Fuel Tank; 175-lb. (79 kg) Operator;
42-in. (1067 mm), 1.09-cu.-yd. (0.83 m
3
),
1,731-lb. (721 kg) Heavy-Duty Bucket;
9-ft. 7-in. (2.91 m) Arm; 16,710-lb. (7586 kg)
Counterweight; and 32-in. (800 mm) Triple
Semi-Grouser Shoes . . . . . . . . . . . . . . . . . . . 53,936 lb. (24 487 kg)
Optional Components
Undercarriage with Triple Semi-Grouser Shoes
28 in. (700 mm) . . . . . . . . . . . . . . . . . . . . . . . 17,155 lb. (7788 kg)
32 in. (800 mm) . . . . . . . . . . . . . . . . . . . . . . . 17,805 lb. (8083 kg)
Upperstructure with Full Fuel Tank (less front
attachments and counterweight) . . . . . . . . . . 10,845 lb. (4924 kg)
One-Piece Boom (with arm cylinder) . . . . . . . . . . 3,890 lb. (1766 kg)
Arm with Bucket Cylinder and Linkage
7 ft. 11 in. (2.42 m) . . . . . . . . . . . . . . . . . . . . 2,045 lb. (928 kg)
9 ft. 7 in. (2.91 m) . . . . . . . . . . . . . . . . . . . . . 2,180 lb. (990 kg)
Boom Lift Cylinders (2) Total Weight . . . . . . . . . . . 749 lb. (340 kg)
42-in. (1067 mm), 1.09-cu.-yd. (0.83 m
3
)
Heavy-Duty Bucket . . . . . . . . . . . . . . . . . . . . . 1,590 lb. (722 kg)
Counterweight (standard) . . . . . . . . . . . . . . . . . . . 16,710 lb. (7586 kg)
Operating Dimensions
Arm Length Arm Length
7 ft. 11 in. (2.42 m) 9 ft. 7 in. (2.91 m)
Arm Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27,877 lb. (124.0 kN) 22,924 lb. (102.0 kN)
Bucket Digging Force . . . . . . . . . . . . . . . . . . . . . . 29,099 lb. (129.4 kN) 29,099 lb. (129.4 kN)
Lifting Capacity Over Front at Ground Level
20-ft. (6.1 m) Reach with Power Boost . . . . . . 14,533 lb. (6598 kg) 14,248 lb. (6469 kg)
A Maximum Reach . . . . . . . . . . . . . . . . . . . . . . 31 ft. 3 in. (9.52 m) 32 ft. 10 in. (10.01 m)
A' Maximum Reach at Ground Level . . . . . . . . . 30 ft. 7 in. (9.32 m) 32 ft. 3 in. (9.83 m)
B Maximum Digging Depth . . . . . . . . . . . . . . . 20 ft. 5 in. (6.21 m) 22 ft. 0 in. (6.70 m)
B' Maximum Digging Depth at 8-ft. (2.44 m)
Flat Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ft. 7 in. (5.96 m) 21 ft. 4 in. (6.50 m)
C Maximum Cutting Height . . . . . . . . . . . . . . . 34 ft. 8 in. (10.56 m) 36 ft. 0 in. (10.98 m)
D Maximum Dumping Height . . . . . . . . . . . . . . 25 ft. 1 in. (7.64 m) 26 ft. 5 in. (8.05 m)
E Minimum Swing Radius . . . . . . . . . . . . . . . . 9 ft. 0 in. (2.74 m) 7 ft. 9 in. (2.37 m)
F Maximum Vertical Wall . . . . . . . . . . . . . . . . . 17 ft. 2 in. (5.23 m) 19 ft. 5 in. (5.92 m)
G Tail Swing Radius . . . . . . . . . . . . . . . . . . . . . 5 ft. 6 in. (1.68 m) 5 ft. 6 in. (1.68 m)

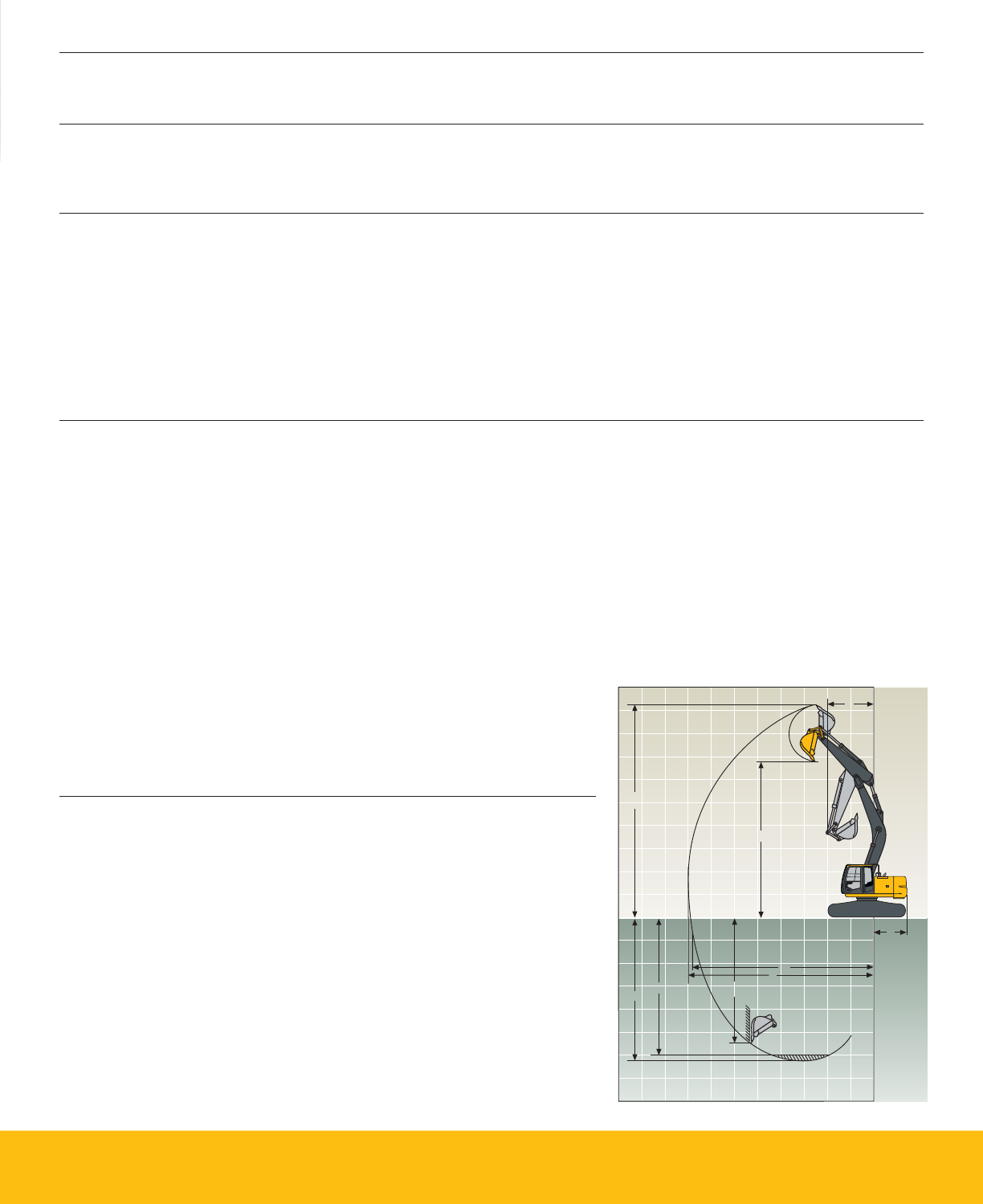

CENTERLINE OF SWING
E
D
C
F
G
GROUND LINE
A'
A
B'
B
e 18 DKAX135D225D Page 19
