Buckets 135D
A full line of buckets is offered to meet a wide variety of applications. The buckets have an adjustable bushing for side clearance, with the exception of the ditching bucket.
Tooth selection includes either the John Deere Fanggs
®
, Standard, Tiger, Twin Tiger, Abrasion panel, or Flare tooth, or the ESCO (Vertalok) Standard, Tiger, Twin Tiger, or Flare
tooth. Replaceable cutting edges are available through John Deere parts. Optional side cutters add 6 inches (150 mm) to bucket widths. Capacities are SAE heaped ratings.
Bucket Bucket Bucket Arm Dig Force Arm Dig Force Bucket
Type Bucket Width Capacity* Weight Dig Force 8 ft. 3 in. (2.52 m) 9 ft. 11 in. (3.01 m) Tip Radius No. Teeth
in. mm cu. yd. m
3
lb. kg lb. kN lb. kN lb. kN in. mm
General-Purpose 24 610 0.50 0.38 899 408 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 4
Plate Lip 30 762 0.66 0.50 1,030 468 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 4
36 914 0.83 0.63 1,173 533 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 5
42 1065 1.01 0.77 1,304 592 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 5
Heavy-Duty 24 610 0.48 0.37 1,014 460 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 4
Plate Lip 30 760 0.65 0.50 1,150 522 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 4
36 915 0.81 0.62 1,297 589 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 5
42 1067 0.99 0.76 1,390 631 20,751 92.3 14,310 63.7 12,823 57.0 52.27 1328 5
Ditching 60 1500 0.83 0.63 1,007 457 20,751 92.3 16,002 71.2 14,149 62.9 36.25 921 0
*All capacities are SAE heaped ratings and with side cutters.

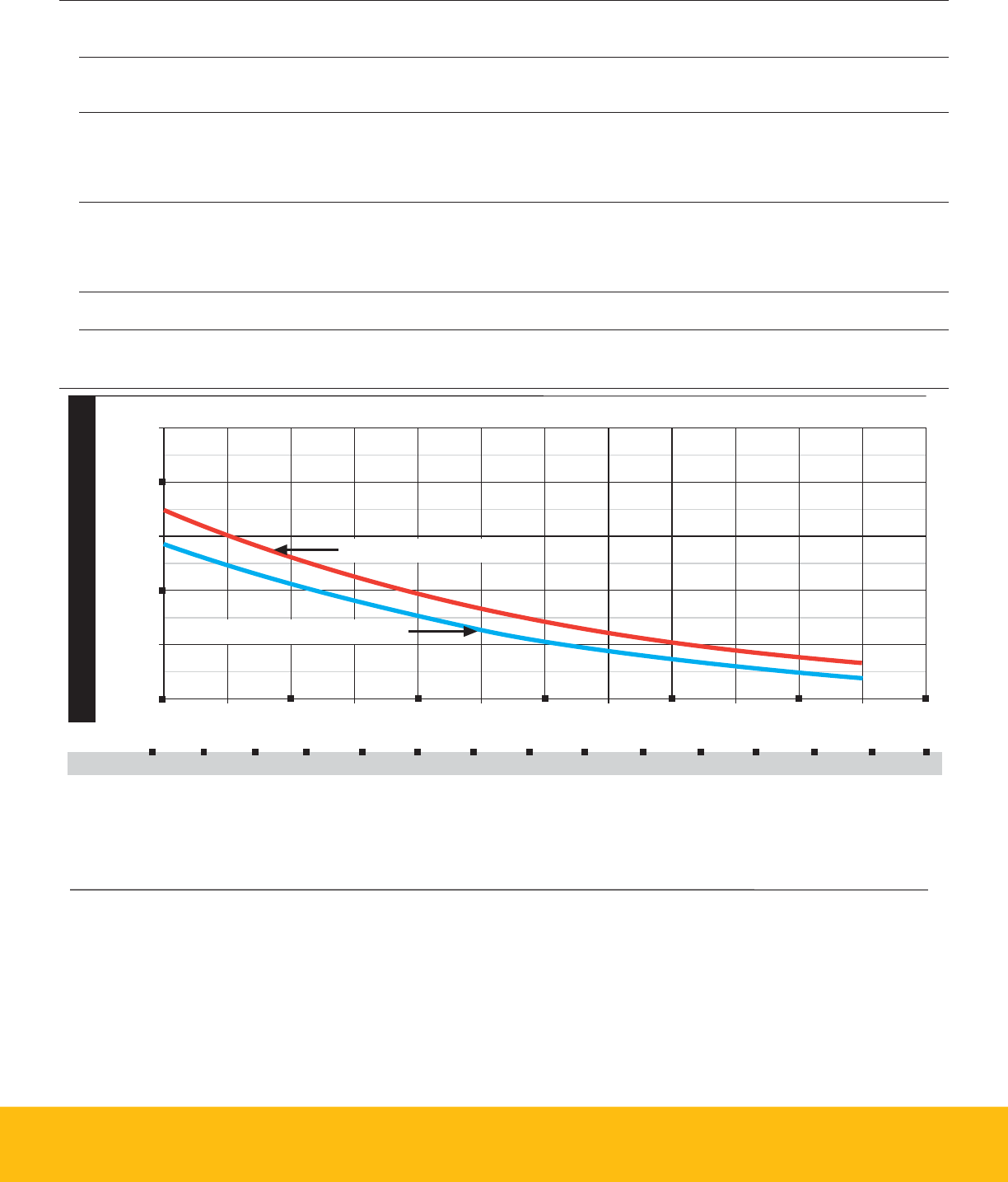

Bucket Selection Guide*
1.50
(1.2)
1.00
(0.8)
2,000 2,200 2,600 3,200
lb./cu. yd.
kg/m
3
BUCKET SIZE cu. yd. (m
3
)
1,600 3,400
0.50
(0.4)
0.75
(0.6)
1.25
(1.0)
1.75
(1.3)
1,200 1,400 1,800 2,400 2,800 3,000 3,600
Wet Peat
Topsoil
Coal
Caliche
Shale
Dry Sand
Dry Clay
Limestone
Wet Earth
Wet Clay, Granite
Moist Sand
Wet Sand
Wet Sand, Gravel
1300
Contact your John Deere dealer for optimum bucket and attachment selections. These recommendations are for general conditions and average use. Does not include optional
equipment such as thumbs or couplers. Larger buckets may be possible when using light materials, for flat and level operations, less compacted materials, and volume loading
applications such as mass excavation applications in ideal conditions. Smaller buckets are recommended for adverse conditions such as off-level applications, rocks, and uneven
surfaces. Bucket capacity indicated is SAE heaped.
*
700 800 900 1000 1100 1200
2000
1400 1500 1600 1700 1800 1900
2100
Deere 8-ft. 3-in. (2.52 m) Arm
Deere 9-ft. 11-in. (3.01 m) Arm
