- 28 -

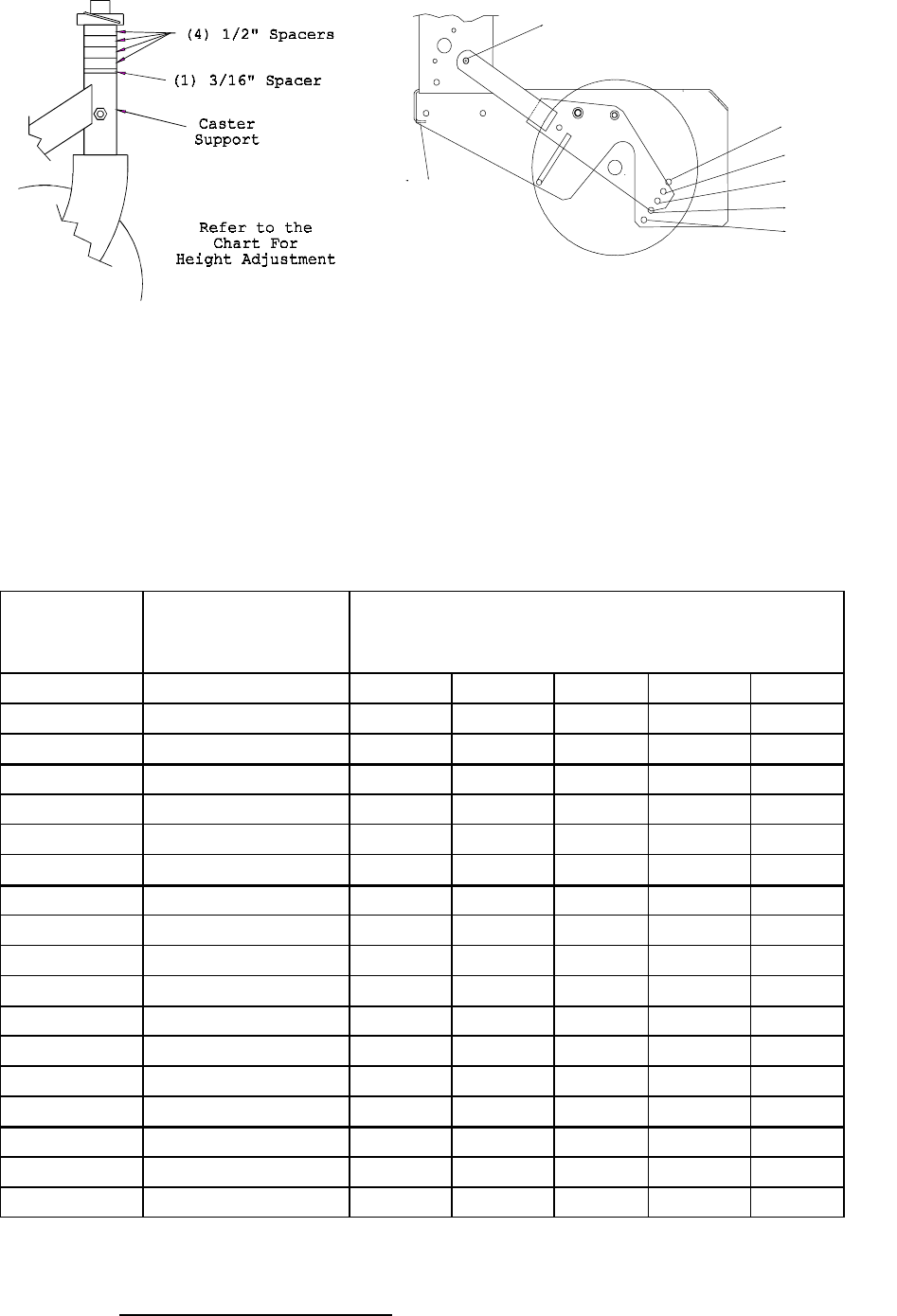

FIG. 15 FIG. 16
CASTER HEIGHT ADJUSTMENT AXLE HEIGHT ADJUSTMENT
These models have five (5) axle positions; four (4) 1/2" caster spacers; one (1) 3/16" caster
spacer, and four (4) blade spacers.
NOTE: The axle positions are in 1/2" increments and the large caster spacers are
1/2" thick. Therefore, by adjusting the same number of 1/2" caster spacers as axle
hole positions the blades will retain the same front-to-back tip (rake).
CUTTING HEIGHT ADJUSTMENT (1" to 4 1/4")
AXLE
POSITION
(FIG. 10)
NO. OF SPACERS
BELOW CASTER
1/2" 3/16"
NUMBER OF 1/4" BLADE SPACERS
BELOW
SPINDLE
4 3 2 1 0
A 0 0 1" 1 1/4" 1 1/2" 1 3/4" 2"
A 0 1 1 1/8" 1 3/8" 1 5/8" 1 7/8" 2 1/8"
A 1 0 1 3/8" 1 5/8" 1 7/8" 2 1/8" 2 3/8"
B 0 1 1 3/8" 1 5/8" 1 7/8" 2 1/8" 2 3/8"
B 1 0 1 5/8" 1 7/8" 2 1/8" 2 3/8" 2 5/8"
B 1 1 1 3/4" 2" 2 1/4" 2 1/2" 2 3/4"
B 2 0 2" 2 1/4" 2 1/2" 2 3/4" 3"
C 1 1 1 7/8" 2 1/8" 2 3/8" 2 5/8" 2 7/8"
C 2 0 2 1/8" 2 3/8" 2 5/8" 2 7/8" 3 1/8"
C 2 1 2 1/4" 2 1/2" 2 3/4" 3" 3 1/4"
C 3 0 2 ½" 2 3/4" 3" 3 1/4" 3 1/2"
D 2 1 2 3/8" 2 5/8" 2 7/8" 3 1/8" 3 3/8"
D 3 0 2 1/2" 2 3/4" 3" 3 1/4" 3 1/2"
D 3 1 2 3/4" 3" 3 1/4" 3 1/2" 3 3/4"
D 4 0 3" 3 1/4" 3 1/2" 3 3/4" 4"
E 3 1 2 7/8" 3 1/8" 3 3/8" 3 5/8" 3 7/8"
E 4 0 3 1/8" 3 3/8" 3 5/8" 3 7/8" 4 1/8"
E 4 1 3 1/4" 3 1/2" 3 3/4" 4" 4 1/4"
IMPORTANT: To achieve the highest quality of cut, the blades should be level
with the ground, or tipped slightly down at the front.
5.2.3 Transmission belt adjustment.
a) Stop engine and remove spark plug wire(s).
Pos. A
Pos. B
Pos. C
Pos. D
Pos. E
A
xle Pivot Bolt
Axle
Adjustment
Holes
Place Jack
Here
Axle Adjustment Holes are
actually in the side of the rear
deck.
