Exmark LHP4820KC Lawn Mower User Manual



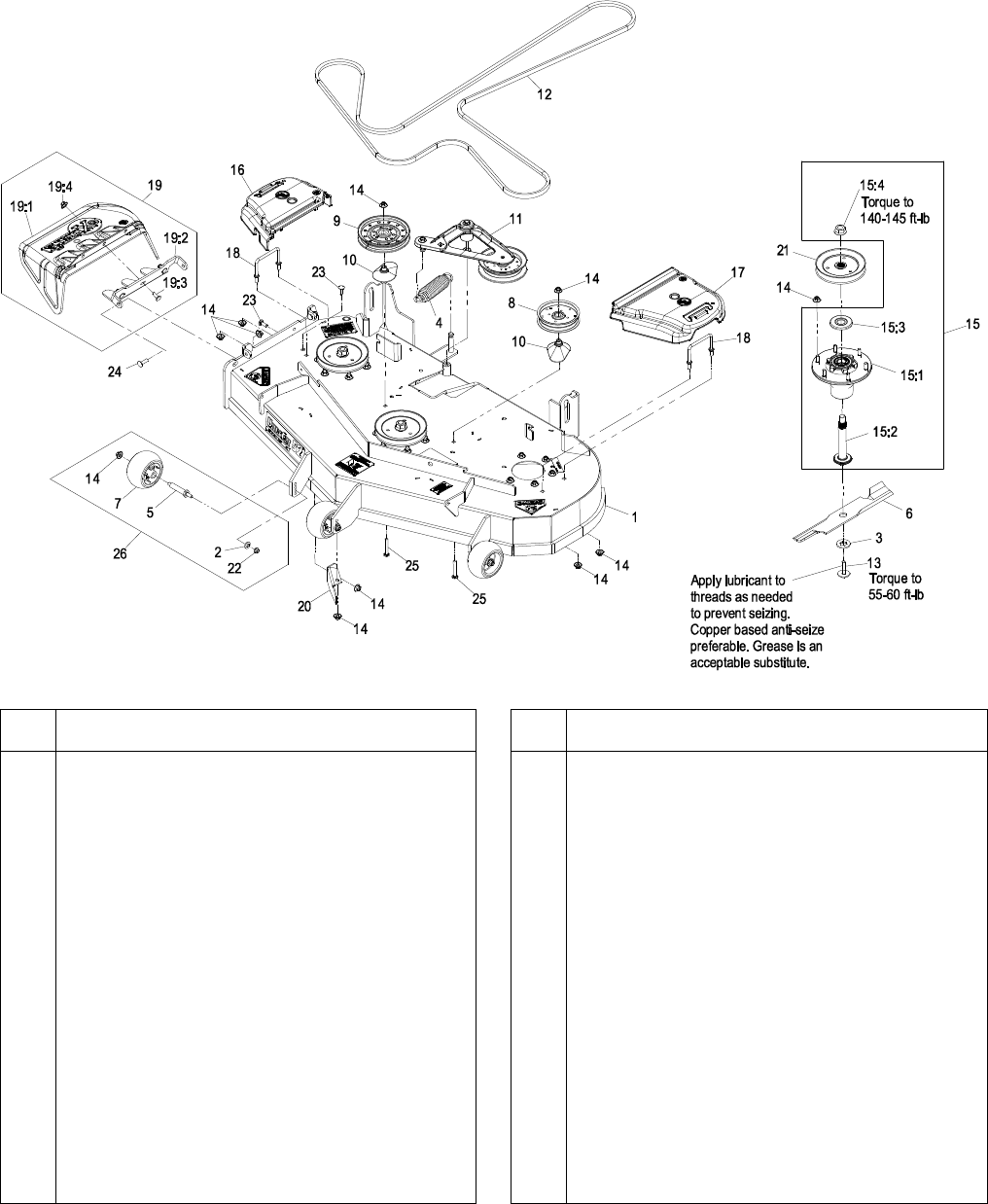

52” DECK GROUP
-5-
Item Part No. Description Qty.
1 116-1984 Asm, 524 Deck With Decals ................. 1
2 98-5975 Washer, Spring Disc 3/8 ....................... 3
3 109-7429 Washer, Blade Drive ............................. 3
4 116-0133 Extension-Spring ................................... 1
5 99-2842 Spacer ................................................... 3
6 103-6402 Blade-Notched ...................................... 3
103-6392 Blade, Mulching .................................... 3
103-6387 Blade, Low Lift ...................................... 3
103-6382 Blade, Solid ........................................... 3
103-6397 Blade, Extreme ..................................... 3
7 1-603299 Roller-Scalp, Anti .................................. 3
8 1-613098 Pulley-Idler ............................................ 1
10 109-2872 Spacer-Pulley ........................................ 2
11 109-2883 Asm, Deck Idler ..................................... 1
12 116-1966 Belt, V-B X 186.00" ............................... 1
13 116-0005 Bolt, Blade SEM .................................... 3
14 109-6658 Nut, Nyloc 3/8-16 Flg ............................ 31
15 116-1384 Asm, Cutter Housing Complete ............ 3
15:1 116-0924 Asm, Cutter Housing ............................. 1
Item Part No. Description Qty.
15:2 116-0381 Spindle ..................................................
.
1
15:3 116-1286 Guard, Top ...........................................
.
1
15:4 104-0753 Nut, Flange ...........................................
.
1
16 109-6935 Cover-Belt, RH .....................................
.
1
17 109-6936 Cover-Belt, LH ......................................
.
1
18 109-6982 Wireform-Cover ....................................
.
2
19 109-7188 Asm, Discharge Chute ..........................
.
1
19:1 109-2738 Chute, Discharge ..................................
.
1
19:2 109-8675-01 Bracket, Discharge Chute .....................
.
1
19:3 3231-22 Bolt, Carriage 3/8-16 x 1 .......................
.
3
19:4 109-6658 Nut, Nyloc 3/8-16 Flg ............................
.
3
20 109-9915-01 Baffle, Discharge 52/60 ........................
.
1
21 116-0675 Sheave, Blade Drive 6.50 .....................
.
3
22 3290-357 Nut, Whizlock 3/8-16 ............................
.
3
23 3231-22 Bolt, Carriage 3/8-16 x 1 .......................
.
2
24 3231-28 Bolt, Carriage 3/8-16 x 1 1/4 .................
.
2
25 3231-44 Bolt, Carriage 3/8-16 x 2 1/2 .................
.
2
26 103-4051 Kit, Anti-Scalp Roller .............................
.
3
27 116-1968 Asm, Complete Deck ............................
.
1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.
