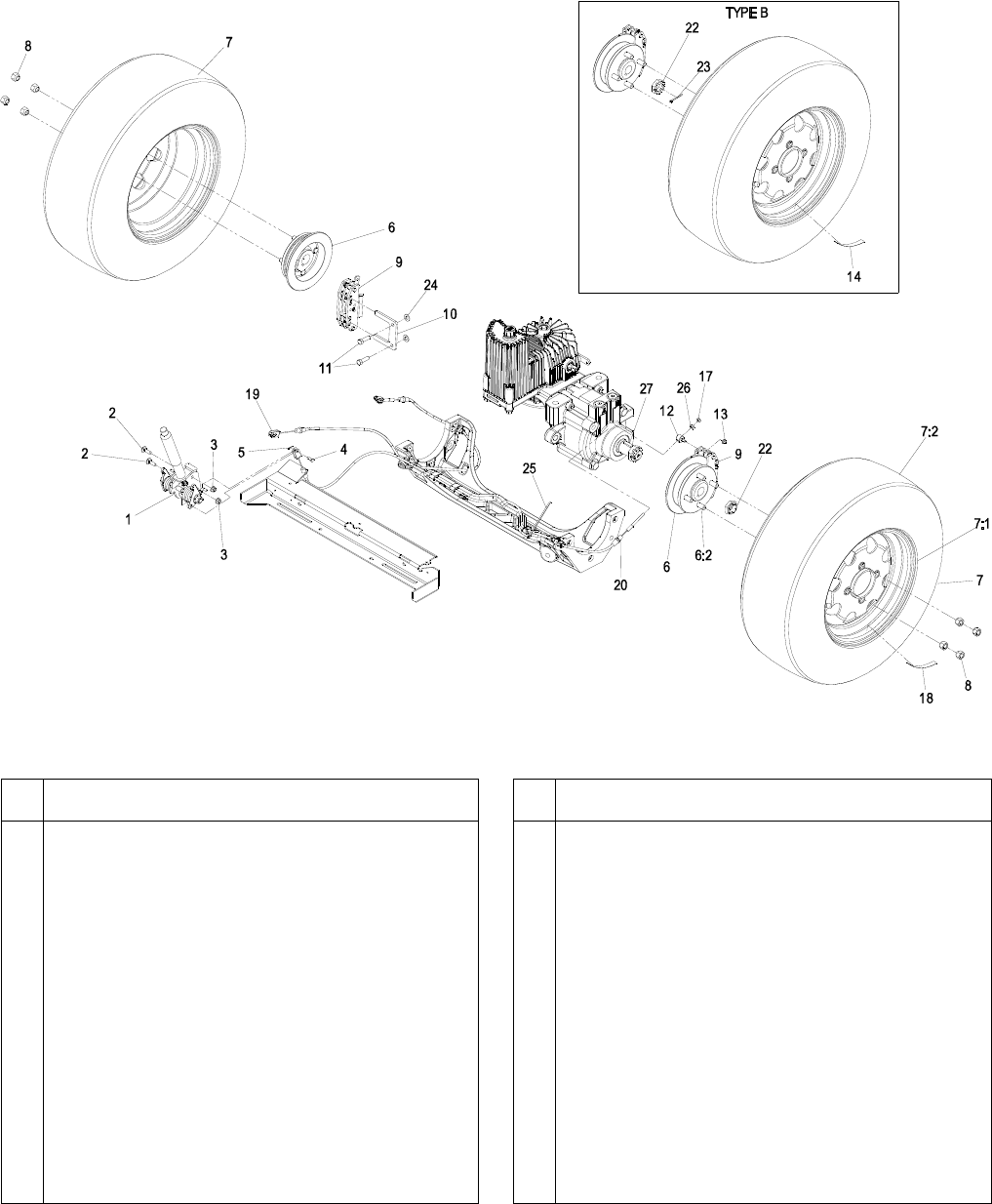

PARK BRAKE GROUP
-17-
Item Part No. Description Qty.
1 116-1878 Asm, Brake Handle ................................ 1
2 3230-2 Bolt, Carriage 5/16-18 x 1 ....................... 2
3 104-8300 Nut, Nyloc 5/16-18 Flg ............................ 2
4 60-1730 Pin-Clevis ...............................................2
5 3272-1 Pin, Cotter 1/16 x 1/2 .............................. 2
6 117-6163 Asm, Wheel Hub And Stud ..................... 2
6:2 1-633926 Stud-Wheel ............................................. 4
7 116-1940 Asm, Wheel & Tire (48”) ......................... 2
116-1941 Asm, Wheel & Tire (52”) ......................... 2
116-3138 Asm, Wheel & Tire (60”) ......................... 2
7:1 109-3645 Wheel (48”) ............................................. 1
109-2875 Wheel (52”) ............................................. 1
109-2871 Wheel (60”) ............................................. 1
7:2 116-1948 Tire (48” & 52”) ....................................... 1
116-3139 Tire (60”) ................................................. 1
8 242-50 Nut, Lug 1/2-20 ....................................... 8
Item Part No. Description Qty.
9 109-2889 Caliper-Brake .........................................
.
2
10 109-0958 Plate, Brake Mount.................................
.
2
11 92-5727 Screw, HH 3/8-16 x 1 1/4 patch lock ......
.
4
12 112-8379 Swivel .....................................................
.
2
13 104-7201 Nut, Nyloc 1/4-20 Flg .............................
.
2
14 116-0165 Decal, Hub, Wheel .................................
.
2
17 3296-13 Nut, Nyloc 1/4-28 ...................................
.
2
18 116-2643 Decal, Hub, Wheel .................................
.
2
19 115-3584 Cable ......................................................
.
1
20 115-3585 Cable ......................................................
.
1
22 1-809036 Nut, Slotted 1-20 ....................................
.
2
23 1-806800 Pin, Cotter 9/64 x 1 1/2 ..........................
.
2
24 3256-24 Washer, 3/8 SAE....................................
.
4
25 116-0940 Tie-Cable ................................................
.
1
26 3219-1 Nut, Hex 1/4-28 ......................................
.
2
27 3257-42 Key, Woodruff ........................................
.
2
