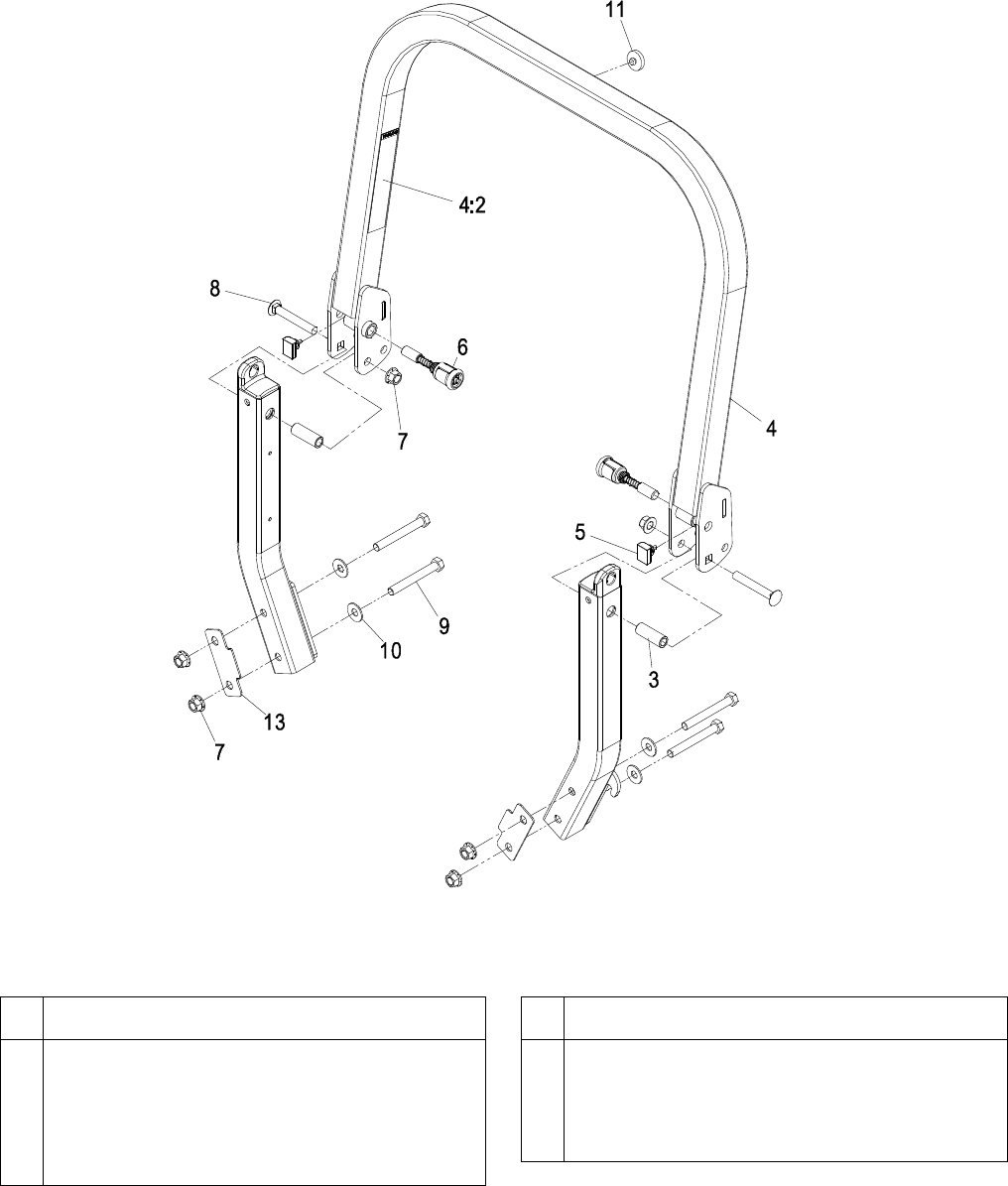

ROPS ASSEMBLY – 116-2882
-11-
Item Part No. Description Qty.
3 109-6653 Spacer .................................................... 2
4 116-0019 Asm, Rops Upper W/Decal .................... 1
4:2 107-2102 Decal, Warning, Folding Rops ................ 1
5 109-5337 Bumper, Rops......................................... 2
6 116-0104 Asm, Spring Pin ...................................... 2
7 99-5107 Nut, Lock 1/2-13 ..................................... 6
Item Part No. Description Qty.
8 3233-10 Bolt, Carriage 1/2-13 x 3 1/2 ..................
.
2
9 325-17 Screw, HH 1/2-13 x 4 .............................
.
4
10 109-9505 Washer, Spring Disc 1/2 ........................
.
4
11 109-9233 Bumper, Rubber Push-In .......................
.
1
13 116-0960 Spacer ....................................................
.
2
