Exmark LHP4820KC Lawn Mower User Manual



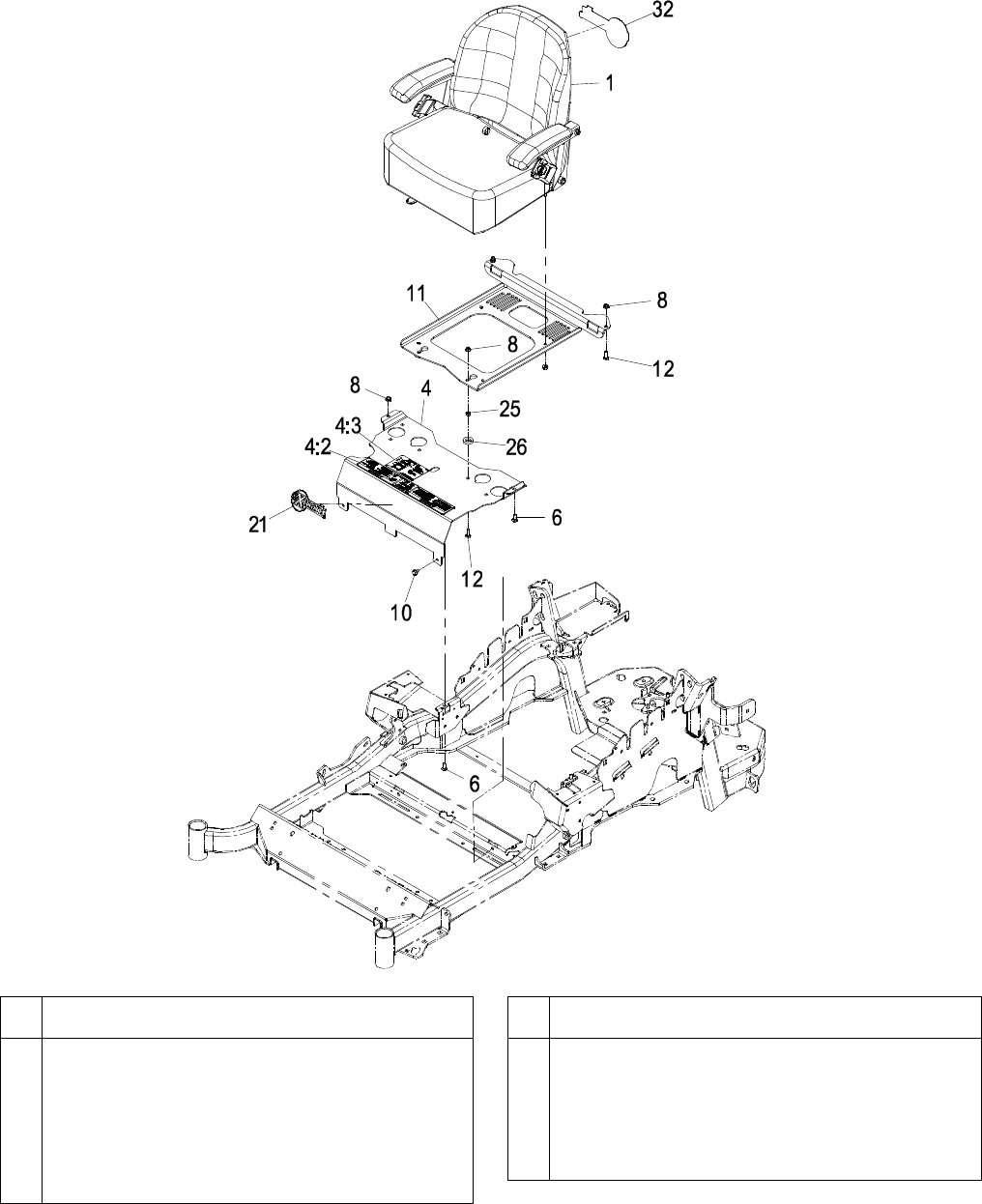

SEAT GROUP
-19-
Item Part No. Description Qty.
1 116-3380 Seat, Exmark .......................................... 1
4 116-2323 Mount, Seat W/Decals ............................ 1
4:2 109-7069 Decal, Console ....................................... 1
4:3 116-0211 Decal, Service Aid .................................. 1
6 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck 2
8 104-8300 Nut, Nyloc 5/16-18 Flg ............................ 10
10 9266934 Screw, HWH 5/16 x 1/2 TF ..................... 2
Item Part No. Description Qty.
11 116-0192-03 Plate, Seat Support ................................
.
1
12 3230-22 Bolt, Carriage 5/16-18 x 1 Sp .................
.
4
21 103-2883 Decal, Exmark Logo ...............................
.
1
25 3217-6 Nut, Hex 5/16-18 ....................................
.
2
26 1-323539 Spacer, Blade Drive ...............................
.
2
32 103-2882 Decal, Exmark Logo ...............................
.
1
Exmark black touch up spray paint – gloss black
