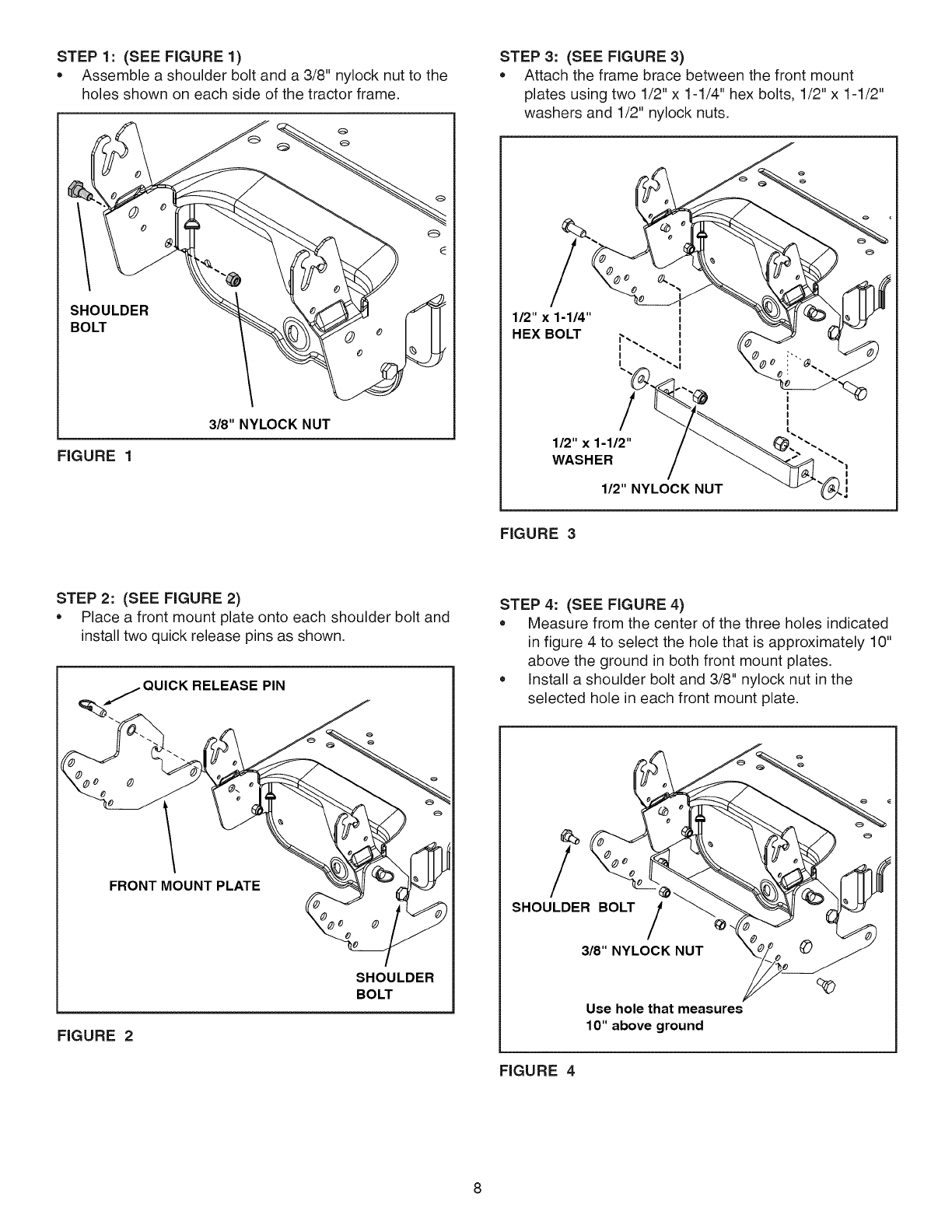

STEP1: (SEEFIGURE1)
• Assemble a shoulder bolt and a 3/8" nylock nut to the
holes shown on each side of the tractor frame.
SHOULDER
BOLT
FIGURE 1
3/8" NYLOCK NUT
STEP 3: (SEE FIGURE 3)
• Attach the frame brace between the front mount
plates using two 1/2"x 1-1/4" hex bolts, 1/2" x 1-1/2"
washers and 1/2" nylock nuts.
1/2" x 1-1/4"
HEX BOLT
/
1/2" x 1-112"
WASHER
1/2" NYLOCK NUT
I
I
I
I
cJ
FIGURE 3
STEP 2: (SEE FIGURE 2)
• Place a front mount plate onto each shoulder bolt and
install two quick release pins as shown.
_j QUICK RELEASE PIN
FRONT MOUNT PLATE
SHOULDER
BOLT
FIGURE 2
STEP 4: (SEE FIGURE 4)
• Measure from the center of the three holes indicated
in figure 4 to select the hole that is approximately 10"
above the ground in both front mount plates.
• Install a shoulder bolt and 3/8" nylock nut in the
selected hole in each front mount plate.
/
SHOULDER BOLT /
318"NYLOCK NUT
Use hole that measures
10" above ground
FIGURE 4
