10. Position the new backplane as shown so that the hooks 1 on the chassis pass through the
corresponding holes in the new backplane. Then, press the backplane straight down until it is secured
in place by the small retaining studs on the chassis.

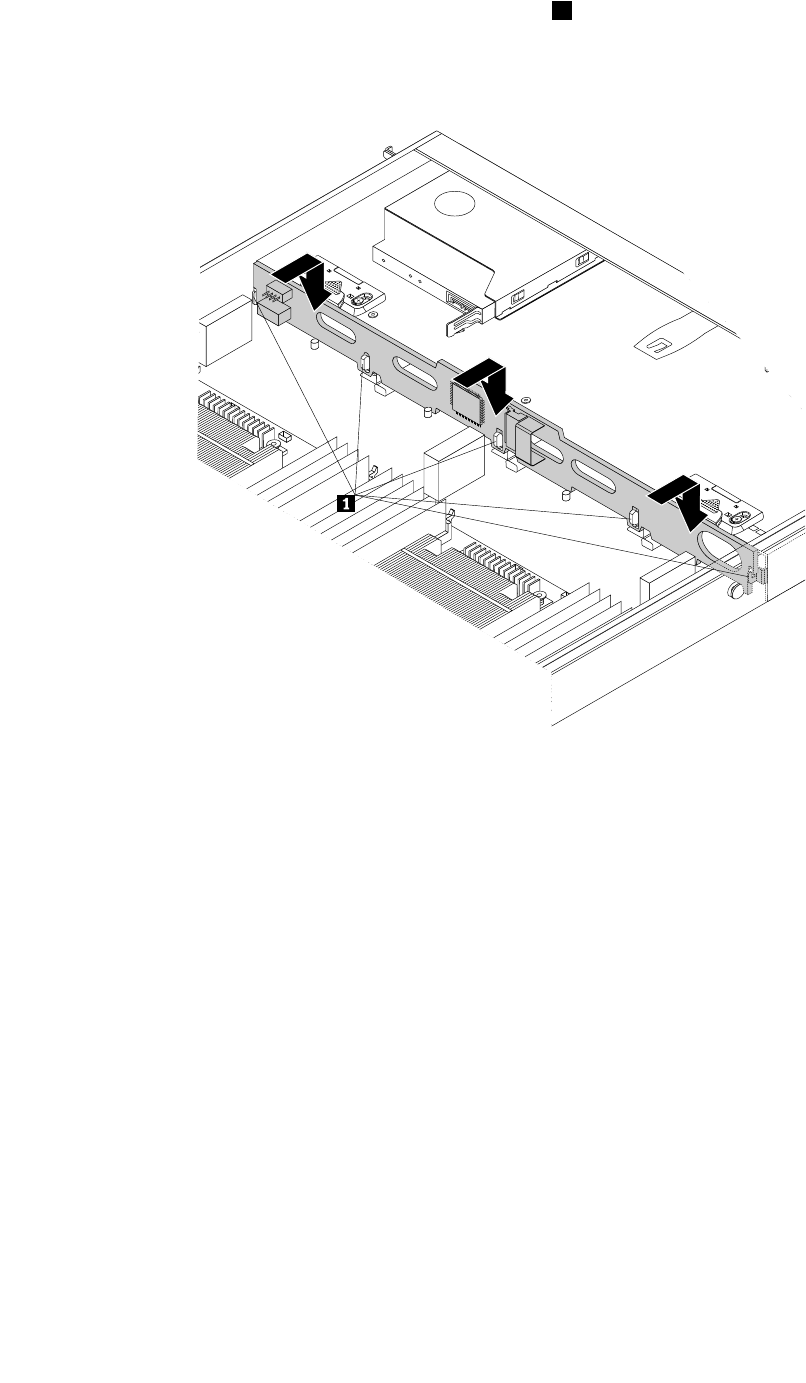

Figure105. Installing the hot-swap hard-disk-drive backplane
Chapter 6. Installing, removing, or replacing hardware 135
