Notes:
• Your hot-swap redundant power supply might look slightly different from the illustrations in this topic.
• Use any documentation that comes with the new hot-swap redundant power supply and follow those
instructions in addition to the instructions in this topic.
To install a hot-swap redundant power supply, do the following:
1. Touch the static-protective package that contains the new hot-swap redundant power supply to any
unpainted surface on the outside of the server. Then, take the new hot-swap redundant power supply
out of the package.
2. Note the orientation of the new hot-swap redundant power supply and then slide the new hot-swap
redundant power supply into the chassis until it snaps into position.
1
0
MGMT
ID

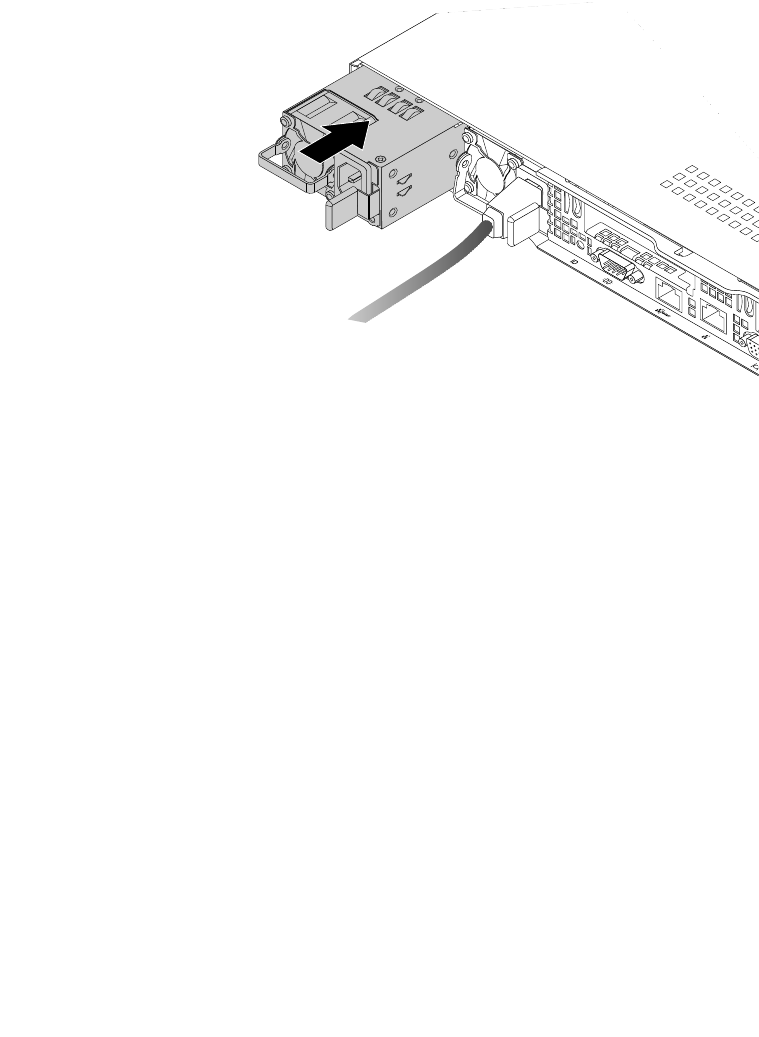

Figure61. Installing a hot-swap redundant power supply
Chapter 6. Installing, removing, or replacing hardware 101
