Note: If your server comes with one hot-swap power supply installed in the power supply bay 1 (the bay
number is marked on the rear of the chassis) and you are installing a hot-swap redundant power supply
to provide redundant power, you need to remove the shield that protects the power supply bay 2 rst
and save the shield for future use. Insert a nger into the hole in the metal shield, press the tab
1 in
the direction as shown, and then pull the shield out of the chassis.

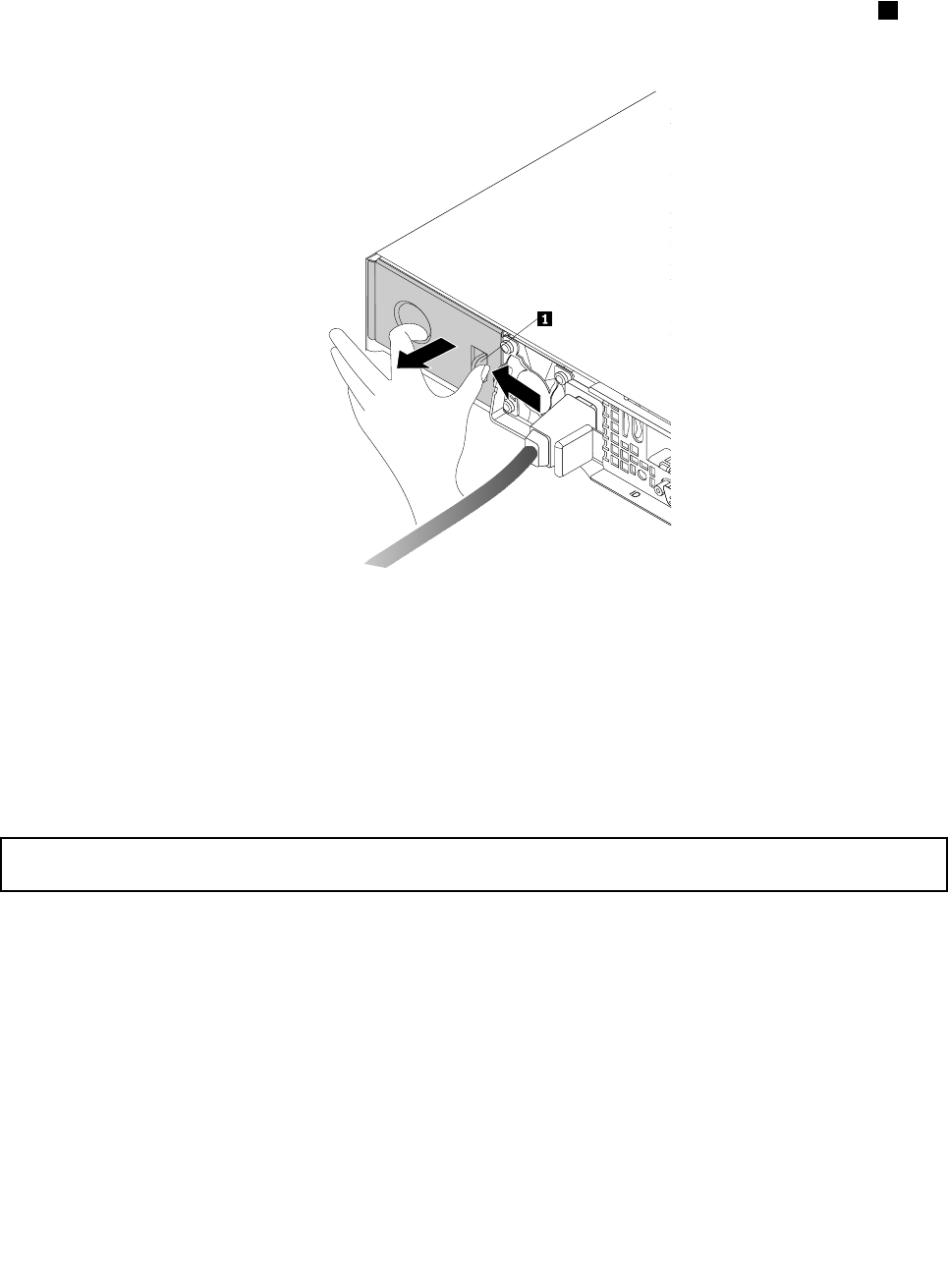

Figure62. Removing the shield
3. Connect the power cord to the power connector on the new hot-swap redundant power supply. Then,
check the status LED near the power connector. When the LED is lit in green, it indicates that the
hot-swap redundant power supply is working correctly. When the LED is lit in amber, it indicates that the
hot-swap redundant power supply is likely to fail or has failed. You need to reinstall or replace it.
Replacing a hot-swap redundant power supply
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii
and “Guidelines” on page 67.
This topic provides instructions on how to replace a hot-swap redundant power supply.
Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
Notes:
• Your hot-swap redundant power supply might look slightly different from the illustrations in this topic.
• Use any documentation that comes with the hot-swap redundant power supply and follow those
instructions in addition to the instructions in this topic.
